ASUS P8Z77-V LK2
1-19
Chapter 1
Chapter 1
Chapter 1
Chapter 1

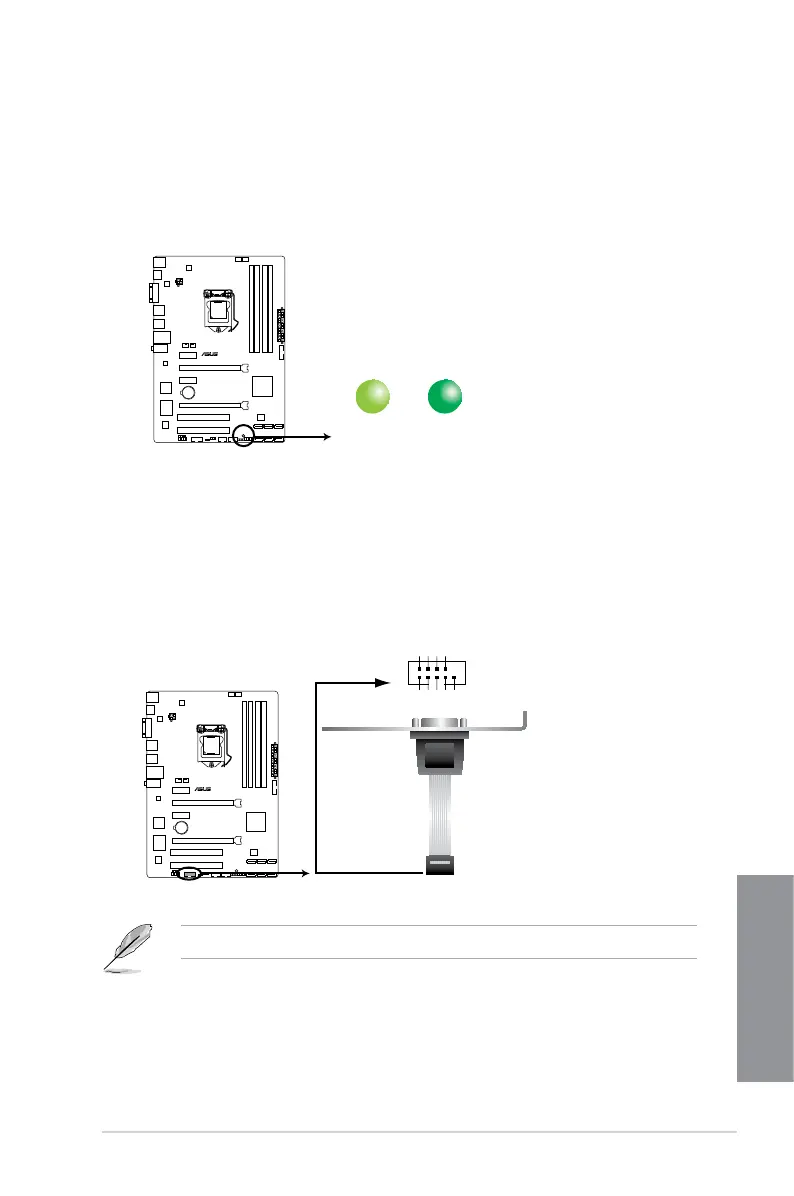

1.2.6 Onboard LED
1. Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
SB_PWR
ON
Standby Power Powered Off
OFF
P8Z77-V LK2
P8Z77-V LK2 Onboard LED
1.2.7 Internal connectors
1. Serial port connector (10-1 pin COM)
This connector is for a serial (COM) port. Connect the serial port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
The COM module is purchased separately.
P8Z77-V LK2
P8Z77-V LK2 Serial port (COM) connector
PIN 1
COM
DCD
TXD
GND
RTS
RI
RXD
DTR
DSR
CTS

Asus P8Z77-V LK2 Specifications

General

Chipset	Intel Z77
Socket	LGA 1155
Memory Slots	4 x DIMM
Max Memory	32 GB
Memory Type	DDR3
PCI Express x1	2
PCI Slots	3
SATA 6Gb/s	2
SATA 3Gb/s	4
RAID Support	RAID 0, 1, 5, 10
USB 3.0 Ports	4 (2 rear, 2 via header)
Form Factor	ATX
Memory Speed	1600/1333 MHz
PCI Express x16	2
USB 2.0 Ports	4 rear
LAN	Realtek 8111F
Audio	Realtek ALC892, 8-Channel High Definition Audio
Video Outputs	HDMI, DVI, VGA
Multi-GPU Support	AMD Quad-GPU CrossFireX Technology
