Asus P8Z77-V LK2 User Manual

2-12
Chapter 2: Basic installation
Chapter 2

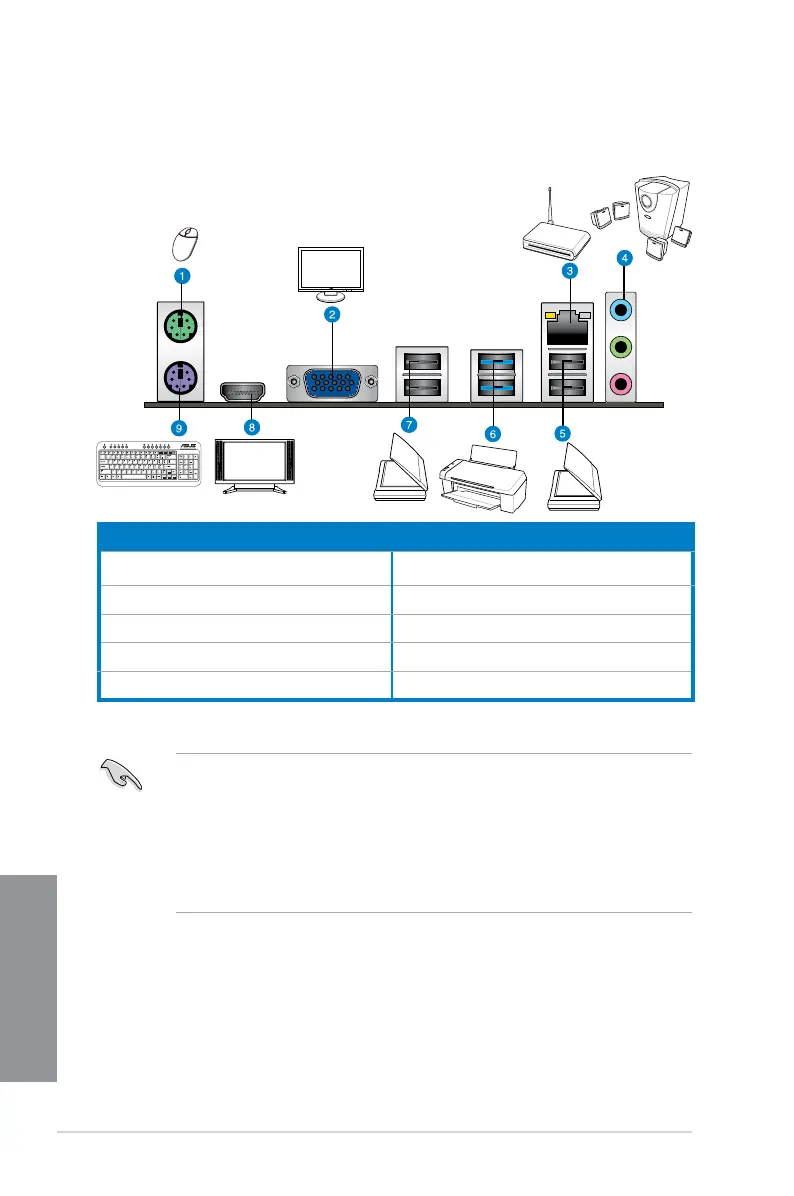

2.2 Motherboard rear and audio connections
2.2.1 Rear I/O connection
Rear panel connectors
1. PS/2 Mouse port 6. USB 3.0 ports 1 and 2
2. Video Graphics Adapter (VGA) port 7. USB 2.0 ports 3 and 4
3. Intel
®
LAN (RJ-45) port* 8. HDMI port
4. Audio I/O ports** 9. PS/2 Keyboard port
5. USB 2.0 ports 1 and 2
• Due to USB 3.0 controller limitations, USB 3.0 devices can only be used under a
Windows
®
OS environment and after USB 3.0 driver installation.
• USB 3.0 devices can only be used for data storage.
• We strong recommend that you connect USB 3.0 devices to USB 3.0 ports for a faster
and better performance from your USB 3.0 devices.
• This motherboard comes with multiple VGA outputs that feature desktop extension on
two monitors. You can connect two monitors to the onboard VGA and HDMI ports.
* and **: Refer to the tables on the next page for LAN port LED and audio port denitions.

Asus P8Z77-V LK2 Specifications

General

Chipset	Intel Z77
Socket	LGA 1155
Memory Slots	4 x DIMM
Max Memory	32 GB
Memory Type	DDR3
PCI Express x1	2
PCI Slots	3
SATA 6Gb/s	2
SATA 3Gb/s	4
RAID Support	RAID 0, 1, 5, 10
USB 3.0 Ports	4 (2 rear, 2 via header)
Form Factor	ATX
Memory Speed	1600/1333 MHz
PCI Express x16	2
USB 2.0 Ports	4 rear
LAN	Realtek 8111F
Audio	Realtek ALC892, 8-Channel High Definition Audio
Video Outputs	HDMI, DVI, VGA
Multi-GPU Support	AMD Quad-GPU CrossFireX Technology
