Asus P8Z77-V LK2 User Manual

Chapter 7: Multiple GPU support
7-2
Chapter 7

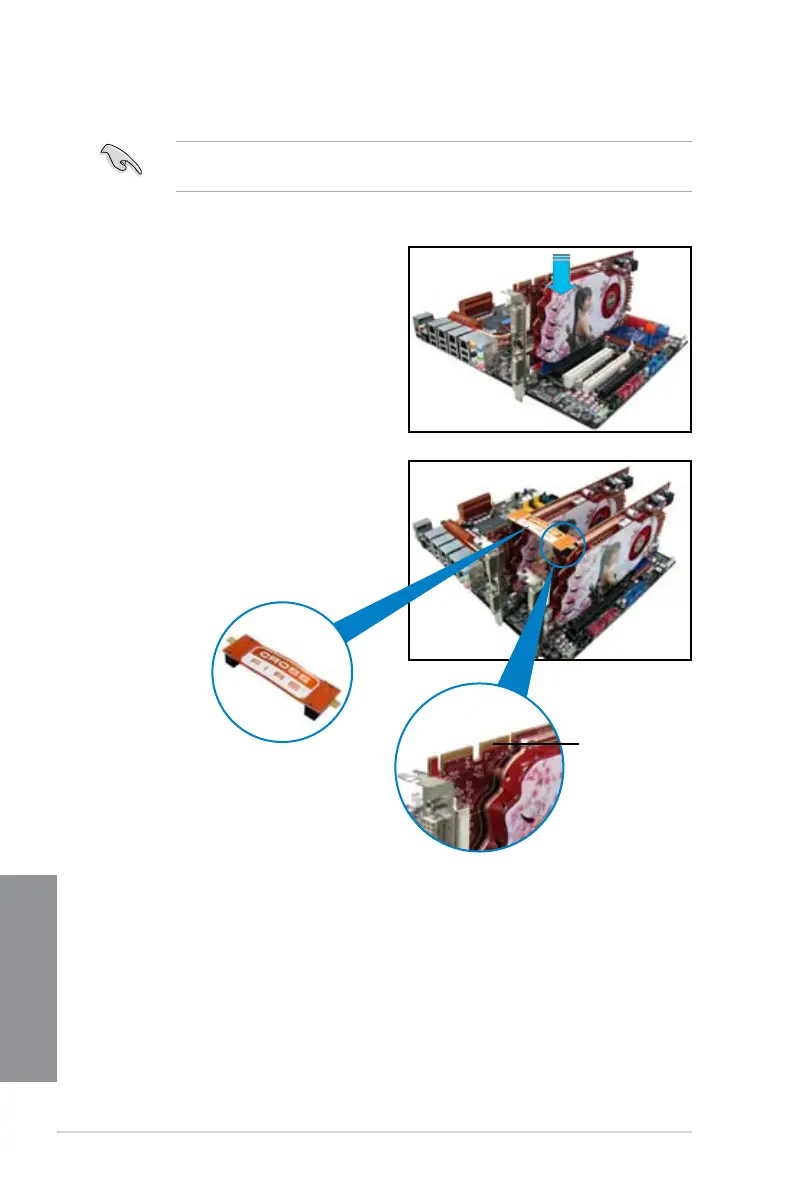

7.1.3 Installing two CrossFireX™ graphics cards
The following pictures are for reference only. The graphics cards and the motherboard
layout may vary with models, but the installation steps remain the same.
1. Prepare two CrossFireX-ready graphics cards.
2. Insert the two graphics card into the
PCIEX16 slots. If your motherboard
has more than two PCIEX16 slots,
refer to Chapter 1 in this user manual
for the locations of the PCIEX16 slots
recommended for multi-graphics card
installation.
3. Ensure that the cards are properly
seated on the slots.
Goldngers
CrossFireX bridge
(bundled with
graphics cards)
4. Align and rmly insert the CrossFireX
bridge connector to the goldngers on
each graphics card. Ensure that the
connector is rmly in place.

Asus P8Z77-V LK2 Specifications

General

Chipset	Intel Z77
Socket	LGA 1155
Memory Slots	4 x DIMM
Max Memory	32 GB
Memory Type	DDR3
PCI Express x1	2
PCI Slots	3
SATA 6Gb/s	2
SATA 3Gb/s	4
RAID Support	RAID 0, 1, 5, 10
USB 3.0 Ports	4 (2 rear, 2 via header)
Form Factor	ATX
Memory Speed	1600/1333 MHz
PCI Express x16	2
USB 2.0 Ports	4 rear
LAN	Realtek 8111F
Audio	Realtek ALC892, 8-Channel High Definition Audio
Video Outputs	HDMI, DVI, VGA
Multi-GPU Support	AMD Quad-GPU CrossFireX Technology
