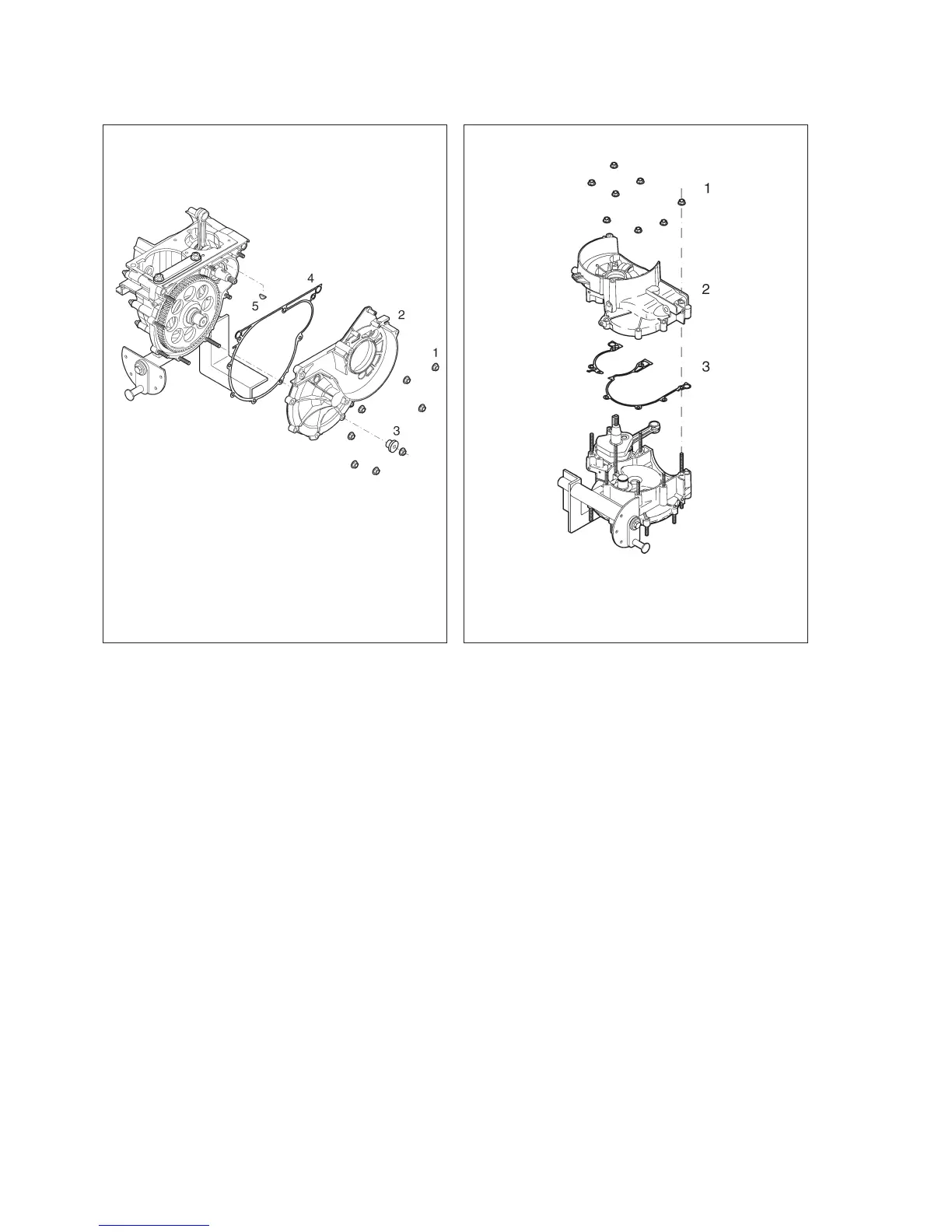

Dismantling of the transmission
cover
Remove the eight nuts (1).
Note the position of the supporting bush (3) for the
filter cover.
Place a flat-bladed screwdriver in one of the notches
that are present on both sides of the transmission
cover (2) and carefully lever off the cover.
Dismantle and discard the gasket (4).
Clean the sealing surfaces using a wooden or plastic
scraper.
Remove the Woodruff key (5), and always replace it
with a new one if it is scratched or damaged.
Dismantling of the fan side
crankcase
Remove the eight nuts (1).
Place a flat-bladed screwdriver in one of the notches
that are present on both sides of the crankcase half
and carefully lever off the cover.
Remove and discard the gasket (3).
Clean the sealing surfaces using a wooden or plastic
scraper.
24
Fig. 30 Fig. 31
