Dismantling and reassembly of
fuel filter

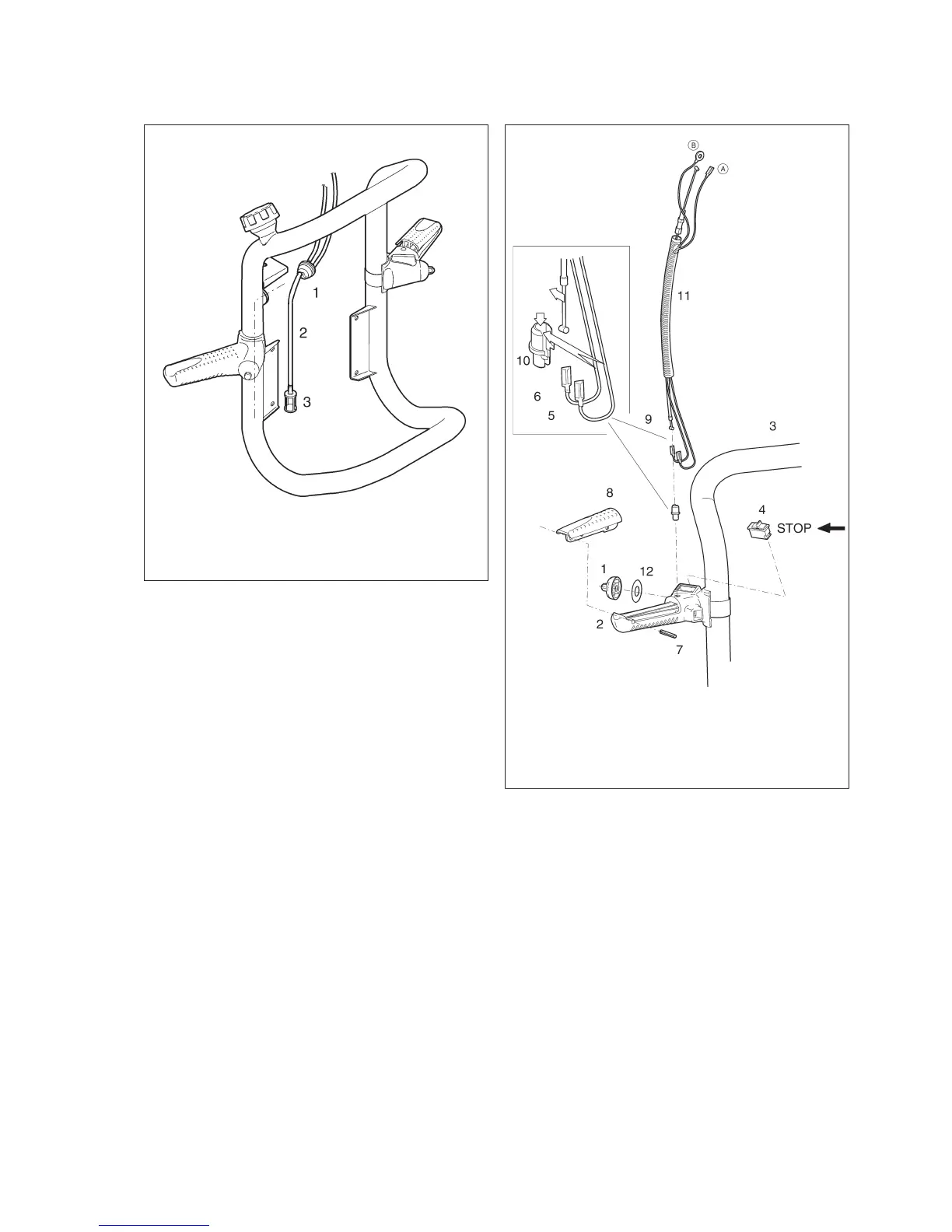

Remove the rubber grommet (1) from the tank and
pull out the fuel pipe (2) and the filter (3) from the
tank. Remove and replace the fuel filter.
Examine the fuel pipe (2); it must be replaced if it is
brittle or damaged.
Dismantling and reassembly of
throttle handle
Dismantling
Remove the handle locking nut (1) and washer (12)
and lift off the throttle handle (2) from the fuel tank (3).
Remove the stop button (4) from the handle using a
screwdriver. If it is damaged, it must be replaced.
Disconnect the two electrical wires (5) and (6) from
the stop button.
Use a suitable drift to tap out the spring pin (7).
Lift out the throttle lever (8) from the handle (2) and
disconnect the cable (9).
Remove the nipple (10) and pull out the cable (9)
and the electrical wires (5) and (6) from the handle.
Dismantle the cable (9) and the electrical wires (5)
and (6) from the protective sheath (11), examine
them for damage and replace if necessary.
