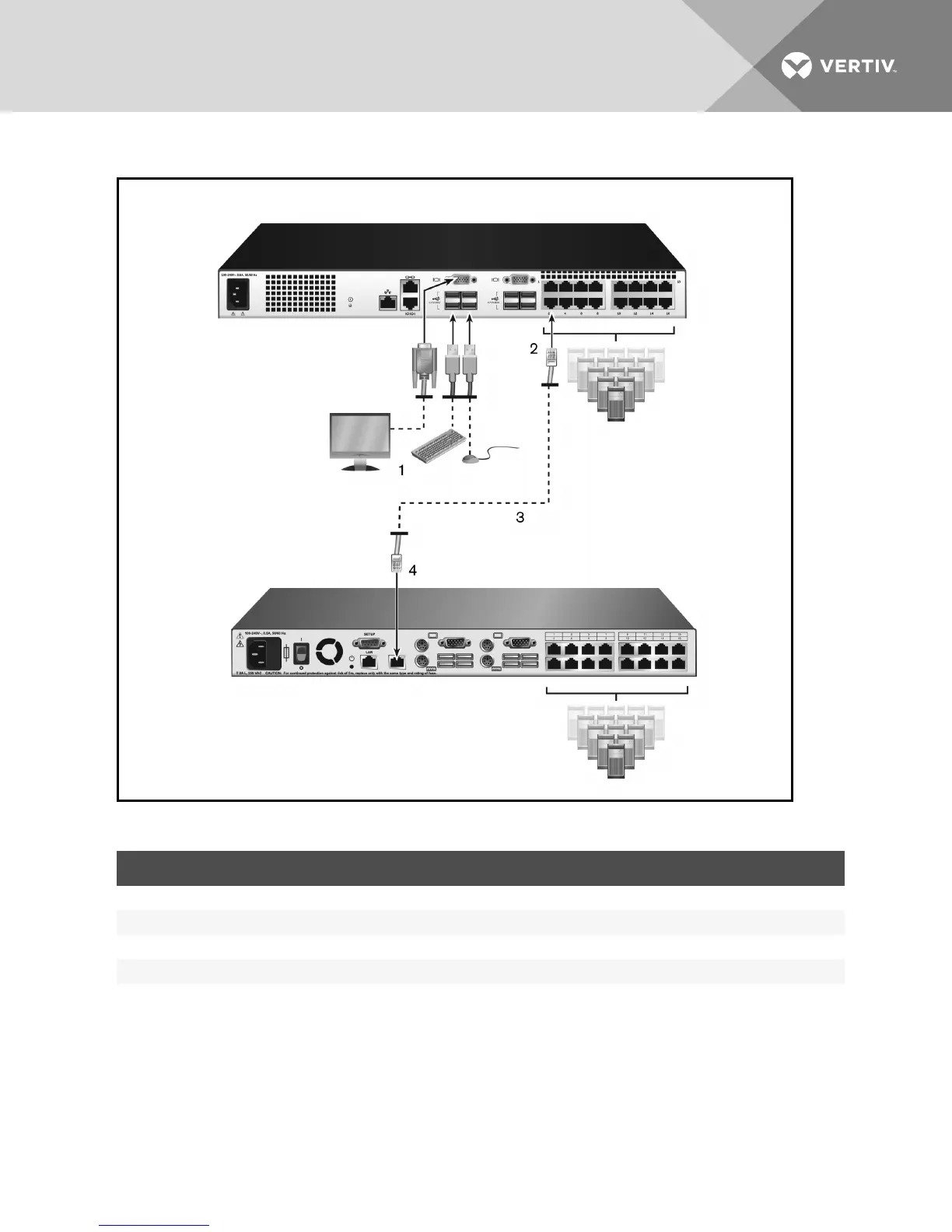

Figure 2.3 Tiering the Switch With a UTP Analog Switch
ITEM DESCRIPTION
1 Local User
2 ARI Connection
3 UTP Connection
4 ACI Connection (chain icon)
Table 2.3 Descriptions for Tiering the Switch
2.4.2 Adding a tiered legacy switch
The following figure illustrates a tiered legacy switch configuration.
To add a legacy switch (optional):
1. Mount the switch into your rack. Locate a UTP cable (up to 30 meters) to connect your switch
to the legacy switch.
2. Attach one end of the UTP cable to the ARI port on your switch.
