Appendix B: Setup Port Pinouts
The switch setup port is an 8-pin modular jack. The setup port pinouts and descriptions are provided in
the following figure and table.

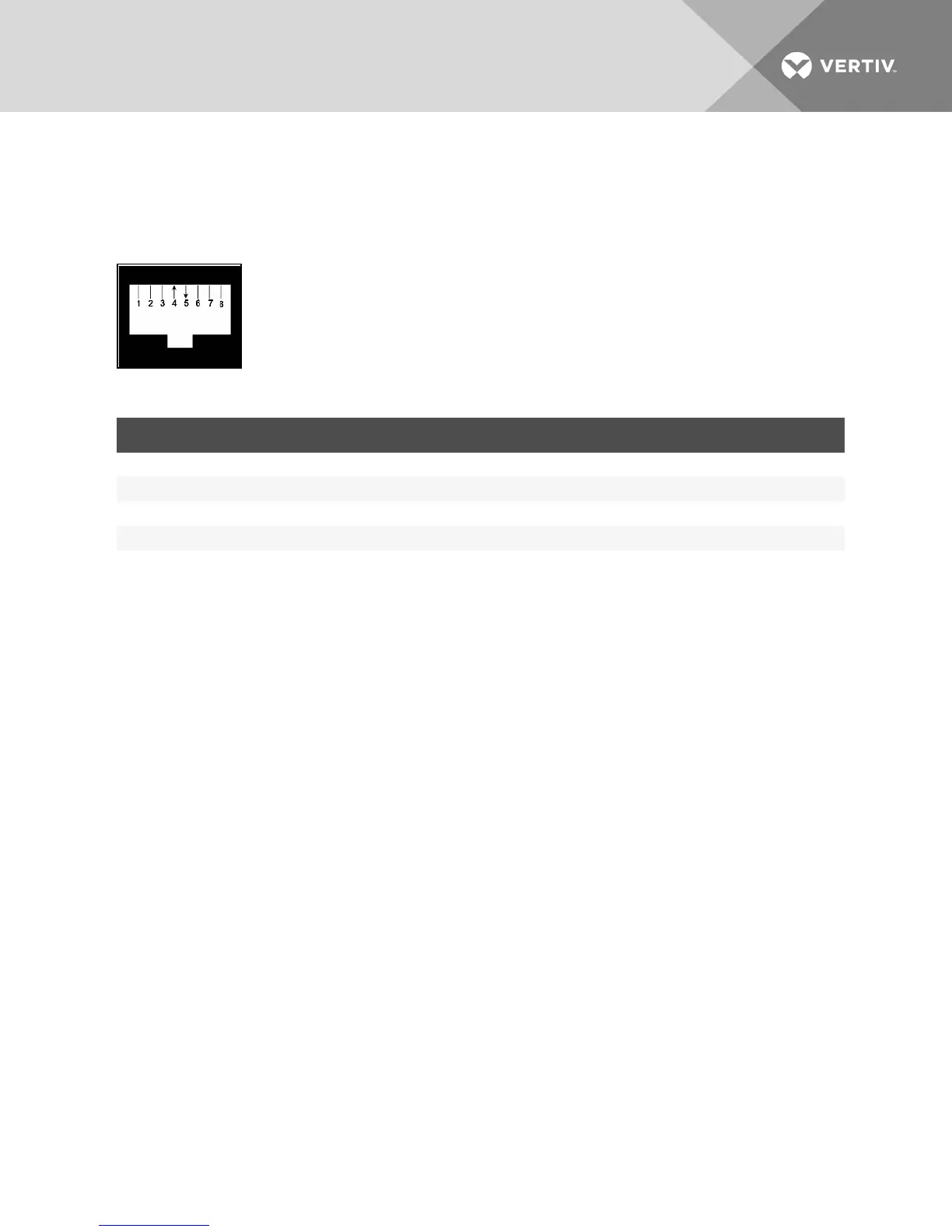

Figure A.1 Setup Port Pinouts
PIN NUMBER DESCRIPTION PIN NUMBER DESCRIPTION
1 No Connection 5 Transmit Data (TXD)
2 No Connection 6 Signal Ground (SG)
3 No Connection 7 No Connection
4 Receive Data (RXD) 8 No Connection
Table A.2 Console/Setup Port Pinout Descriptions
Vertiv | Avocent® AutoView™ 2108/2216/3108/3216 Switch Installer/User Guide | 51
