CARD SWIPE SYSTEM INSTALLATION

The Connect 4 Hoops game is pre-wired with a UCL (Universal Card Link) connector to accept Card

Swipe systems from many different manufactures.

Please follow these instructions to make full use of this capability.

Notes:

1.) Many card swipe systems have a voltage threshold that can be adjusted in the card

swipe menu. Please set this “Game Drive Threshold” to 2 Volts.

2.) There are ticket dispenser extension cables located in the left side coin door if needed.

Menu Changes

Enter menu, Go to “Game Settings” Menu

Set “Game Mode/ Payment” to desired option

Go to “Payout Settings” Menu

Change “Credits” to 1

Change “Swipe Prompt” to “Enabled”

Option #1:

Card swipe systems may come with a standard 9 pin Molex

connector. This is the UCL connector.

Simply plug this connector into your card swipe reader.

Option #2:

If your card swipe systems does not have a standard 9 pin

Molex connector, then you will have to splice wires into the

AACE15014 & AACE15015 harness.

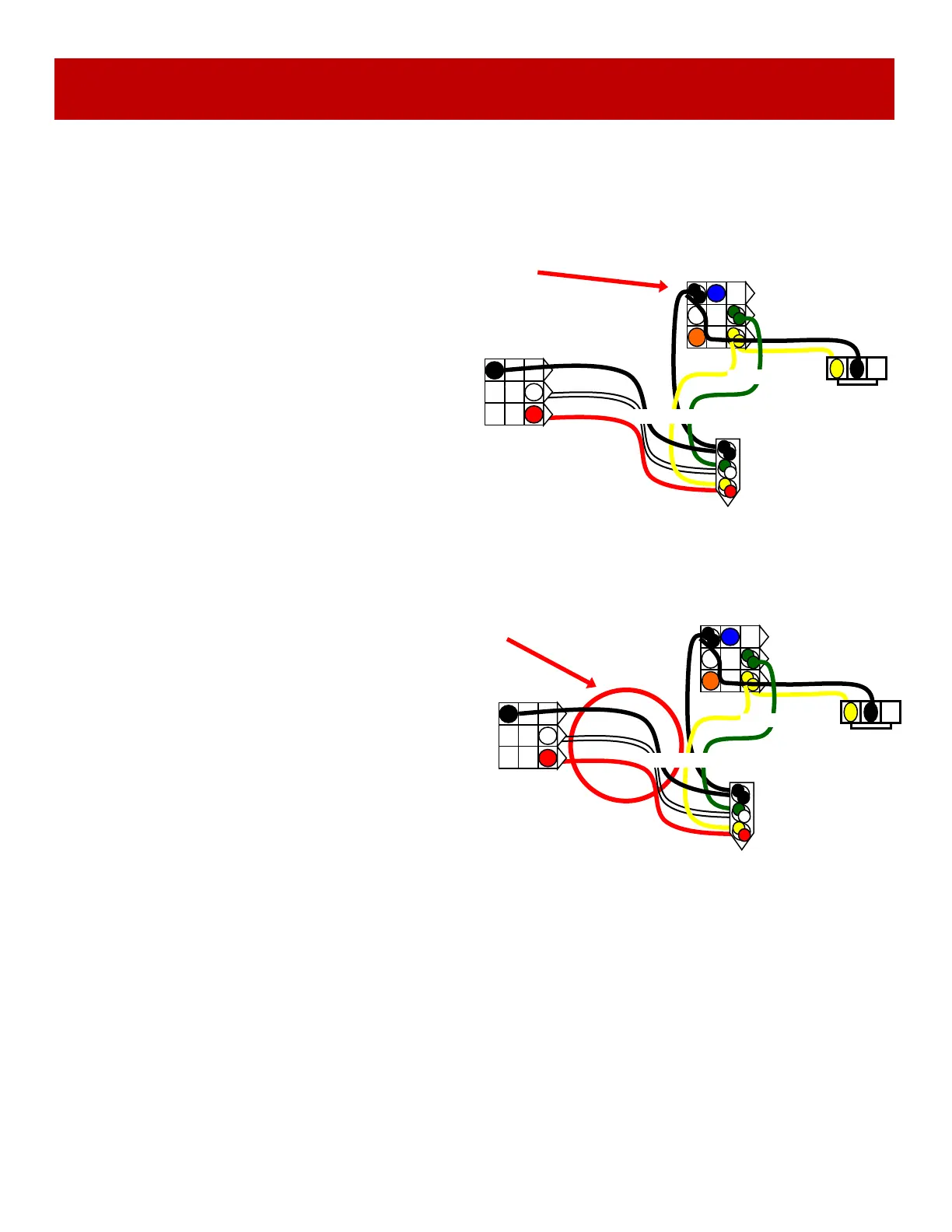

Black wire is ground. (common)

Green / White wire is coin signal.

Yellow / Red wire is +12 Volts DC

This would

normally plug

into coin

mechanism.

12 Volt DC

Power from

Power Dist.

Board

Optional Coin Input Cable

located near ticket dispenser.

Card Swipe system cable

could be plugged into this

connector.

AACE15014
