48
The ball hoop sensors are accessed through the back of the cabinet, or through the middle platform
access panel. If the game is up against the wall, carefully climb over the plexi shield (or remove the
plexi) and enter the middle section of the game.
Remove the 4 screws (using a # 2 square bit) in the center bot-
tom wood and lift center wood up and place aside.
The sensors are located underneath and behind
the monitor.
Remove the 2 of # 2 square bit screws and pull
down the sensor.
Ball Gate does
not go down all
the way.
Loosen the 2 bolts on the motor assembly,
and slide bracket with slotted holes to adjust
height of ball gate.

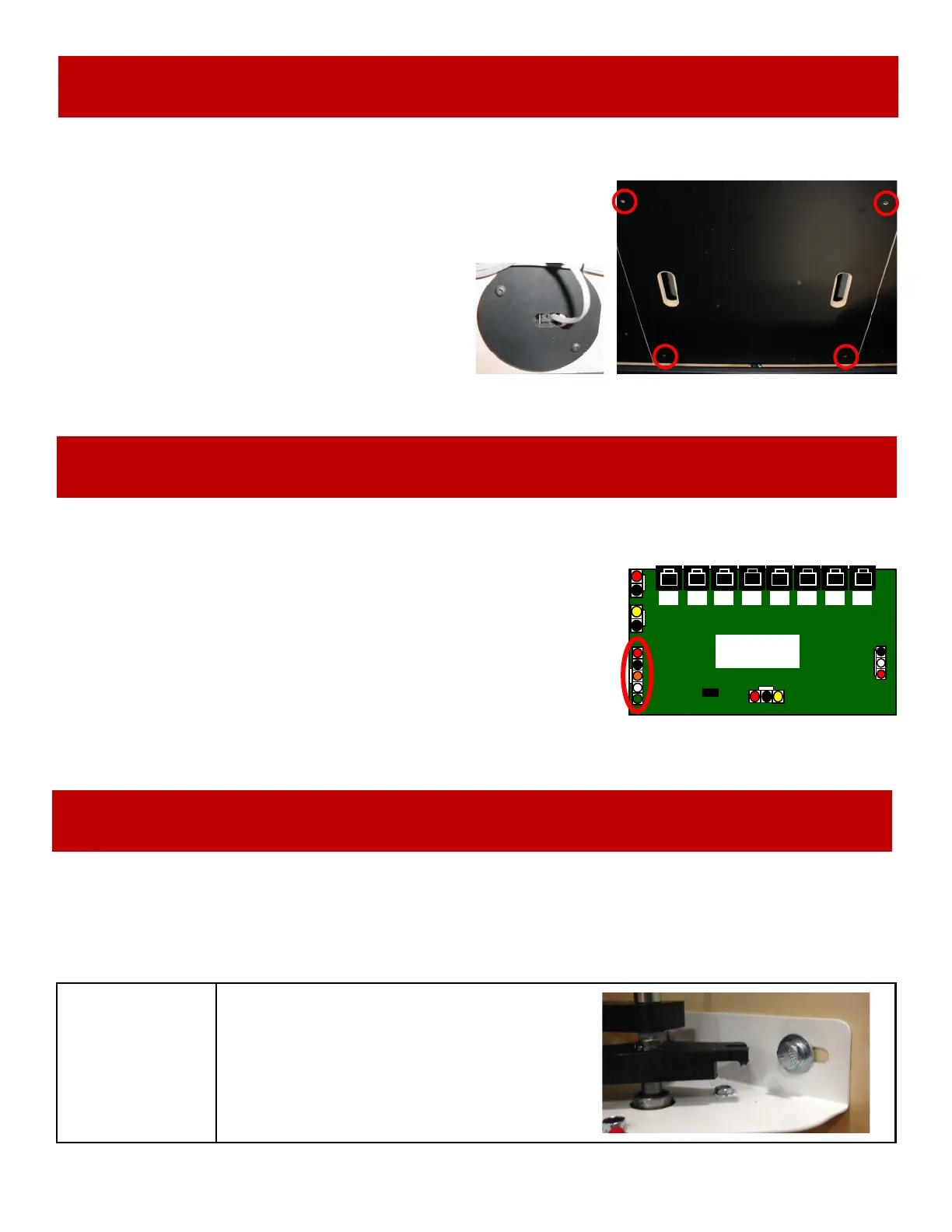

HOW TO ACCESS BALL SENSORS
HOW TO ACCESS REAR CONTROL BOARD
The control board is accessed through the back of the cabinet, or through the middle platform ac-
cess panel. If the game is up against the wall, carefully climb over the plexi shield (or remove the
plexi) and enter the middle section of the game.
Remove the 4 screws (using a # 2 square bit) in the center bottom
wood (as pictured above) and lift center wood up and place aside.
The control board is located in the rear section underneath the
cabinet.
AACB10000
Control Board
# 8 # 7 # 6 # 5 # 4 # 3 # 2 # 1
HOW TO ACCESS BALL GATE MOTOR & SENSOR
The ball gate motor and sensor are accessed through the back of the cabinet, or through the middle
platform access panel. If the game is up against the wall, carefully climb over the plexi shield
(or remove the plexi) and enter the middle section of the game.
Remove the 4 screws (using a # 2 square bit) in the center bottom wood (as pictured above) and lift
center wood up and place aside.
