HOW TO REPLACE MONITOR
The monitor is protected by tempered glass. The glass will be removed first, then the monitor.
Tools needed:
Phillips bit screwdriver # 2 Square bit 7/16” Wrench
Remove the plexi shield from game and set aside.
Climb into the middle section of the game.

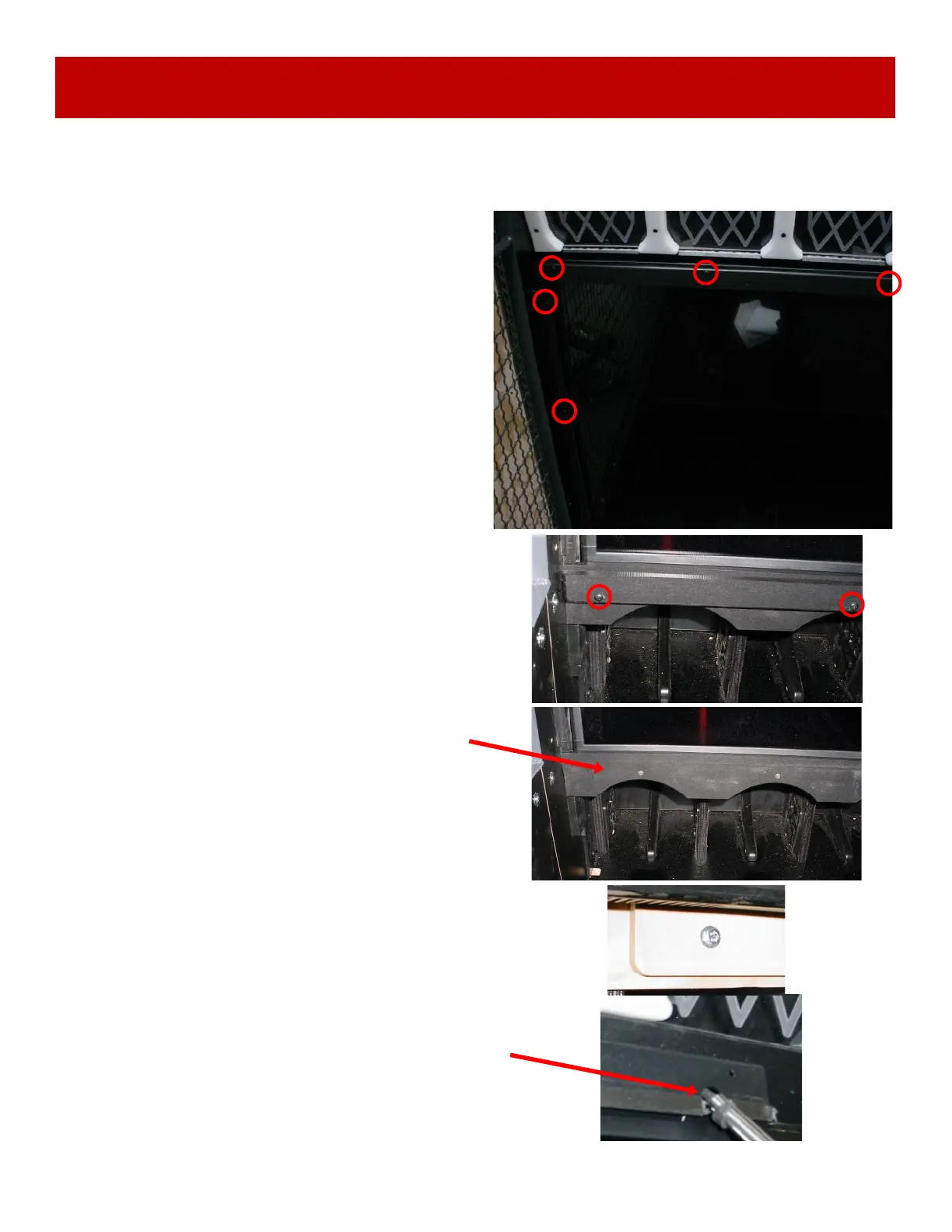

To remove the front tempered glass:
Remove the 6 Philips screws from top rail.
Remove the left and right sides by removing 4 of
# 2 square bit screws on each side.
Carefully remove the tempered glass covering
monitor. We recommend having one person inside
the cabinet and hand the glass to a person
standing outside the cabinet.
Remove the 6 screws in the lower black plastic
piece using a Phillips bit.
Slide forward and out the bottom black plastic piece
with the rounded design.
Remove the 2 bolts under the bottom edge of the
monitor using a 7/16” wrench.
Remove the 6 screws on the top edge of the monitor
using a Phillips screwdriver.
Note: The screws are installed at a 45 degree angle.
