Bay-Tek CONNECT 4 HOOPS User Manual

55
A5HKSY020
A5SREX050
A5HKSY020
A5BRZN030
A5NULO040
A5BOEY010
A5ME15006
A5NULO040
A5SCSQ001
W5HG1030
A5BOCG065
A5SCPH190

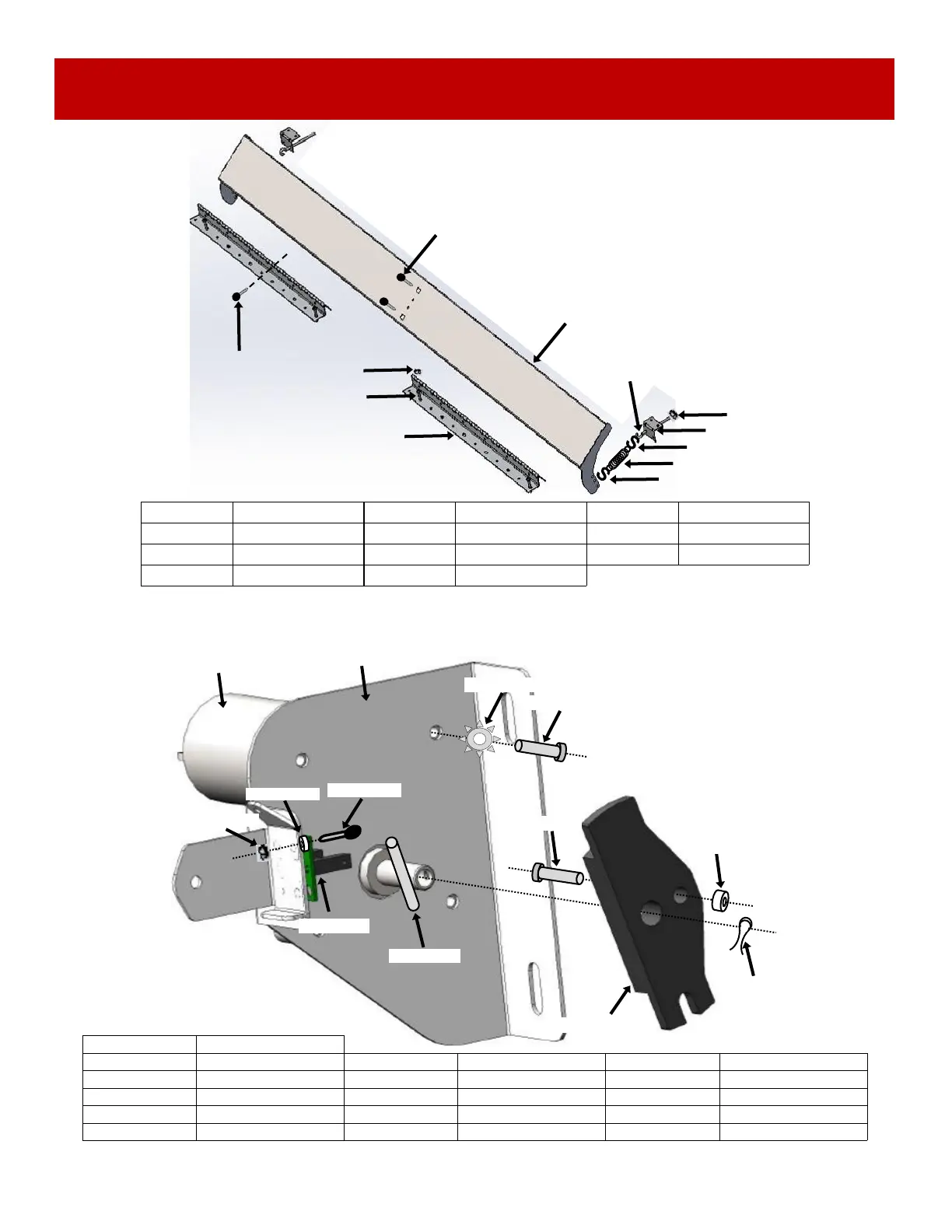

BALL GATE EXPLODED VIEW
A5MO5154
A5ME1727
A5WAET020
A5BOHH030
A5PICV032
A5SENY170
A5PICZ005
A5PIRO015
A5CB5190A
A5NUNY020
A5SFNY010
A5BOPH030
WACA15110
Part # Description
A5BOHH030 10-32 X 3/4" Bolt
A5BOPH030 4-40 X 1/2" Bolt
A5CB5190A Sensor
A5ME1727 Motor Bracket
A5MO5154 Motor
A5MUNY010 Sticky Tab
A5NUNY020 4-40 Nylon Hex Nut
A5PICV032 1/4 X 1 5/8" Clevis Pin
A5PICZ005 3/32" X 1/2" Cotter Pin
A5PIRO015 3/16" X 1 1/4" Roll Pin
A5SENY170 1/4" X 1/4" Spacer
A5SFNY010 #4 X 1/4" Standoff
A5TWNY010 4" Wire Tie
A5WAET020 #10 Tooth Lock Washer
WACA15110 Black HDPE 1/2" Thick
Part # Description
A5BOCG065 10-24 x 1 1/4" Bolt
A5BOEY010 10-24 Eye Bolt
A5BRZN030 1" X 1" X 2 " Bracket
A5HKSY020 S Hook
A5ME15006 Ball Gate
A5NULO040 10-24 Nut
A5SCPH190 10-24 X 1/2" Screw
A5SCSQ001 #6 X 3/4" Screw
A5SREX050 3/8" X 6" Spring
W5HG1030 23" Hinge
