Bay-Tek CONNECT 4 HOOPS User Manual

58
PART # DESCRIPTION PART # DESCRIPTION

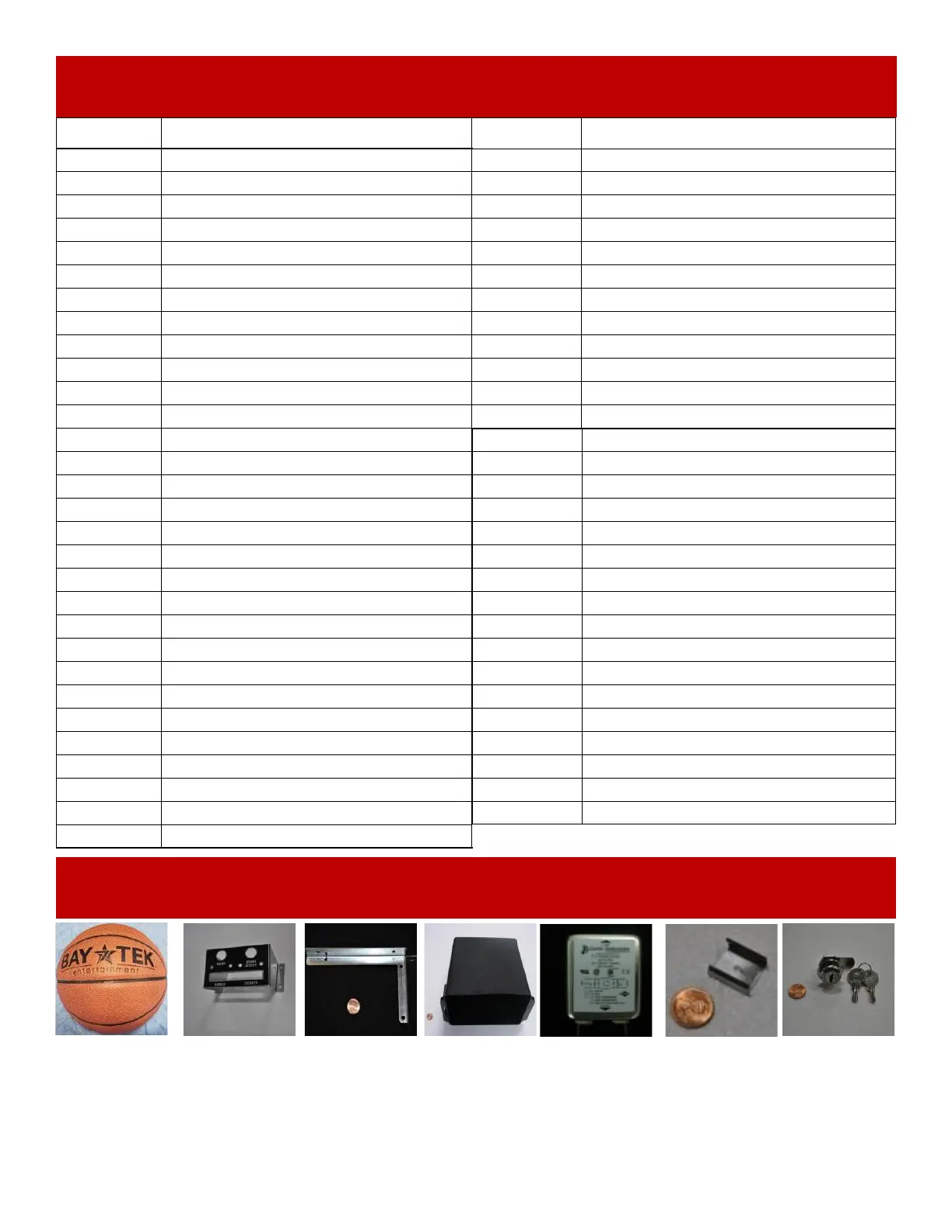

PARTS LIST
A5CB15000 Hoop Light Board, not 1st
AACE15000 Cable Assy, Hoop Addressable Light Power
AACE15001 Cable Assy, Right Dba
AACE15002 Cable Assy, Left Dba
AACE15003 Cable Assy, Power To Panel Stick Light
AACE15005 Cable Assy, Top Light Pwr Side Jumper
AACE15006 Cable Assy, Top Light Pwr From Board
AACE15007 Cable Assy, Red Light Power From Panel
AACE15008 Cable Assy, Speakers
AACE15009 Cable Assy, Yellow Light Pwr Jmp From Panel
AACE15010 Cable Assy, Menu/Counters
AACE15011 Cable Assy, Lifter Sensor From Board
AACE15012 Cable Assy, Lifter Sensor To Sensor
AACE15013 Cable Assy, Right Coin Door/Ticket Disp
AACE15014 Cable Assy, Left Coin Door/Ticket Disp
AACE15015 Cable Assy, Back Door Board To Center
AACE15016 Cable Assy, Center Cable For Door Board Pwr
AACE15017 Cable Assy, Back Door Board Pwr From Front
AACE15018 Cable Assy, Panel Stick Light From Board
AACE15019 Cable Assy, Center Panel Stick Light Pwr
AACE15020 Cable Assy, Center Split To Panel Lights
AACE15042 Cable Assy, Line Filter From Power Box
AACE15022 Cable Assy, Line Filter Center Connection
AACE15043 Cable Assy, Line Filter To Power Strip
AACE15024 Cable Assy, Power Supply Grd To Main Brd
AACE15025 Cable Assy, Right Coin Door Ground
AACE15026 Cable Assy, Left Coin Door Ground
AACE15027 Cable Assy, Left Ticket Dispenser Ground
AACE15028 Cable Assy, Right Ticket Dispenser Ground
AACE15036 Cable Assy, Hoop Sensor
A5MO5154 Motor, Ball Gate,10 Rpm
A5PS1013 Power Supply, EVGA 500
A5TD1 Ticket Dispenser, Entropy
AACE8811 Cable Assy, Speaker
AAPB2700 Push Button Assembly
A5CB10001 PCB, Hoop Sensor, 8 Per Game
A5CB5190A PCB, Sensor
AACB9600A PCB, Audio Amplifier Board
AACB10000 Board, PCB, C4 Hoops Controller
AACB5156 PCB, Power Dist. Board
AACB9604 Board, Door Interface Board
AAMB10E-HD Mother Board,Qc5000-Itx/Ph W/Hard Drive
WACA15014 Front Clear Plexi Ball Guard
WACA15090 Basket Hoop Etched Plexi
AACB15001 Bleed Resistor Board
A5CORD5001 Power Cord 2 feet
A5CORD5003 Power Cord, 6 feet
A5BA15000 AABK1013 A5BK9999 A5CB2050 A5FI9010 A5HO1003 A5LK2001
AACE15037 Cable Assy,Cb9600 To Power Distribution
AACE15038 Cable Assy, Power Distribution To Boards
AACE15039 Cable Assy, Side Rail Led
AACE15040 Cable Assy, Player Panel Led
AACE15041 Cable Assy, Top Player Led
AALB15042 Cable Assy, Small Panel Lights
AALB15043 Cable Assy, Underside Panel Light
AALB15044 Cable Assy, Back Cabinet Stick Light
AALB15045 Cable Assy, Back Cabinet Stick Light
AACE1710 Cable, Door Ground Cable
AACE1715 Cable, Door Ground Cable
A5MO0065A TV, 65" 4k Ultra HD
PARTS PICTURES
