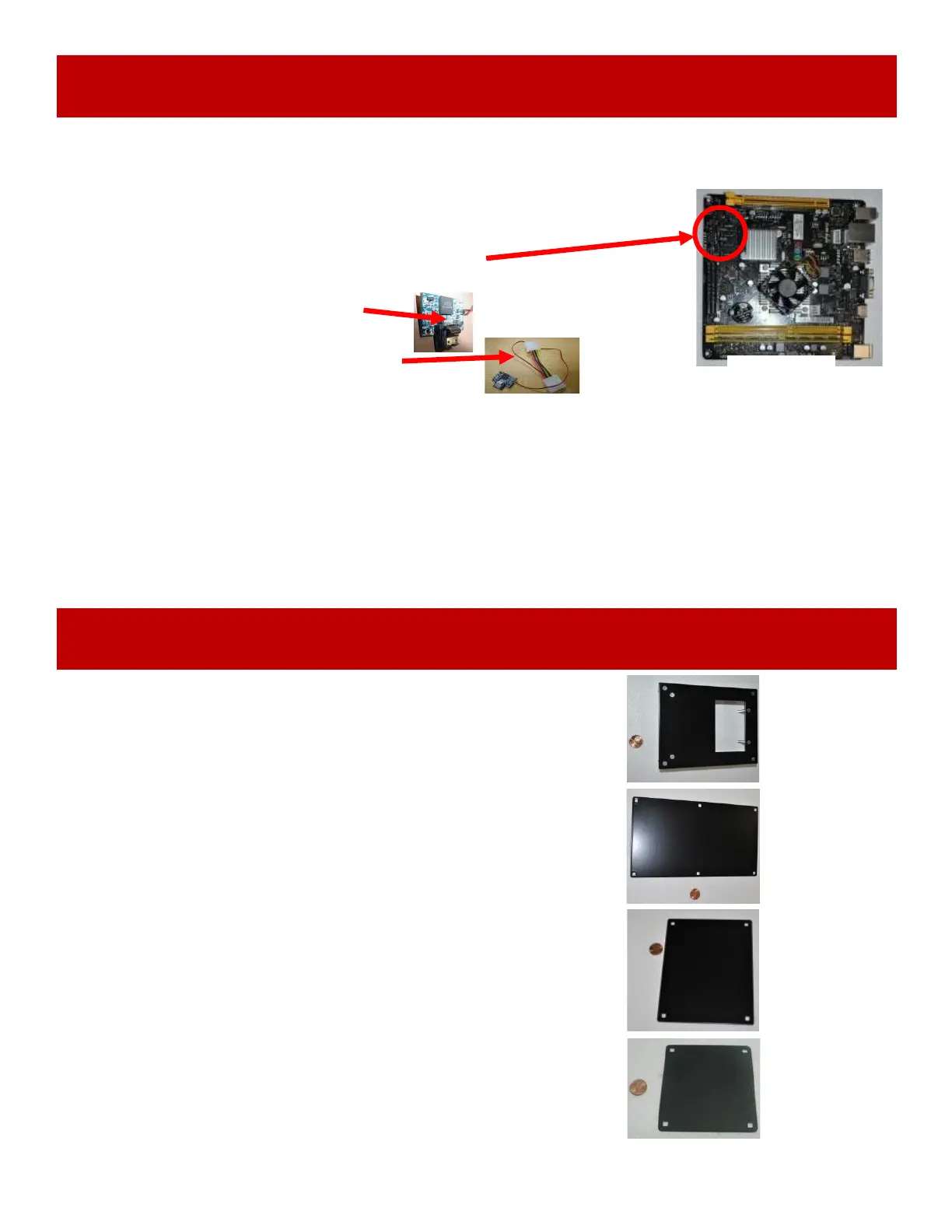

HOW TO UPDATE SOFTWARE
BLANKING PLATES AVAILABLE
A5PL4200 DBA Plate used for Upstacker Bill Acceptor
A5PL9998 Plate used instead of Coin Mechanisms
A5PL8900 Plate used for Bill Validator
A5PL9995 Plate used instead of ticket dispenser
Install new hard drive by gently pushing straight onto motherboard until it “clicks”.
Turn the game back on by flipping the power switch on the power strip.
Locate hard drive on motherboard.
Press tab on far side of hard drive
and gentle remove from motherboard.
Unplug power supply jumper connector
and remove old hard drive from unit.
New Software Installation:
The hard drive contains all the information about the game: Credits per play, ticket pattern, etc.
Be sure to check this information after finishing installing new software.
Turn off game by flipping the power switch on the power strip.
Note: The I/O boards will automatically be updated by the motherboard software.
AAMB10E-HD
Motherboard
Note: Later games may have
different colored sockets.
The connections are the same.
