Bay-Tek CONNECT 4 HOOPS User Manual

30
AACB9604
I/O Aux Board
Left Side
Board Address
Both Dips OFF

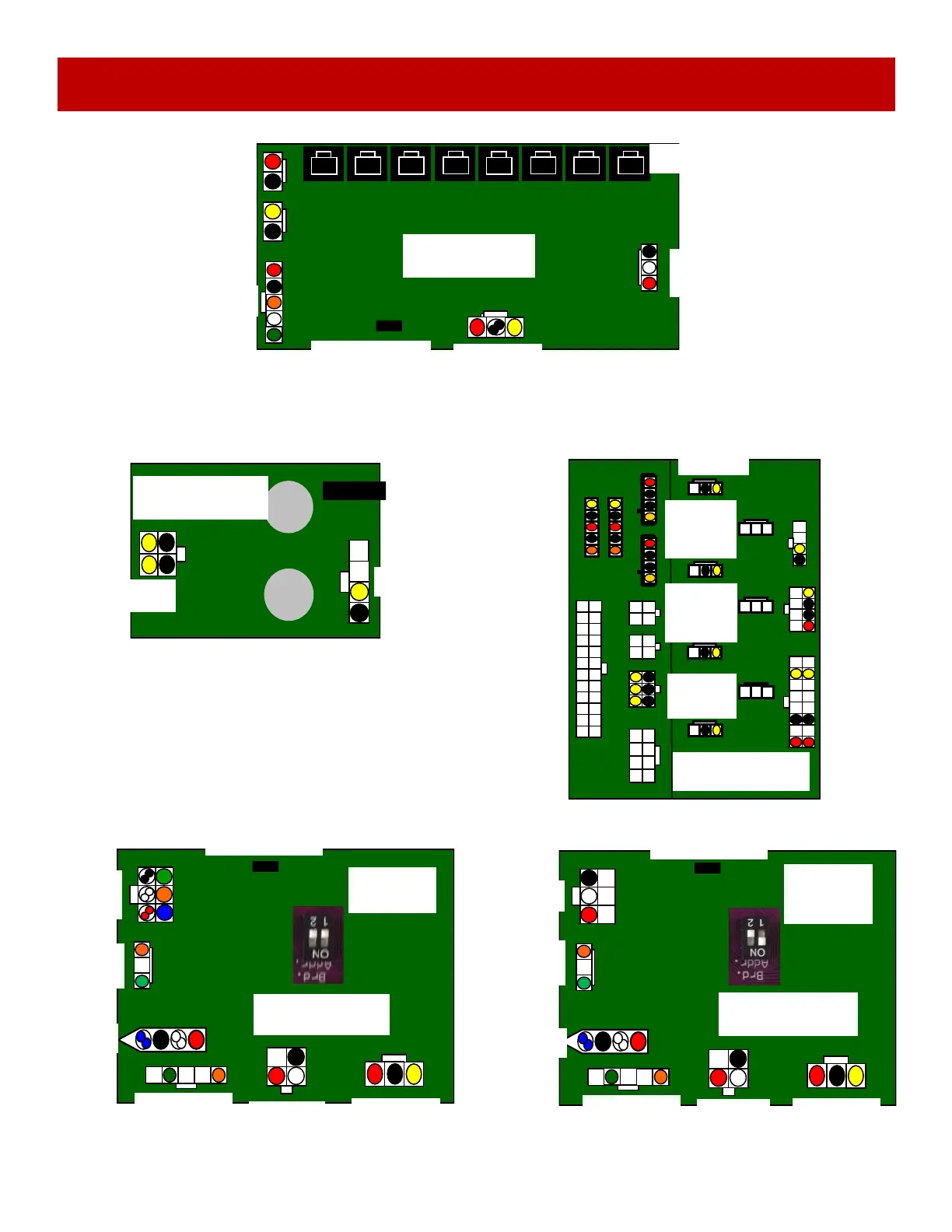

CIRCUIT BOARD LAYOUT
AACB9600A
Audio Amplifier
A5CE2300
Audio Cable
AACE15008
Speakers
AACE15037
12 VDC In
AACB10000
Control Board
AACE15036
Hoop Sensors
AACE15015
Power in from
Power Dist Bd
AACE15018
Yellow Connector
A5CORD40
USB Communication
to Motherboard
AACE15011
Motor & Sensor
AACE15000
LED Strip
Under Baskets
AACE15018
Red Connector
AACE15038
Power to
I/O Boards
AACE15017
Power to
Controller
Board
AACE15037
Power to
Audio
Boards
AACB5156
Power Dist. Board
AACE15006
Power to
Marquee
Lights
AACE15003
Power to
Panel Light
AACE15014
12 V Power
to Left
Coin Door
AACE15013
12 V Power
to Right
Coin Door
AACE15014
Coin Mech
AACE15014
Ticket Dispenser
AACE15010
Menu Buttons
& Meters
AACE15038
Power in from
Power Dist Bd
AACE15002
DBA Cable
AACE15014
Low Ticket
Switch
A5CBL5900
USB Communication
from Motherboard
AACB9604
I/O Aux Board
AACE15013
Ticket Dispenser
AACE15013
Coin Mech
AACE15038
Power in from
Power Dist Bd
AACE15001
DBA Cable
AACE15013
Low Ticket
Switch
Right Side
Board Address
Dips #1 ON
Dip #2 OFF
A5CBL5900
USB Communication
from Motherboard
AACE15010
Meters
