45

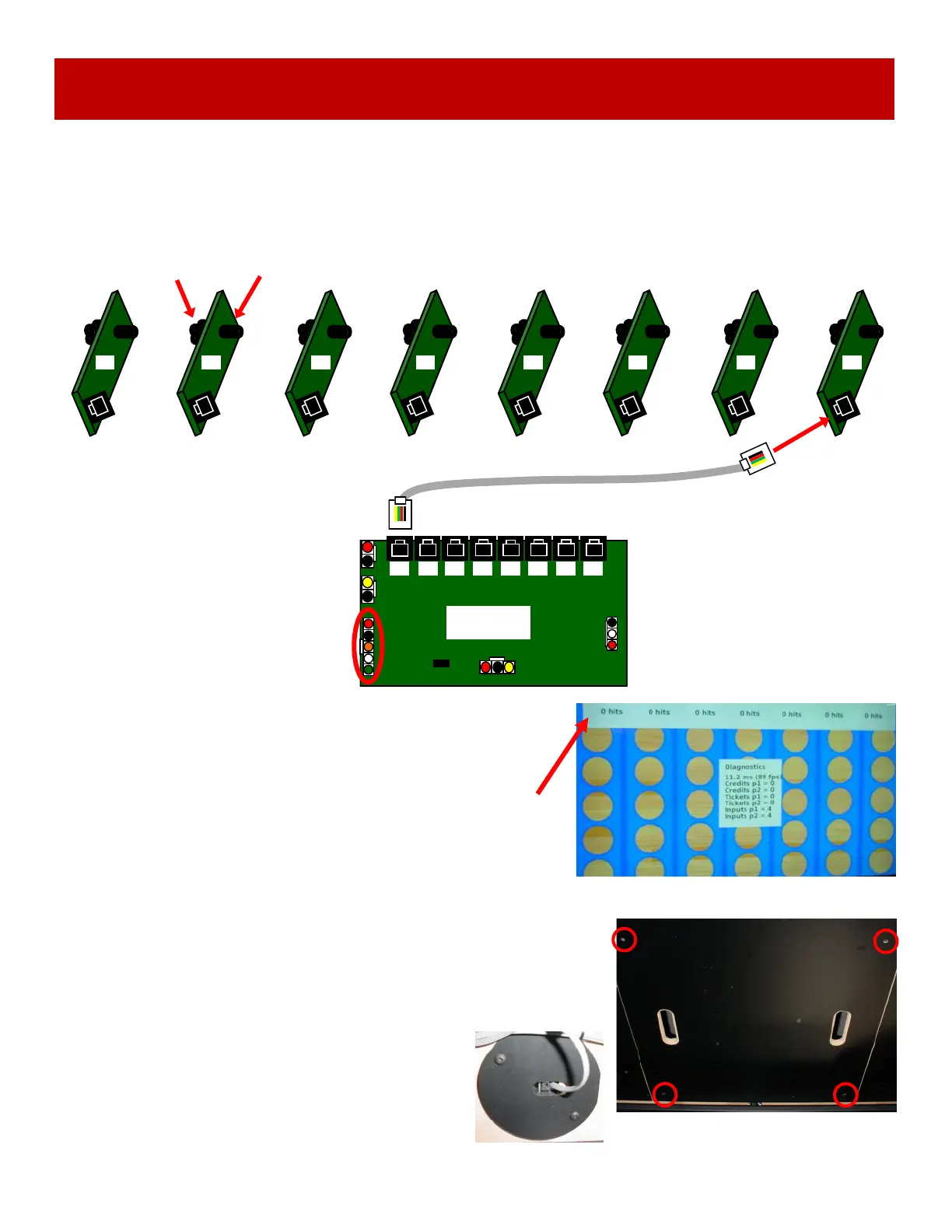

Sensor Boards are plugged into the Aux Board
#1 to #1
#2 to #2
#3 to #3
#4 to #4
#5 to #5
#6 to #6
#7 to #7
#8 to #8
HOOPS NOT SCORING
Diagnostic Menu
To Enter the Diagnostic Menu:
Enter Main Menu and scroll down to “Diagnostics:” turn to ON
Exit Menu
The ball gate motor will cycle open, and this screen will appear:
The top column will show hoops scored.
AACB10000
Control Board
# 8 # 7 # 6 # 5 # 4 # 3 # 2 # 1
# 8 # 7 # 6 # 5 # 4 # 3 # 2 # 1
Emitters
Detector
The same cable goes to every
sensor, so the cables can be
swapped between sensors to
identify an issue.
8 cables per game. (AACE15036)
All ball sensor boards have 4 emitters and 1 detector on opposite sides of the board.
These infrared sensors create a beam which the ball breaks to score a hoop.
Because these are interchangeable, the far left (#1) board can be swapped into a location with a faulty emitter.
The far right (#8) board can be swapped into a location with a faulty detector.
AACE15036
How to Access Sensors:
The ball hoop sensors are accessed through the back of the cabinet, or
through the middle platform access panel. If the game is up against the
wall, carefully climb over the plexi shield (or remove the plexi) and enter
the middle section of the game.
Remove the 4 screws (using a # 2 square bit) in the center bottom wood
and lift center wood up and place aside.
The sensors are located underneath and behind the
monitor.
Remove the 2 of # 2 square bit screws and pull down
the sensor.
To Next Page
