Dimensional Drawings
22.5 Service Clearance

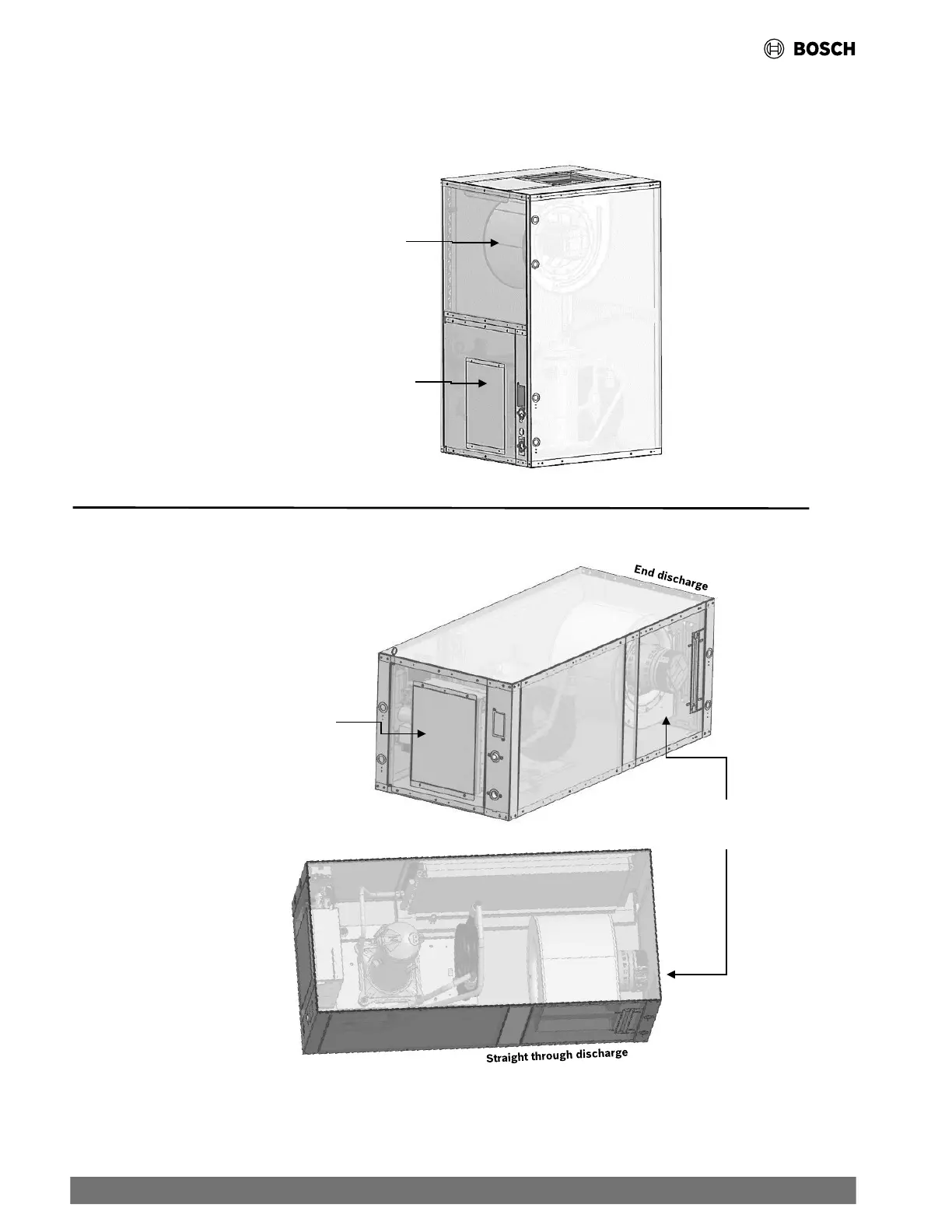

Fig. 49 Vertical and Horizontal Cabinet Service Clearance
VT Cabinet Service Clearance
Blower/Motor access
clearance
18” Minimum
24” Optimum
Compressor &
Electrical/Control access
clearance
24” Minimum
36” Optimum
Note: The local electric codes may
require 36" or more clearance at
the electrical control box.
Compressor & Electrical/Control
Access
24” Minimum
36” Optimum
Note: The local electric codes may
require 36" or more clearance at the
electrical control box
Motor access clearance
18” Minimum
24” Optimum
HZ Cabinet Service Clearance
-
