4.5 Ethernet connection
The standard RJ-45 Ethernet socket is used to connect the unit directly to a PC or to a
network. To connect directly to a network hub or switch, use a straight-through network
cable. To connect directly to a PC, use a cross-over network cable. Consult with your local IT
personnel for the specific type of cable needed. The maximum cable length from node to node
is limited to 100 meters (300 feet).
Specifications
– 1000 Base-T IEEE 802.3ab compliant, 100Base-TX IEEE 802.3u Compliant, 10Base-T IEEE
802.3 Compliant
– IEEE 802.3 Compliant RGMII/MII
– DSP processing
– Transmission rate up to 1Gbps over industry standard CAT.5 UTP cable with BER less
than 10
-10
in 1000Base-T
– Supports 3.3V or 2.5V signaling for RGMII
– Supports power down mode and supports Link Down Power Saving
– 64-pin QFN or 100-pin LQFP
– Connector: RJ45

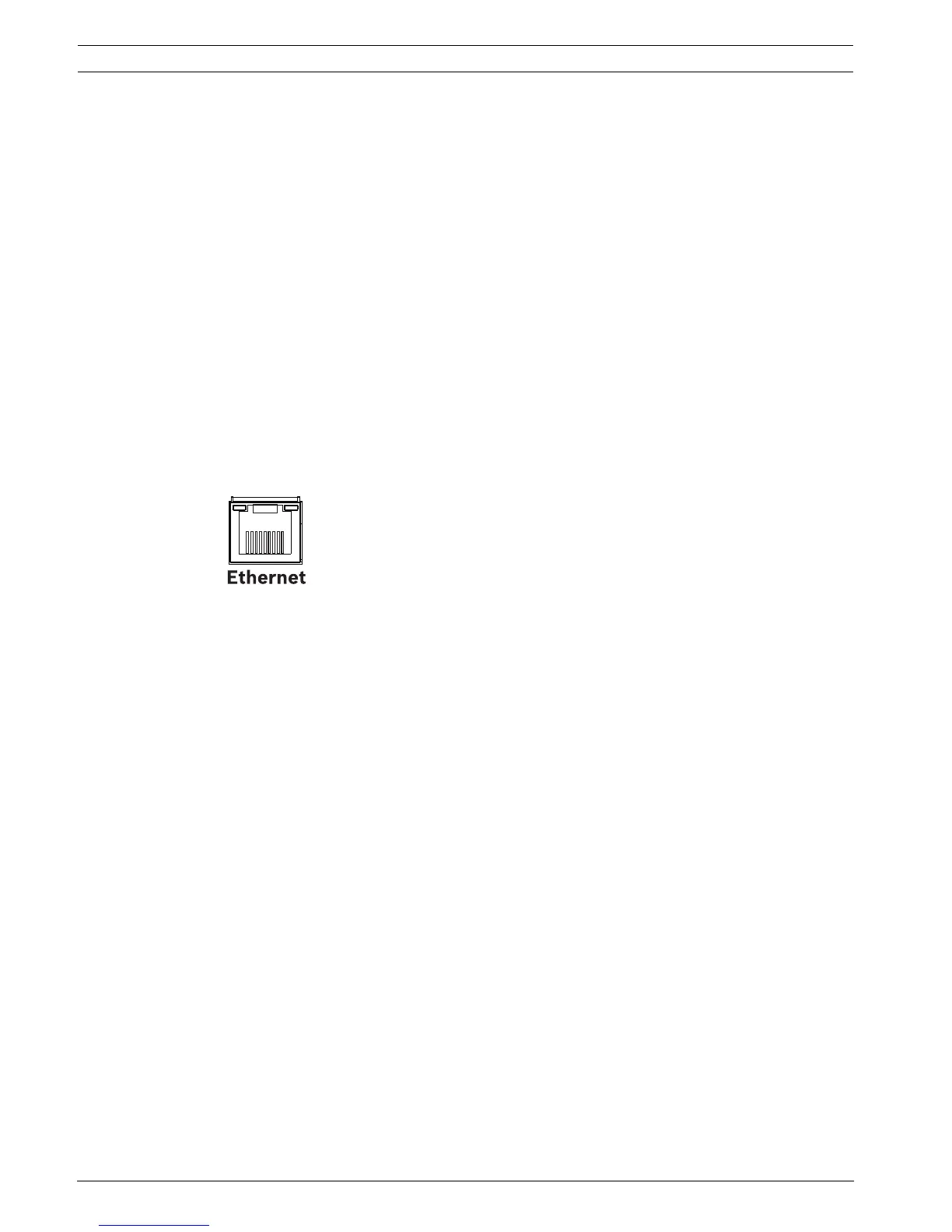

Figure 4.6 RJ-45 Ethernet connector
