60 en | Configuration menu Video Recorder 630/650 Series
F.01U.169.663 | v2.0 | 2012.02 Installation and Operation manual Bosch Security Systems
– Network streaming performance is limited by the total bandwidth between the unit and
the PC running the Web-based control application.
– Network stream resolution setting is CIF only and the frame rate is equal or less than the
recording streams.
Note:
Disabling channels allows you to increase the frame rate on the remaining enabled channels.
6.1.8 Video format

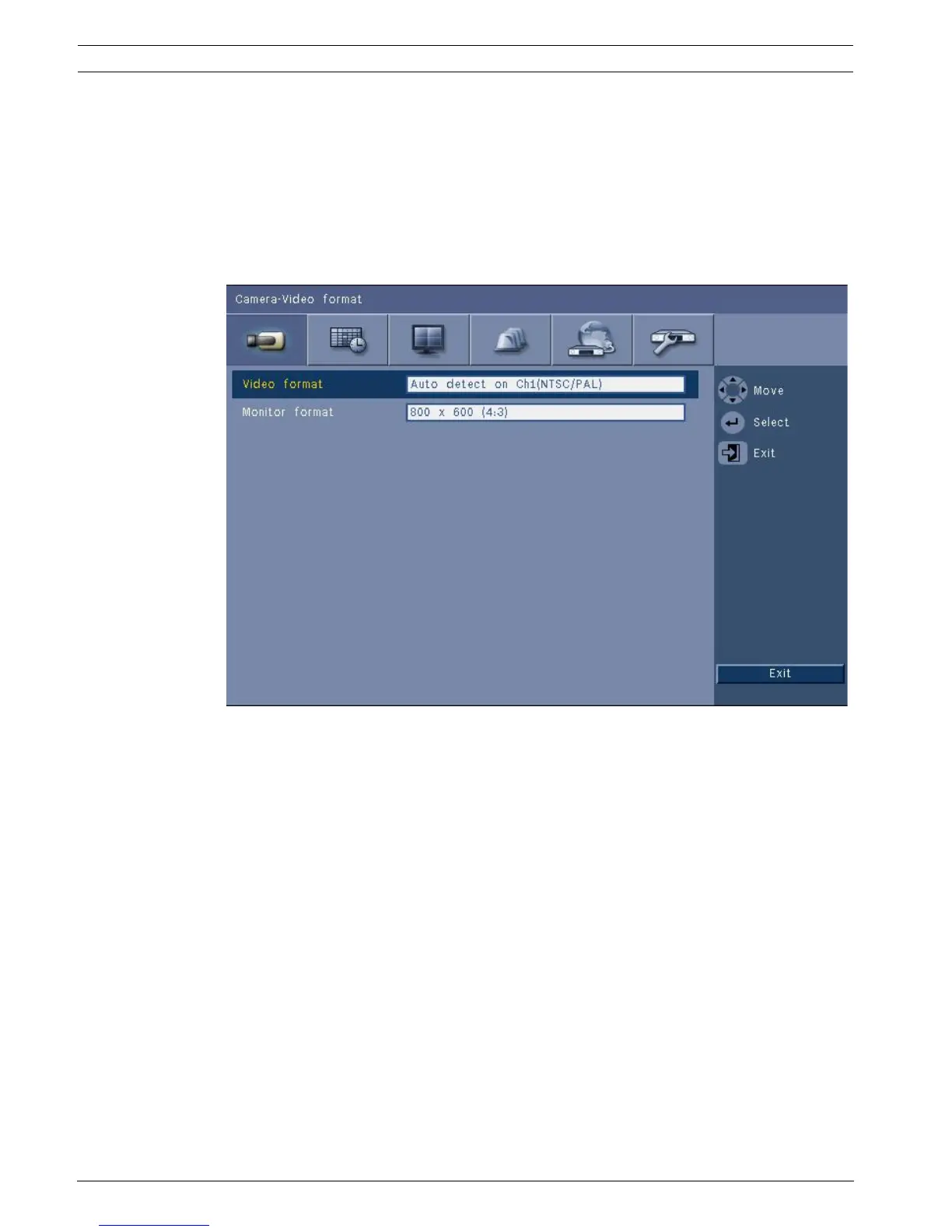

Figure 6.9 Camera - Video format
Select the Video format, NTSC, PAL, or Auto detect, that the unit will operate with. When set
to Auto detect, the format during startup of the video on the first channel where video is
connected will be used to set the DVR to either PAL or NTSC.
Select the Monitor format to match the best VGA resolution on the used VGA monitor
(monitor A).
