Video Recorder 630/650 Series Configuration menu | en 57
Bosch Security Systems Installation and Operation manual F.01U.169.663 | v2.0 | 2012.02
6.1.4 Continuous Recording

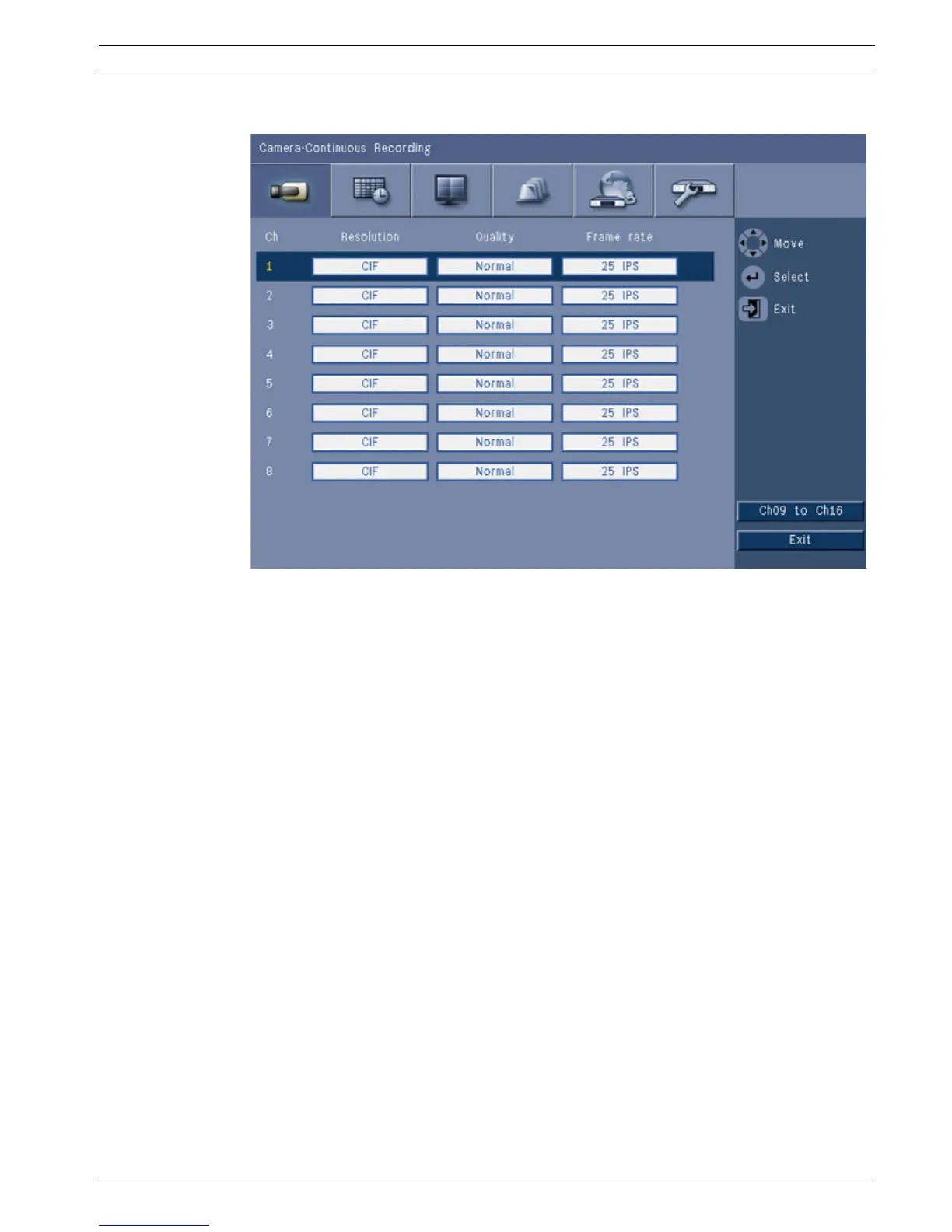

Figure 6.5 Camera - Continuous Recording
Continuous recording mode:
– Resolution - set the video resolution to 4CIF (704x576/480 PAL/NTSC), 2CIF (704x288/
240 PAL/NTSC), or CIF (352x288/240 PAL/NTSC).
– Quality - set the video quality setting to Best, High, Normal, Low, or Lowest.
– Frame rate - set the video frame rate to 25/30, 12.5/15, 6.25/7.5, 5/6, 2.5/3, or 1/1 IPS
(Images Per Second in PAL/NTSC).
Note:
For 16-channel units, use the ch09 to ch16 or ch01 to ch08 button to display the required
cameras.
