54 en | Configuration menu Video Recorder 630/650 Series
F.01U.169.663 | v2.0 | 2012.02 Installation and Operation manual Bosch Security Systems
6.1 Camera
Use the Camera menu to configure the recording set up for each of the three profiles.
1. Configure the settings for Continuous, Input, and Motion recording.
– Continuous recording - the default recording mode
– Input recording - activated upon an input contact event
– Motion recording - activated upon a motion event
2. Choose an input channel to configure the settings for an individual video and audio input.
Note:
For 16-channel units, use the ch09 to ch16 or ch01 to ch08 button to display the required
cameras.
6.1.1 Camera

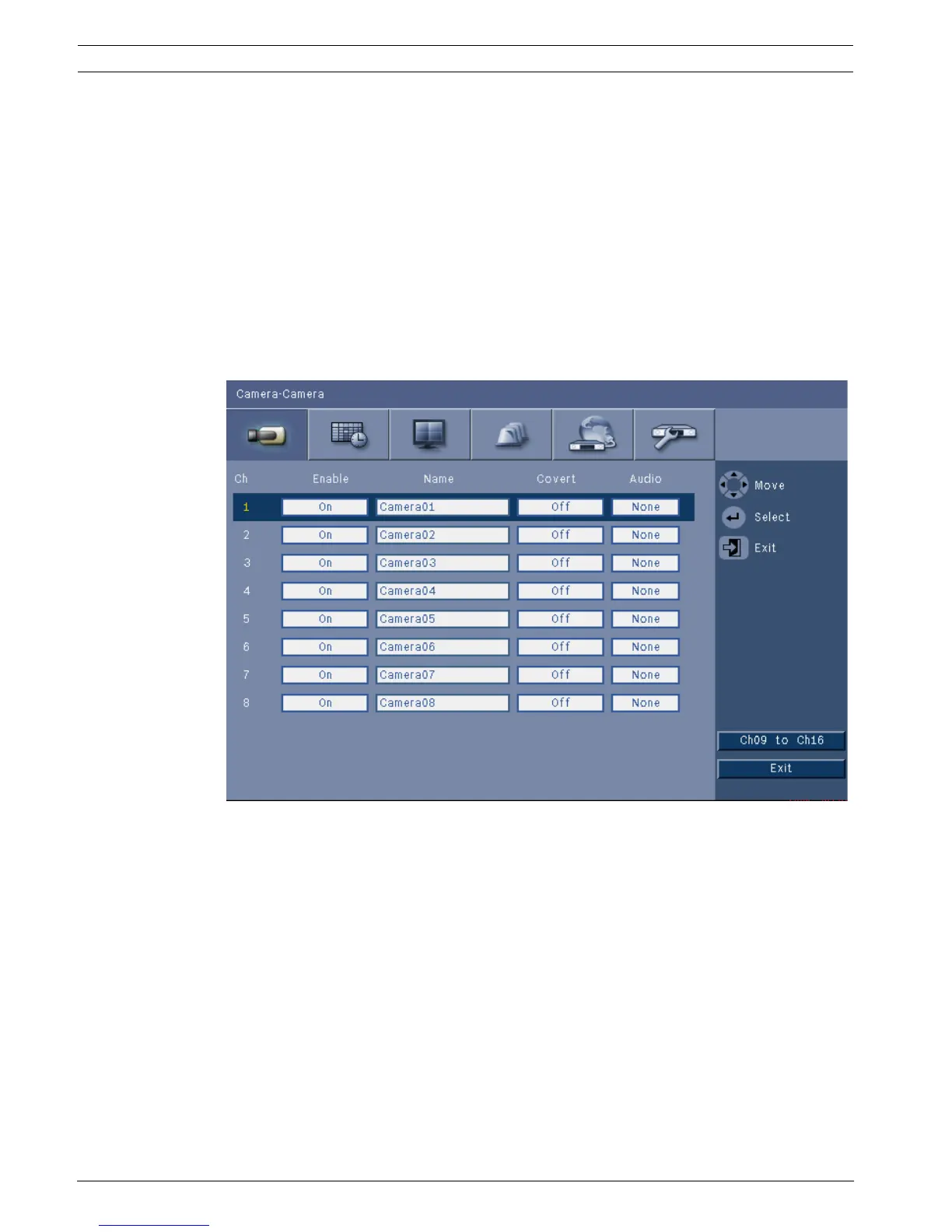

Figure 6.2 Camera - Camera
Use this menu to enable the video and audio inputs.
Enable
This setting enables or disables the video and corresponding audio inputs.
Name
Enter a name for the selected input. The name can be up to 16 characters long.
Covert
This setting enables or disables the hiding video from unauthorized users. When enabled
Advanced, Normal and unauthenticated Users will be shown only a blank screen, equivalent to
the camera being disabled. Administrator level users are able to view live, playback, and
archive covert video.
Audio
Enable Audio input when an audio source is connected for the specified channel.
