64 en | Configuration menu Video Recorder 630/650 Series
F.01U.169.663 | v2.0 | 2012.02 Installation and Operation manual Bosch Security Systems
6.4.2 Motion
The motion detection feature can be configured by selecting the camera channel for each
individual video input.

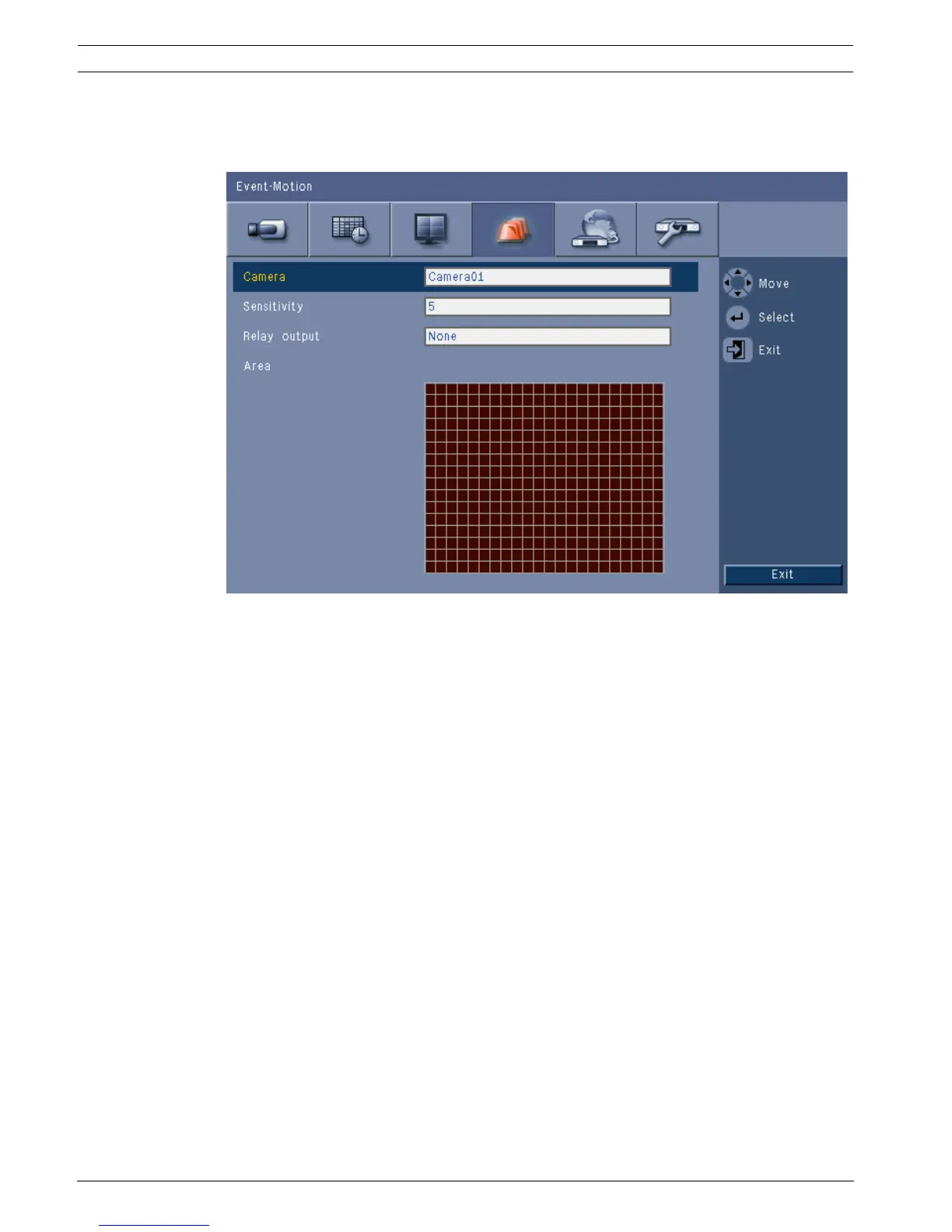

Figure 6.13 Event - Motion
1. Adjust the Sensitivity to set the threshold at which Motion is detected.
2. Select the Relay Output to trigger in the event of Motion.
3. To define the motion sensitive area in the Area preview cameo window:
– Draw in the preview cameo and press Enter to select a motion area.
– Use the arrow keys to move around the grid, pressing the enter key to toggle each
grid block from active to inactive.
– Click Set All to set the selected area to its default value.
4. Click Clear All to delete the selected area.
