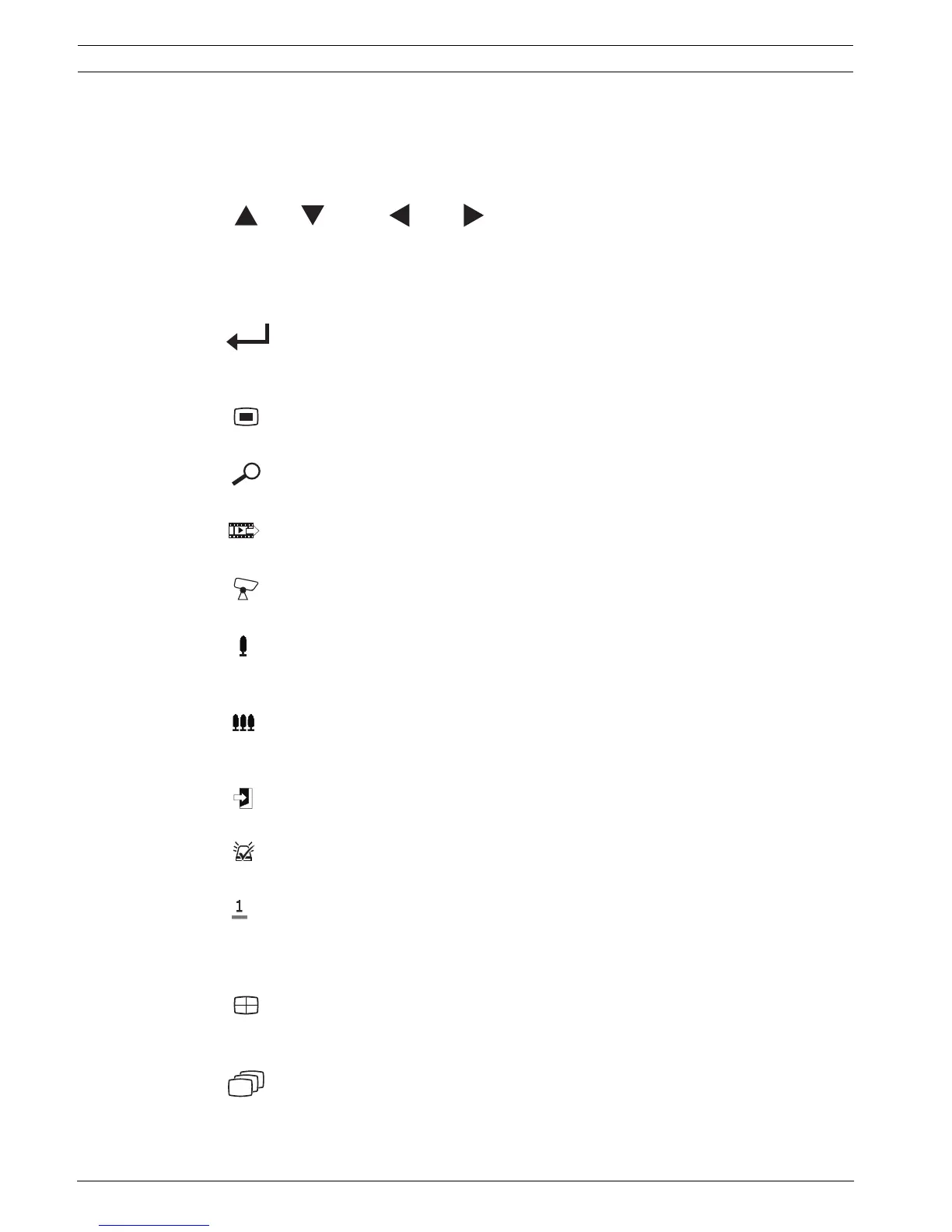

5.1.1 Keys
The keys on the front panel control all functions. Symbols on the keys show the functions.
Inactive keys emit an audible beep when pressed.
Arrow keys:
Up, Down, Left, Right
– move around through menu items or values when in menu mode
– in PTZ mode, the arrow keys can be used to control the pan or tilt functions of the
selected camera
– moves the visible area of the selected image in digital zoom mode
Enter key
– selects a submenu or menu item, or confirms selections made in menus
– brings up the cameo submenu in full screen or quad modes
Menu key
– opens the system menu
Search key
– press to open the date/time search menu to look for recorded images
Export key
– press to open the export menu
PTZ key
– enables or disables the PTZ mode
Zoom in key
– PTZ zoom in key
– Digital zoom in key on active full-screen display
Zoom out key
– PTZ zoom out key
– Digital zoom out key
Exit key
– press to return to previous level or to exit the menu system
Acknowledge key
– press to acknowledge an alarm event; a red indicator light is located on the key
Camera keys (1-8/16)
– press to see a full-screen display of the video input
– the LED will be illuminated when the camera is recording
– the LED will flash during an alarm on the camera
Quad key
– press to go to quad mode
– in quad mode, press to toggle to full screen
Sequence key
– view cameras in sequence on full-screen or quad displays
