40/263 Bosch Rexroth AG | Tightening Technology 3 608 870 A47
Nexo cordless Wi-Fi nutrunner | 3 608 870 A47/2017-
1 - Status bar
2 - Screen
The screen of the display is set in the NEXO-OS operating system under menu Settings Tool display
(see page 206).
By default, the actual values are displayed.
3 - Function fields/ 4 - Function keys
The individual menu functions can be executed by pushing the corresponding function keys (left, center,
right).

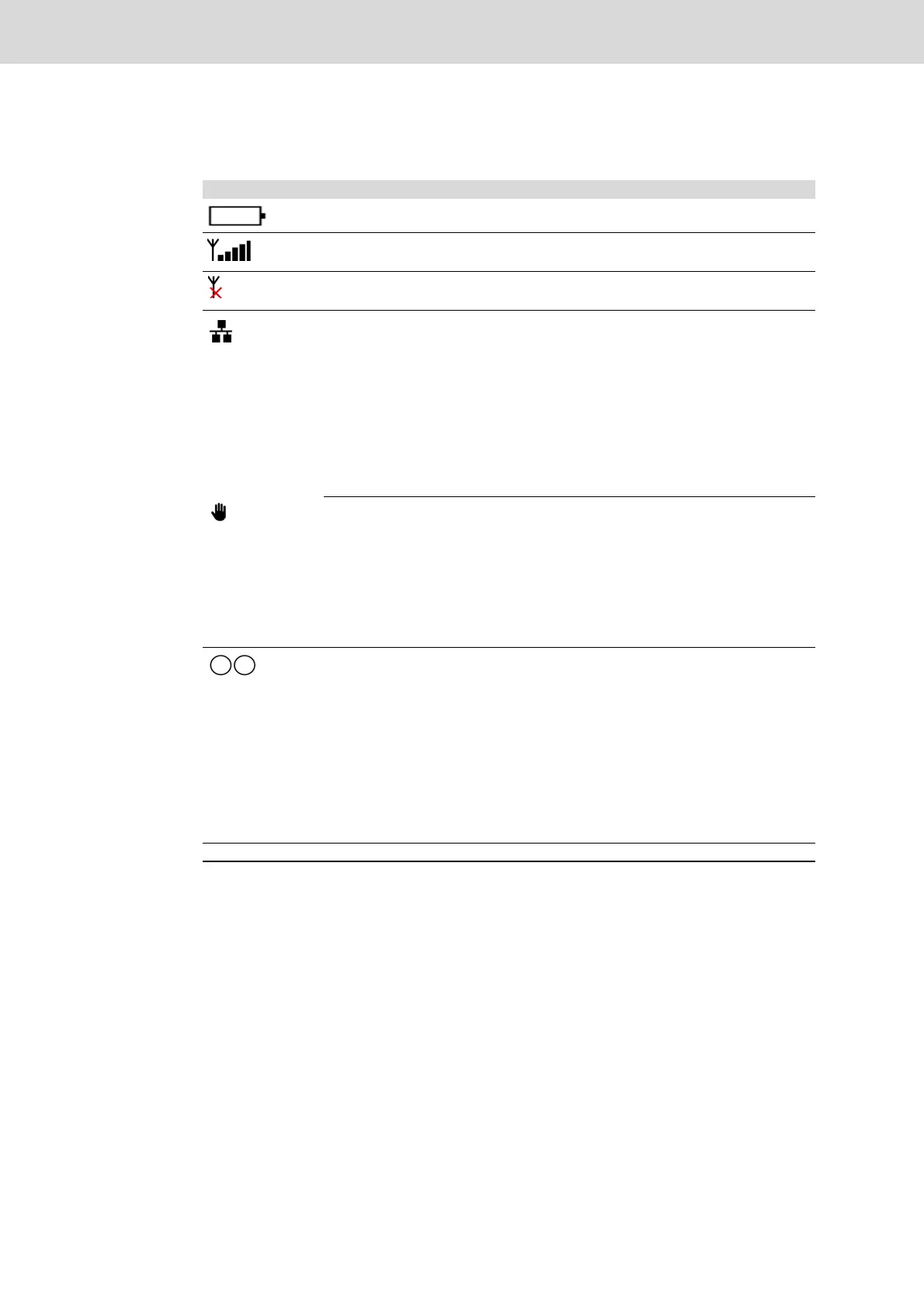

Table 3–1: Status bar elements
Element Description
Shows the current charging condition of the inserted slide-in battery pack.
WLAN activated. Indicates the radio communication signal strength
WLAN deactivated.
As of Nexo firmware version 1200, the status of the data connection is displayed. Activate the
Display data connection status check box in menu Settings
Tool display.
As of Nexo firmware version 1300, Display data connection status is activated by default.
Nutrunner is in automatic mode:
– Green symbol
All active data services are connected.
–Red symbol
At least one data service is not connected.
–Gray symbol
No data service active.
As of Nexo firmware version 1300.
Nutrunner is in manual mode:
– Green symbol
All active data services are connected.
–Red symbol
At least one data service is not connected.
–Gray symbol
No data service active.
Nutrunner operating state:
Left-hand LED:
– Yellow steady light
Enable signal present ("Enable" or "Active Enable" PLC signals)
Right-hand LED:
– Green steady light
Nutrunner ready for operation
– Yellow flashing light
Nutrunner not ready for operation
– Red flashing light
System errors
P:-- Display of the current tightening program.
