64/263 Bosch Rexroth AG | Tightening Technology 3 608 870 A47
Nexo cordless Wi-Fi nutrunner | 3 608 870 A47/2017-
Example: Minimum clamping width for the torque support on pistol grip nutrunners:

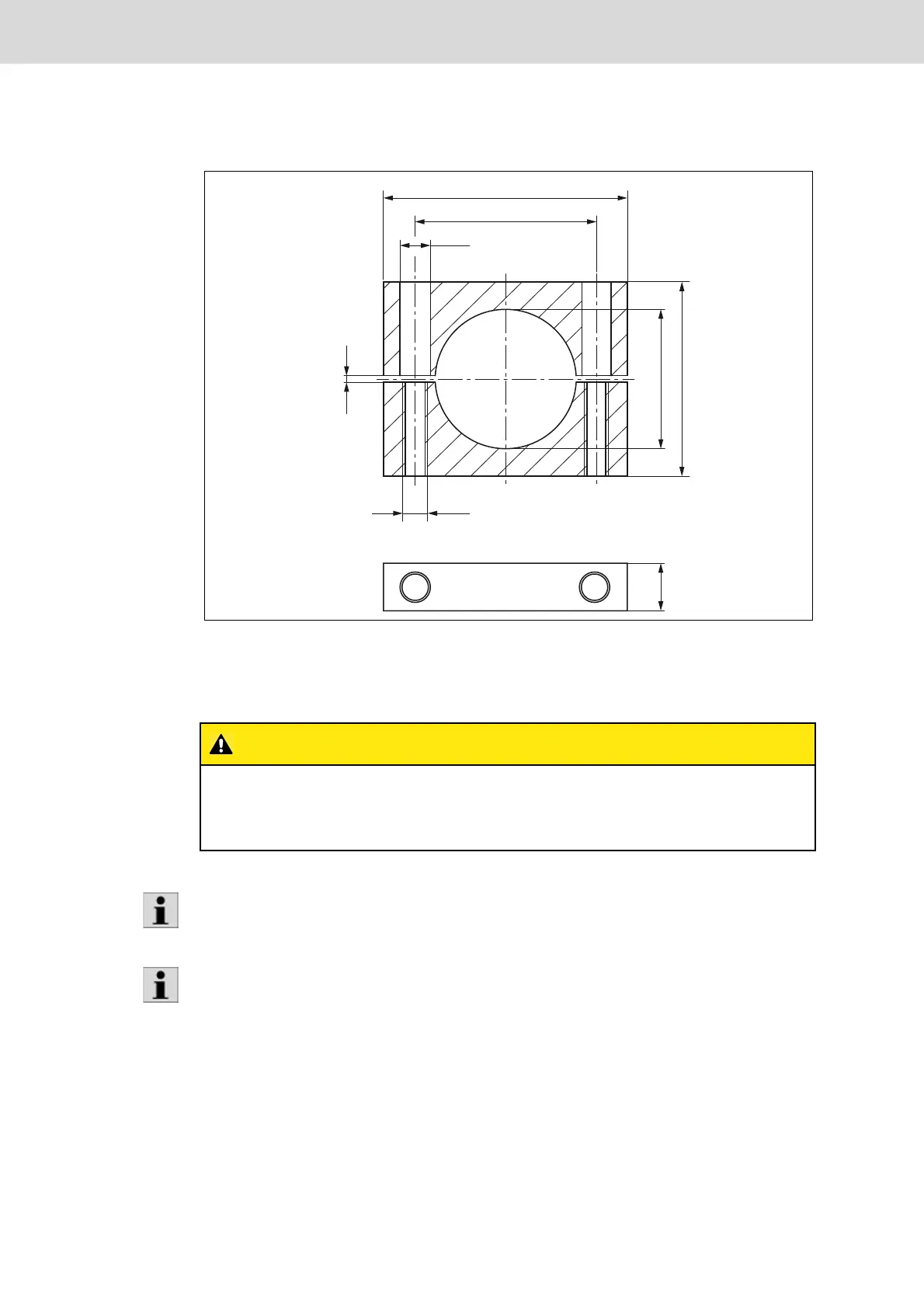

Fig. 4–9: Minimum clamping piece dimensions
4.5 Attaching the accessories
> 74
55 ± 0,2
Ø 9
M8
2
Ø43 H9
> 60
> 15
< 19
CAUTION
Risk of injury!
Unintentional activation of the product during assembly/disassembly may cause serious injuries!
Before working on the product, put the program selector to its central position (switch lock) and
remove the accumulator.
When attaching/removing accessories, be sure to observe the related instructions.
If flat output drives are to be installed, observe the clamping areas given for the positioning of the torque
support.
