60/263 Bosch Rexroth AG | Tightening Technology 3 608 870 A47
Nexo cordless Wi-Fi nutrunner | 3 608 870 A47/2017-
3. Adjust angle head 5 in increments of 45° until it reaches the desired position and use open-end
wrench 1 to tighten the union nut at wrench face 2 again. Use open-end wrench 3 at the angle head
flange to hold it in place (see figure 4–2).
NXA030S, NXA050S
and NXA065S
The angle head can be infinitely adjusted by 360°.
Tools required (not included in the scope of delivery):
• Hook wrench DIN 1810 shape B, external nut diameter 34-36 mm, pin diameter 4 mm
• Mounting aid for angle heads ESWM 3608876473

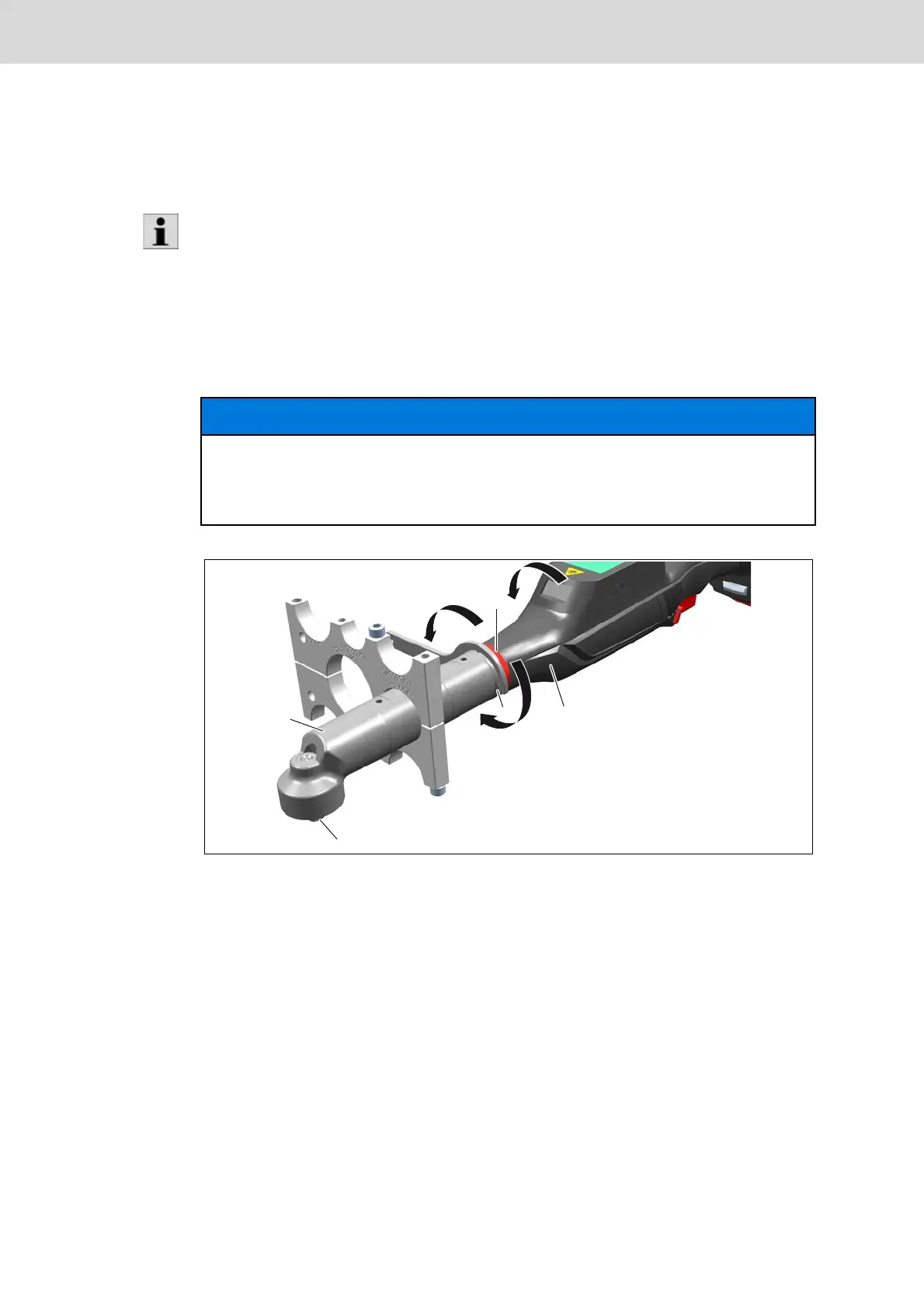

Fig. 4–3: Removing and adjusting the angle head
To rotate the angle head, it must be removed from the lock (pull it forward as far as necessary). After hav-
ing adjusted the angle head, make sure it is correctly locked in place before retightening the lock nut.
NOTE
Improper handling may cause damage!
Damage to the hand-held nutrunner.
Attach the mounting aid only in the clamping area allowed for the torque support (see Attaching
the torque support on page 61).
2
