Bose L1 II User Manual

22

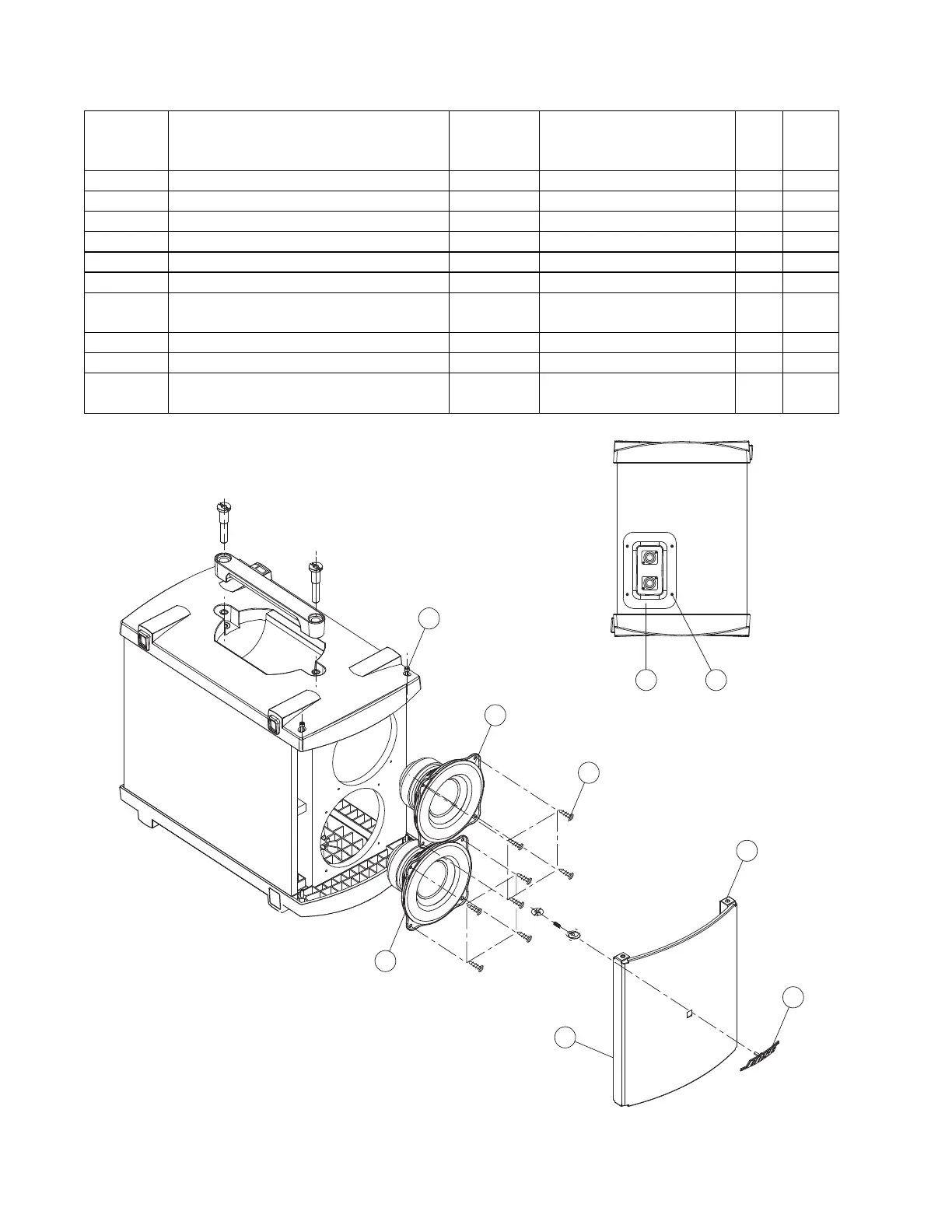

Figure 9. B1 Bass Module Exploded View
1
2
4x
2x
48x
32x
5
7
62x
8
9
Main Part List
B1 Bass Module Exploded View (see Figure 9)
Item
Number
Description Bose
Part
Number
V
endo
r
Part Numbe
r
Qty Note
1 Screw, M4 X 28, BK, B1 Grille 275465 2908-4028+3400 4
2 Woofer Assembly 263998 SVC-FM040C+WF 2
3 Gasket, Woofer Assembly 263998 - 2 4
4 Screw, M4 X 17, BK, B1 Driver 275466 2913-4017+3000 8
5 Grille Assembly 263992 SVC-FM040C+GRILL 1
6 Gasket, Grille Assembly - - 2 4
7 Logo Assembly, B1/B2 739717-
011S
- 1
8 B1 Terminal Panel Assembly 276409 SVC-B2+TML 1
9 Screw, M3 X 12, BK, B1 Input Cup 275467 2900-3012+3000 4
- 4-Wire Speakon to Speakon Cable
A
ssembly, L=1.5M
035404 SVC-FM040C+CABLE 1
