Needle
bar
flip-up
mechanism
~~------

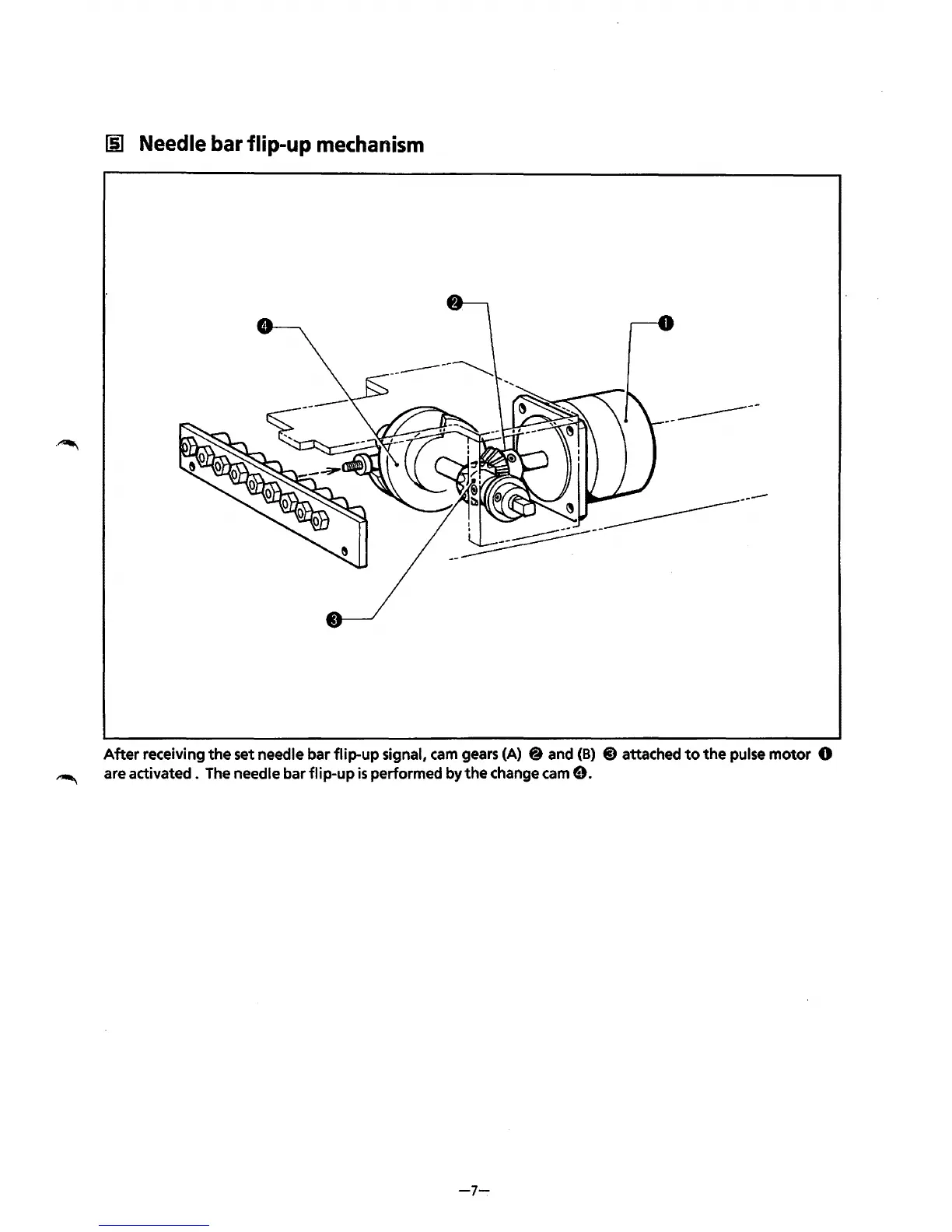

After
receiving
the
set needle bar
flip-up
signal,
cam
gears (A) 8 and
(B)
@)
attached
to
the
pulse
motor
0
are
activated.
The needle bar
flip-up
is
performed
by
the
change cam
9.
-7-
