[1]

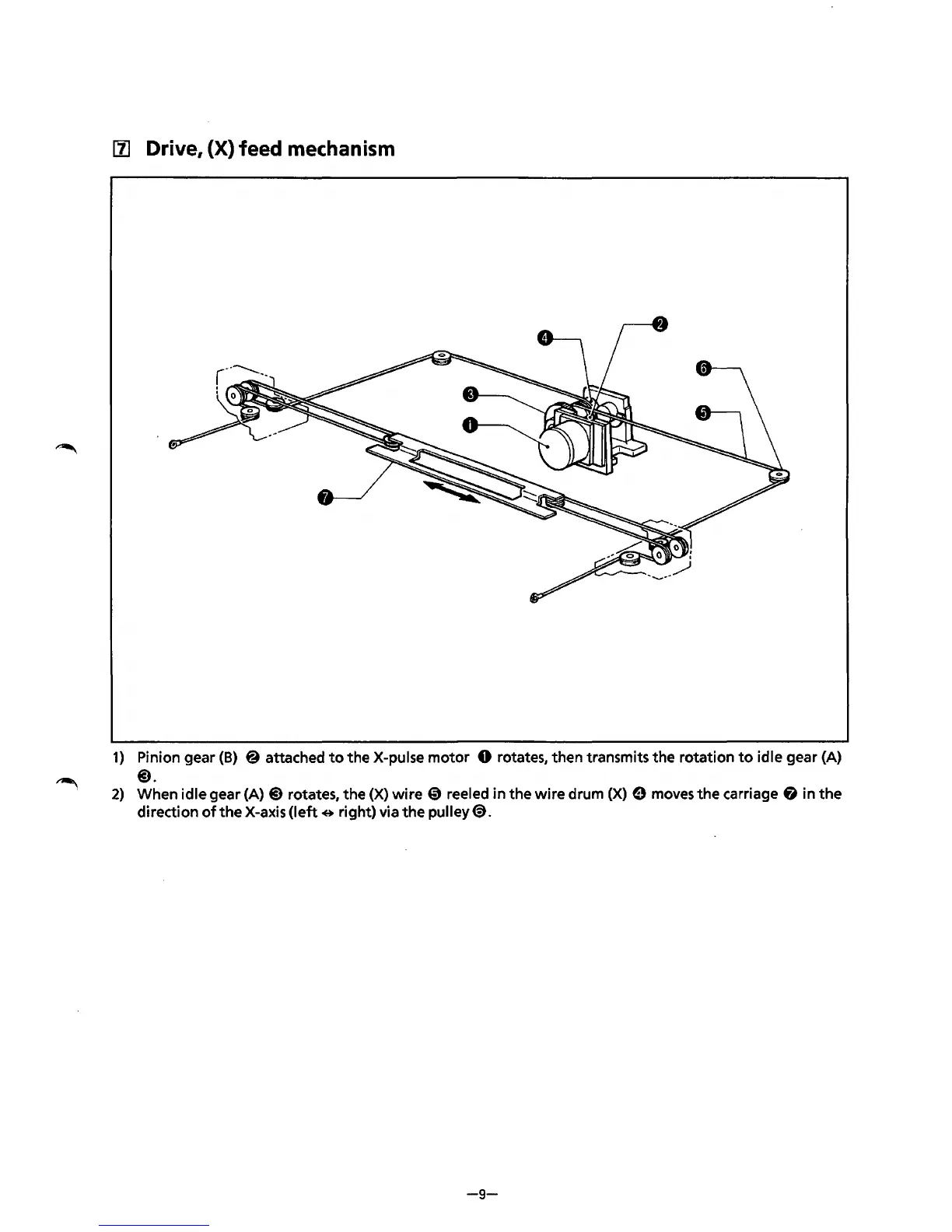

Drive, (X) feed mechanism
1)
Pinion gear
(B)
@ attached
to
the X-pulse motor 0 rotates, then transmits the rotation
to
idle gear (A)
@).
2)
When idle gear (A)@) rotates, the (X) wire
CD
reeled in the wire drum
(X)
e moves
the
carriage & in
the
direction
of
the
X-axis
(left
e right) via
the
pulley
<9.
-9-
From the library of: Superior Sewing Machine & Supply LLC
