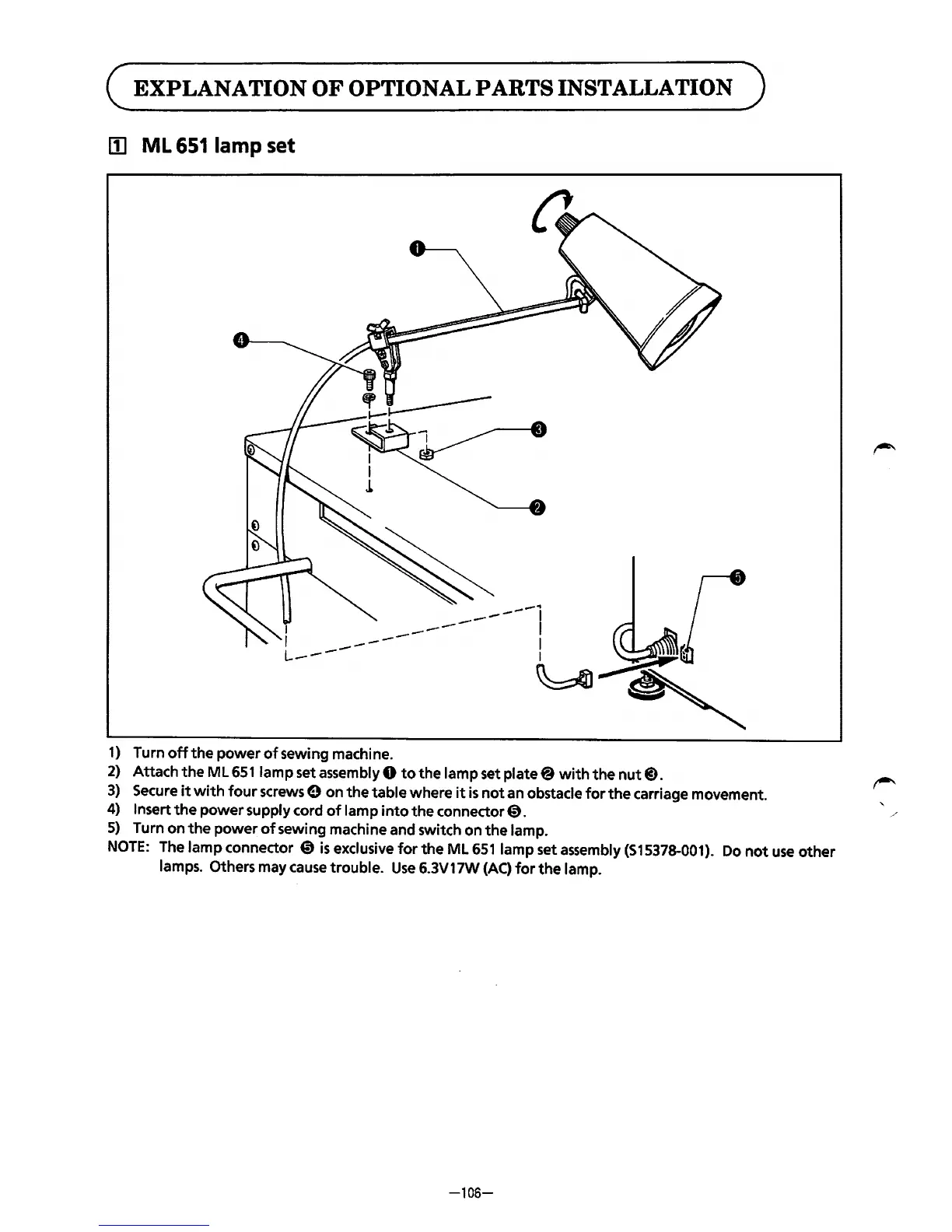

EXPLANATION
OF
OPTIONAL PARTS INSTALLATION
[!]
ML
651
lamp
set
_____
....
----j
---
I
--
--
1) Turn
off
the
power
of
sewing machine.
2)
Attach
the
ML6511ampsetassembly0
to
the lamp set
plate@
with
the
nut@).
3)
Secure
it
with
four
screws e on the table where
it
is
not
an obstacle
for
the
carriage movement.
4)
Insert
the
power
supply cord
of
lamp
into
the
connector
0.
5)
Turn on
the
power
of
sewing machine and switch on
the
lamp.
NOTE:
The lamp connector 0
is
exclusive
for
the
ML
651
lamp set assembly (515378-001).
Do
not
use
other
lamps. Others may
cause
trouble.
Use
6.3V17W
(AC)
for
the
lamp.
