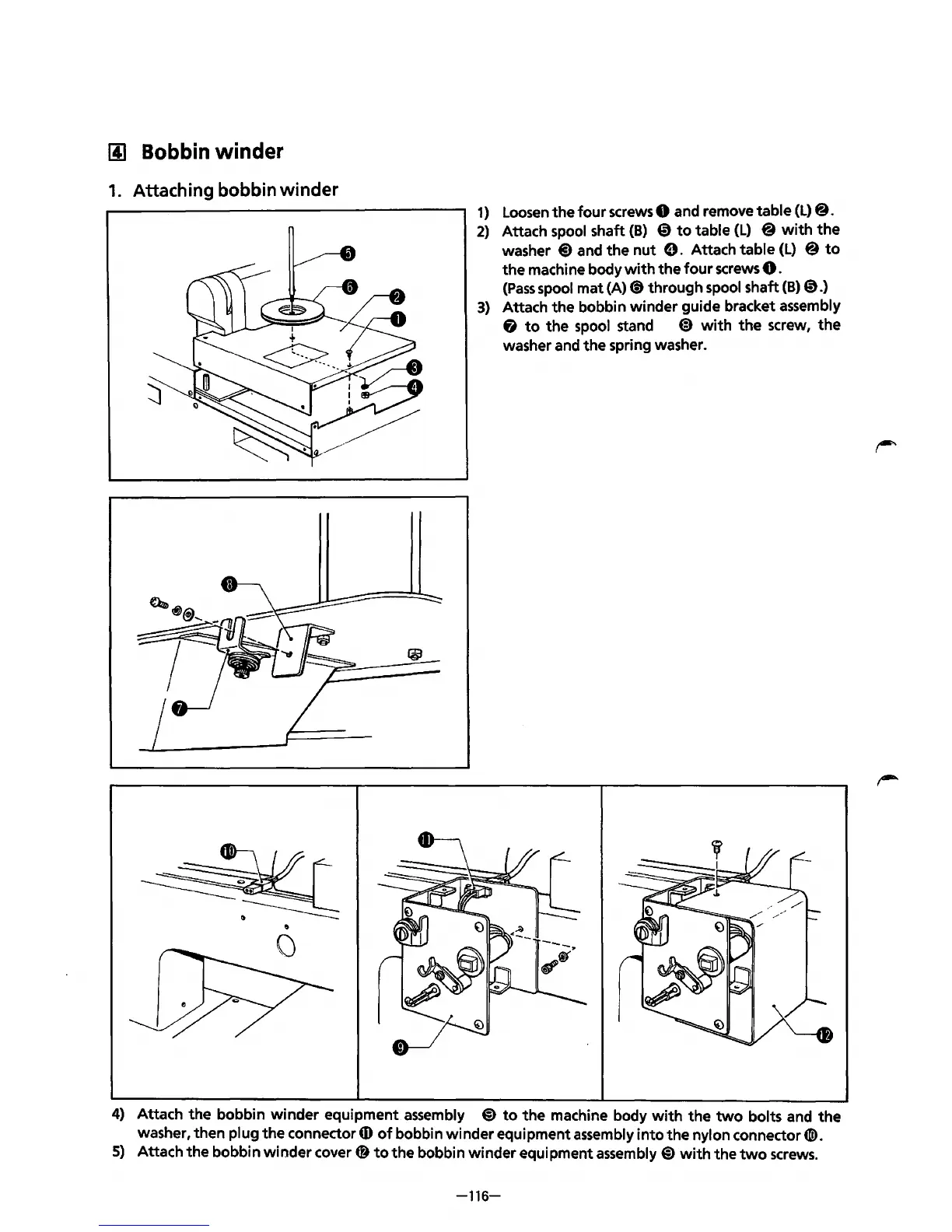

[II Bobbin winder
1. Attaching bobbin winder
1) Loosen the four screws 0 and remove table (L) @.
2) Attach spool shaft (B) 0 to table (L) @ with the
washer @) and the nut 8. Attach table (L) @ to
the machine body with the four screws 0.
(Pass spool mat (A) @) through spool shaft (B) 0 .)
3) Attach the bobbin winder guide bracket assembly
& to the spool stand @) with the screw, the
washer and the spring washer.
4) Attach the bobbin winder equipment assembly @)to the machine body with the two bolts and the
washer, then plug the connector ID of bobbin winder equipment assembly into the nylon connector en>.
5) Attach the bobbin winder cover c» to the bobbin winder equipment assembly@) with the two screws.
-116-
