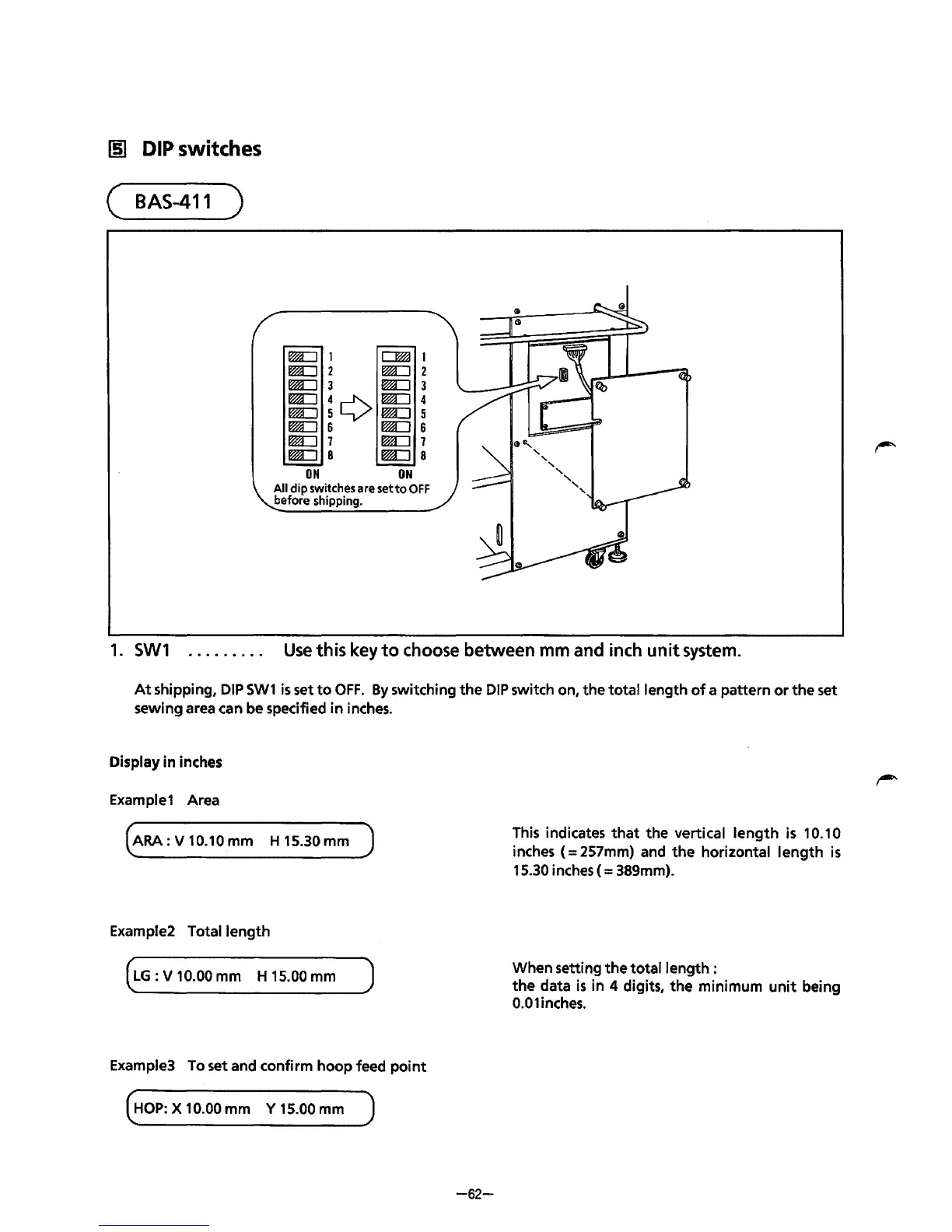

1§1 DIP switches
( BAS-411 )
~ ~1
~ ~2
~3 ~3
Fm:J 4 ~ Fm:J 4
~ 5LV ~ s
fmC~ 6 fmC~ 6
m:::J 1 m:::J 1
~8 ~8
ON ON
All dip switches are setto OFF
before shipping.
1. SW1
Use this key to choose between mm and inch unit system.
At shipping, DIP SW1 is set to OFF. By switching the DIP switch on, the total length of a pattern or the set
sewing area
can be specified in inches.
Display in inches
Example1 Area
(ARA: V 10.10mm H 15.30mm )
Example2 Totallength
(LG: V 10.00 mm H 15.00 mm J
Example3 To set and confirm hoop feed point
(HoP: X 10.00 mm Y 15.00 mm J
-62-
This indicates that the vertical length is 10.10
inches ( = 257mm) and the horizontal length is
15.30 inches ( = 389mm).
When setting the total
length:
the data is in 4 digits, the minimum unit being
0.01inches.
