Brother BAS-415 User Manual

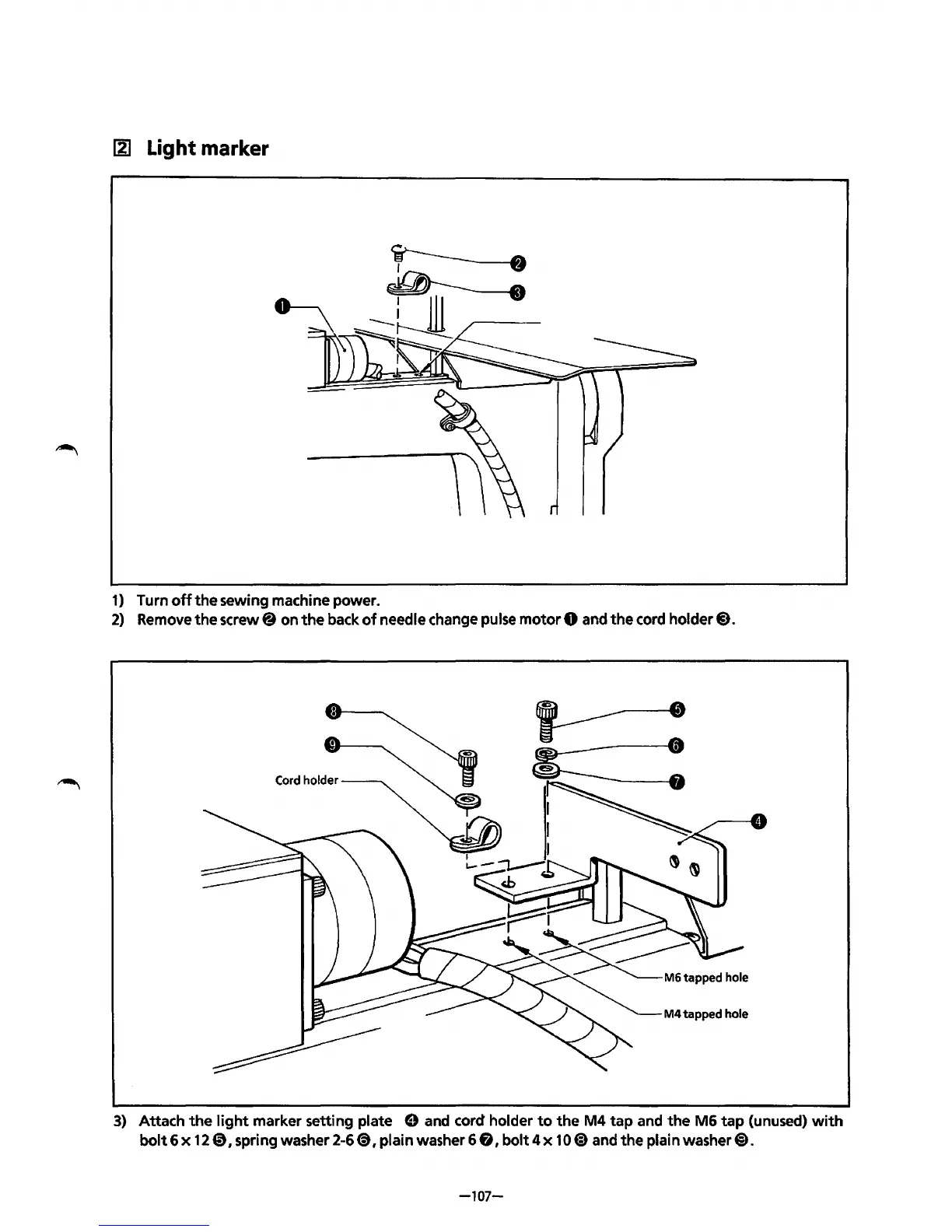

[21 Light marker
1) Turn off the sewing machine power.
2) Remove the screw@ on the back of needle change pulse motor 0 and the cord holder 8.
Cord holder--
M4 tapped hole
3) Attach the light marker setting plate 8 and cord holder to the M4 tap and the M6 tap (unused) with
bolt 6 x 12@
1
spring washer 2-6@)
1
plain washer 6 8 I bolt 4 x 10@) and the plain washer 8.
-107-
From the library of: Superior Sewing Machine & Supply LLC
