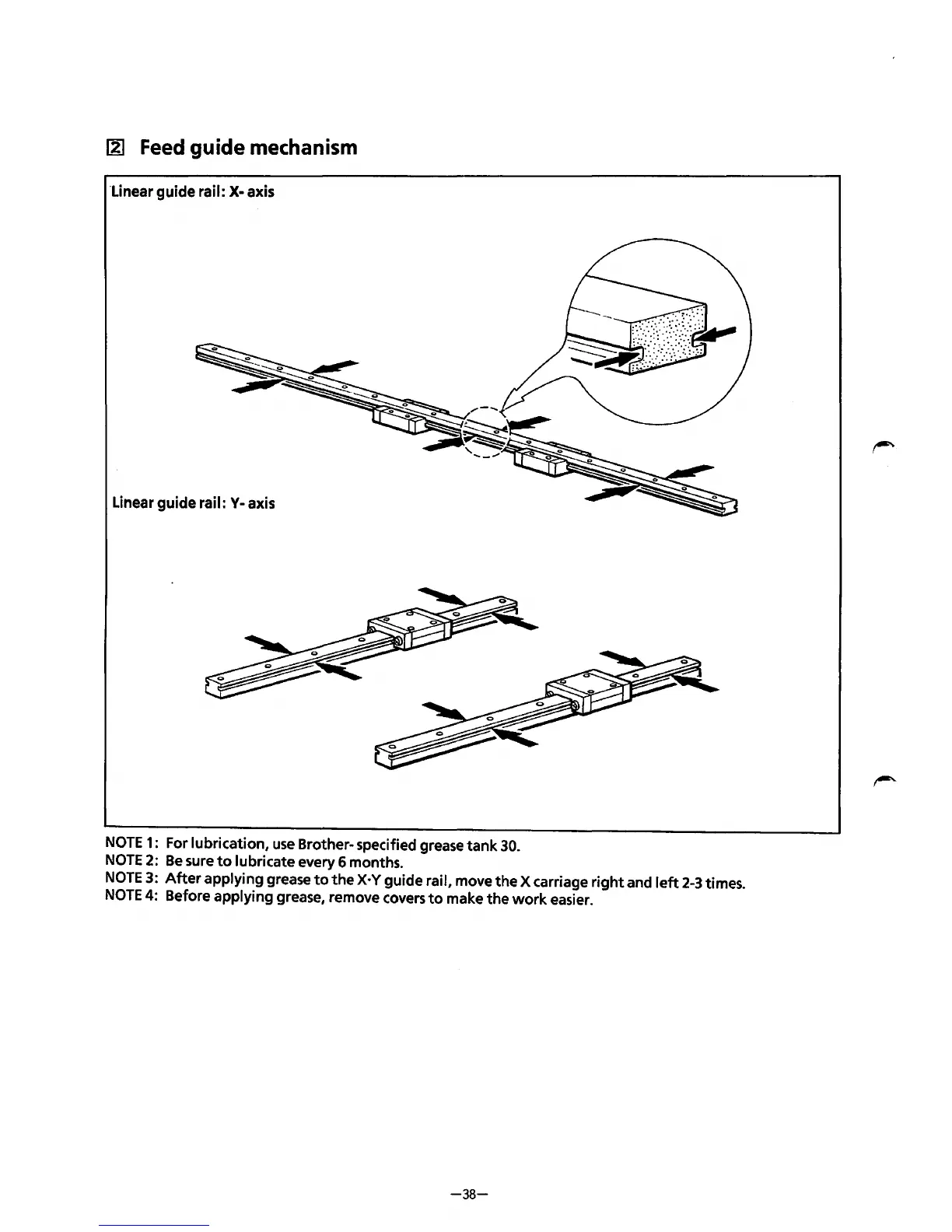

Feed
guide
mechanism
linear
guide rail: X· axis
Linear guide
rail: Y· axis
NOTE
1: For
lubrication,
use
Brother-specified grease
tank
30.
NOTE
2:
Be
sure
to
lubricate every 6 months.
NOTE
3:
After
applying
grease
to
the
X·Y
guide
rail, move
the
X carriage
right
and
left
2-3 times.
NOTE
4: Before
applying
grease, remove covers
to
make
the
work
easier.
-38-
