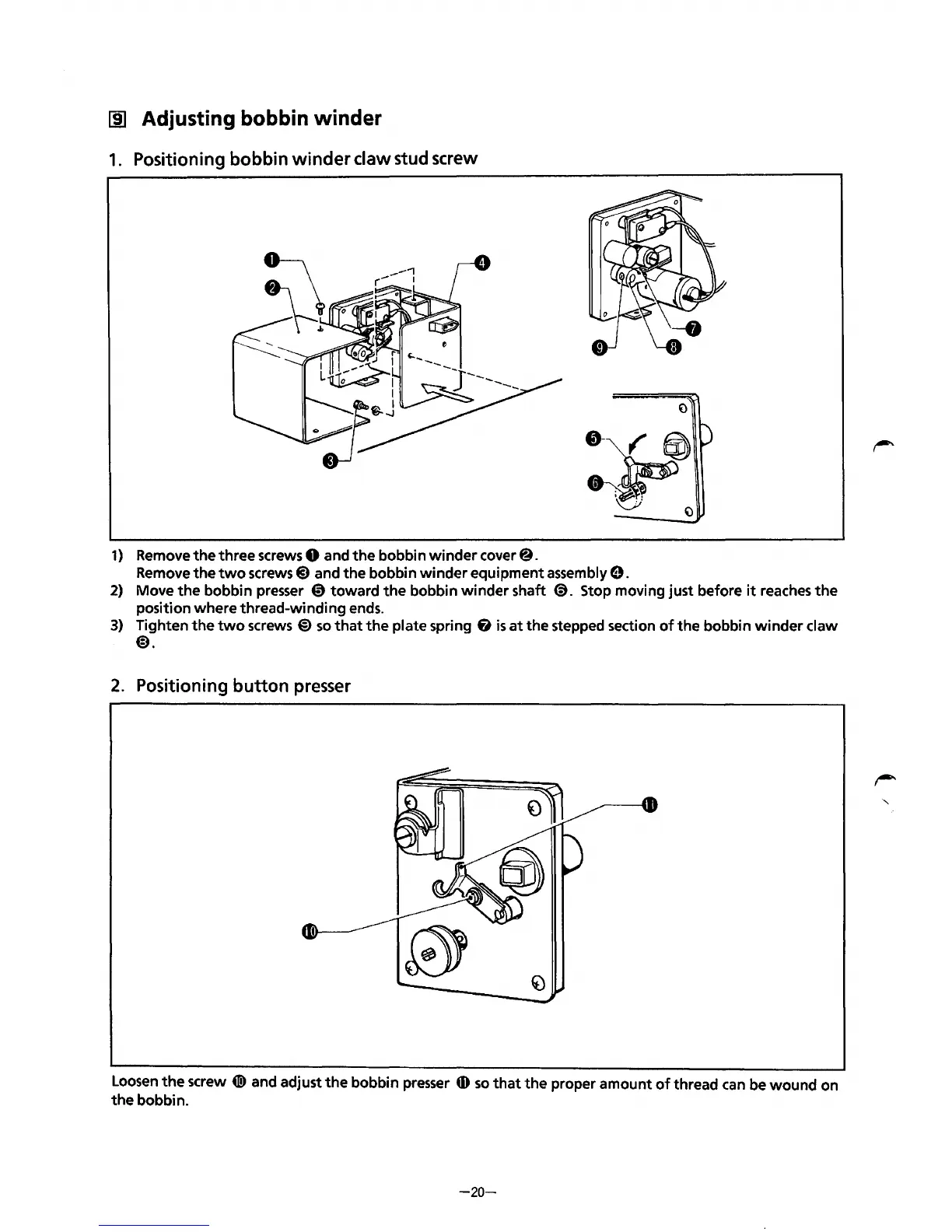

[j] Adjusting bobbin winder
1. Positioning bobbin winder claw stud screw
1) Remove the three screws 0 and the bobbin winder cover@.
Remove the two screws 8 and the bobbin winder equipment assembly 9.
2) Move the bobbin presser @)toward the bobbin winder shaft <9. Stop moving just before it reaches the
position where thread-winding ends.
3) Tighten the two screws @) so that the plate spring fi is at the stepped section of the bobbin winder claw
@).
2. Positioning button presser
Loosen the screw 41!) and adjust the bobbin presser tD so that the proper amount of thread can be wound on
the bobbin.
-20-
