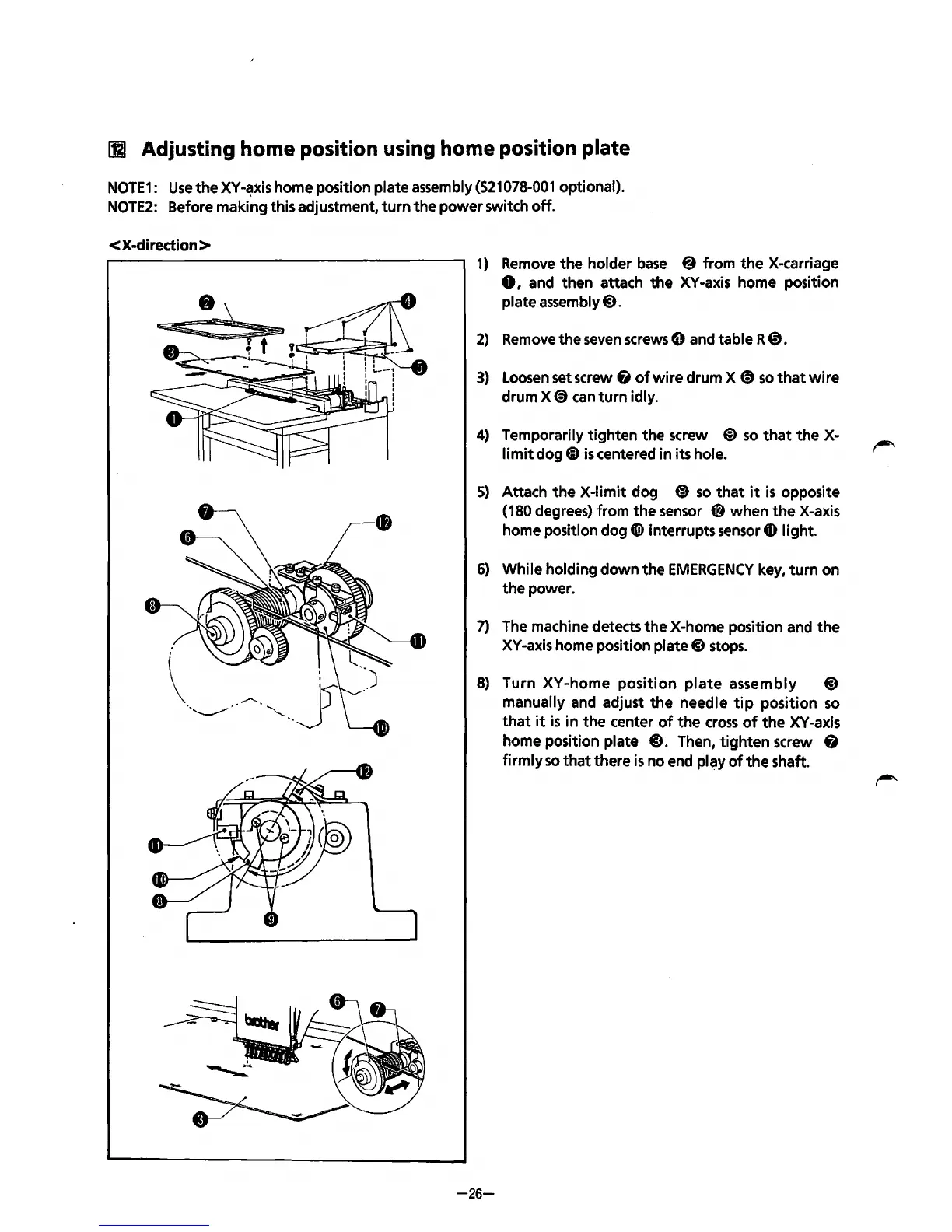

Ill Adjusting home position using home position plate
NOTE1: Use the XY-~xis home position plate assembly (521078-001 optional).
NOTE2: Before making this adjustment, turn the power switch off.
< X-direction >
1) Remove the holder base 8 from the X-carriage
0, and then attach the XY -axis home position
plate
assembly@).
2) Remove the seven screws 0 and table R 0.
3) Loosen set screw & of wire drum X <9 so that wire
drum X <9 can turn idly.
4) Temporarily tighten the screw @) so that the X-
limit dog~ is centered in its hole.
5) Attach the X-limit dog ~ so that it is opposite
(180 degrees) from the sensor CD when the X-axis
home position
dog([!) interrupts sensor 4D light.
6) While holding down the EMERGENCY key, turn on
the power.
7) The machine detects the X-home position and the
XY-axis home position plate@) stops.
8) Turn XY-home position plate assembly @)
-26-
manually and adjust the needle tip position so
that it is in the center of the cross of the XV -axis
home position plate
@). Then, tighten screw &
firmly so that there is no end play of the shaft.
