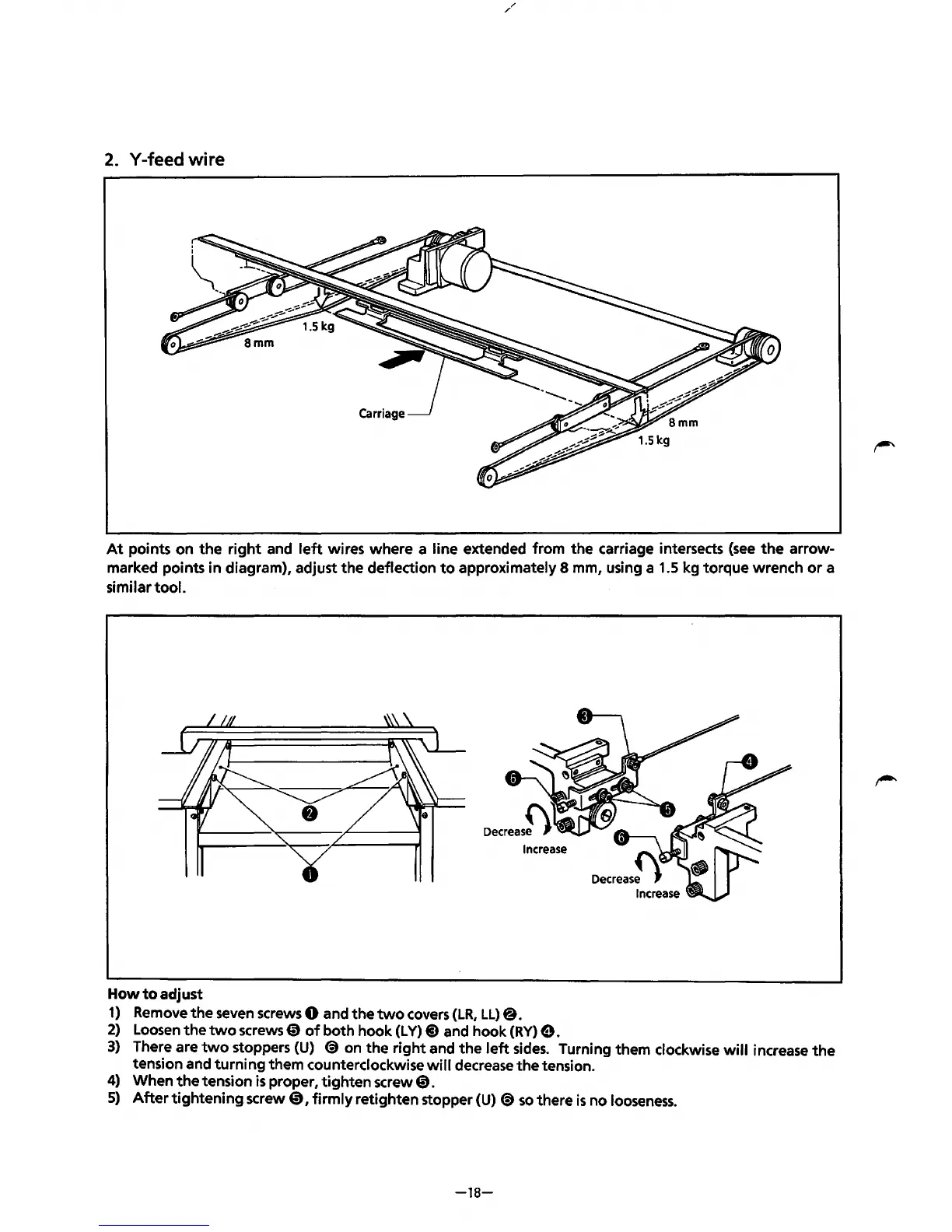

2.
Y-feed wire
At
points
on
the
right
and
left
wires where a line extended from
the
carriage intersects
(see
the
arrow-
marked points
in
diagram), adjust
the
deflection
to
approximately 8
mm,
using a 1.5 kg torque wrench
or
a
similar
tool.
How
to
adjust
1)
Remove
the
seven
screws 0 and
the
two
covers
(LR,
LL)
@.
2)
Loosen
the
two
screws
CD
of
both hook
(L
Y)
@)
and hook
(RY)
8.
3)
There are
two
stoppers
(U)
(S)
on
the
right
and
the
left
sides.
Turning them clockwise
will
increase
the
tension and
turning
them counterclockwise
will
decrease
the
tension.
4)
When
the
tension
is
proper,
tighten
screw@.
5)
After
tightening
screw@,
firmly
retighten stopper
(U)
(S)
so
there
is
no
looseness.
-18-
