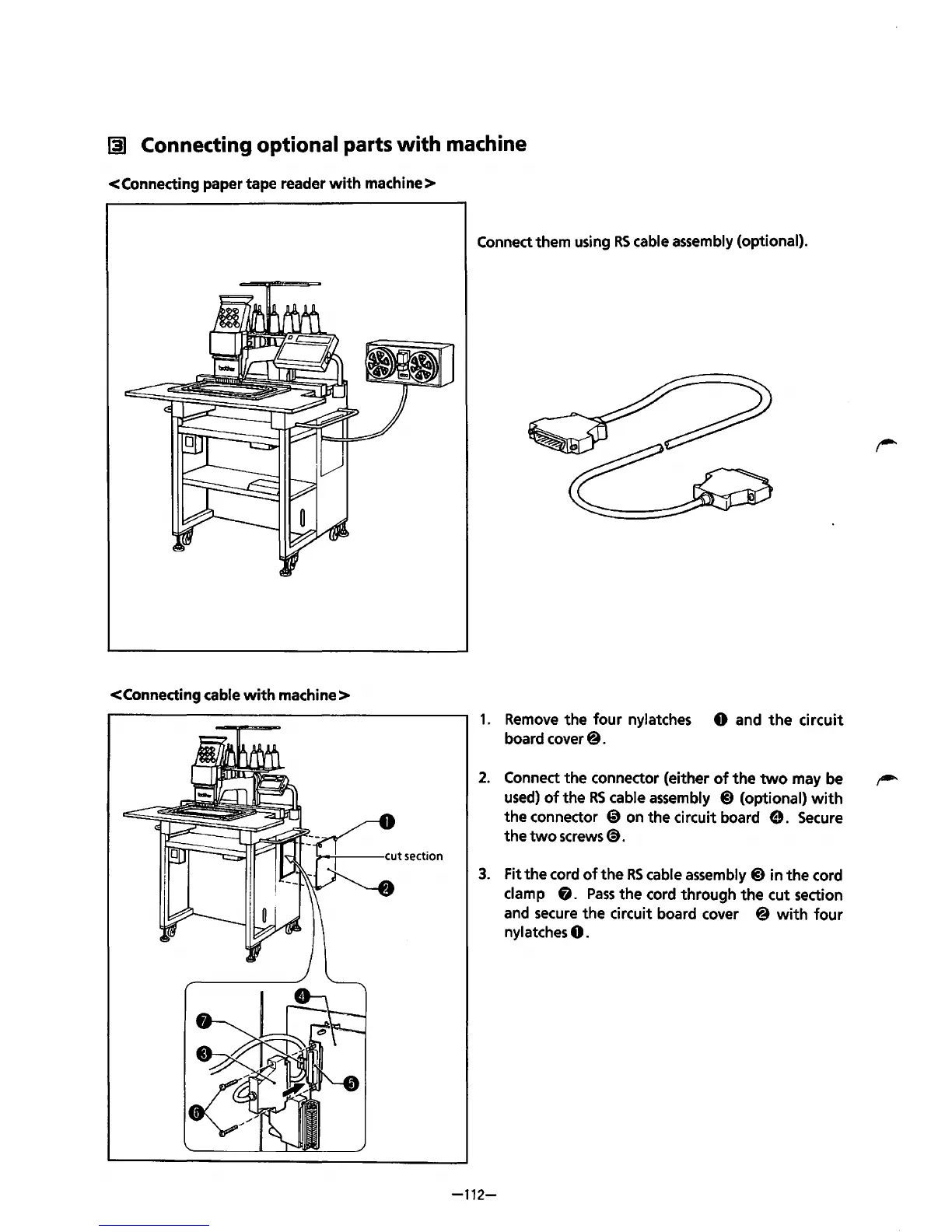

Connecting optional parts
with
machine
<Connecting paper tape reader
with
machine>
<Connecting cable
with
machine>
Connect them using
RS
cable assembly (optional).
1.
Remove
the
four
nylatches 0 and
the
circuit
board cover@.
2.
Connect
the
connector (either
of
the
two
may be
r:--
used)
of
the
RS
cable assembly
@)
(optional)
with
the
connector 0 on
the
circuit board
0.
Secure
the
two
screws
<9.
3.
Fit
the
cord
of
the
RS
cable assembly
@)
in
the
cord
clamp
fi.
Pass
the
cord through
the
cut section
and secure
the
circuit board cover @
with
four
nylatches
0.
-112-
