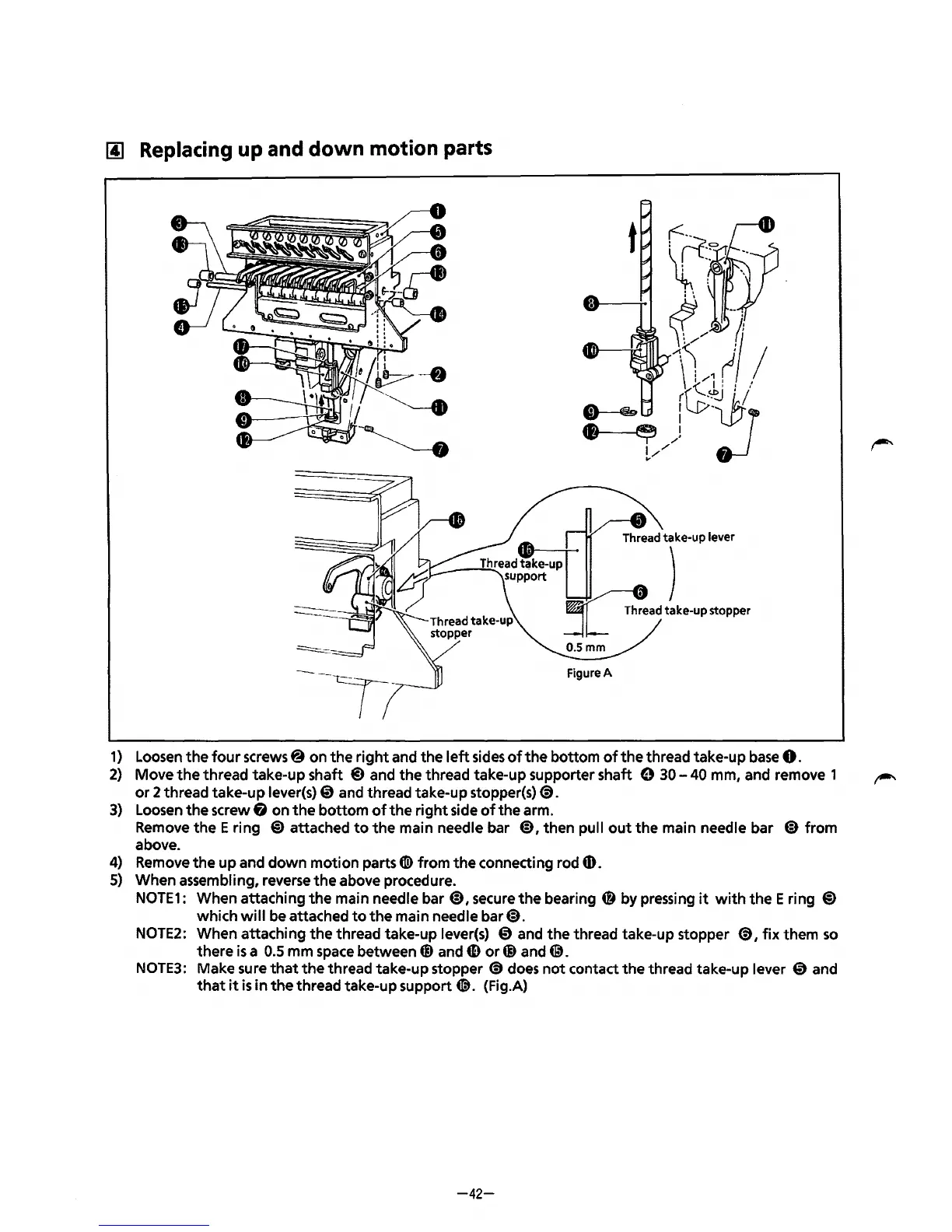

[j] Replacing up and
down
motion parts
1)
Loosen
the
four
screws@ on
the
right
and
the
left
sides
of
the
bottom
of
the
thread take-up
base
0.
2)
Move
the
thread take-up shaft
@)
and
the
thread take-up supporter shaft 0
30-
40 mm, and remove 1
or
2 thread take-up lever(s) 0 and thread take-up stopper(s)
<9.
3)
Loosen
the
screw & on
the
bottom
of
the
right
side
of
the
arm.
Remove
theE
ring @)attached
to
the
main needle bar
@,then
pull
out
the
main needle bar
@from
above.
4)
Remove
the
up
and
down
motion parts
([i)
from
the
connecting rod
4D.
5)
When assembling, reverse
the
above procedure.
NOTE1:
When attaching
the
main needle
bar@,
secure
the
bearing
@by
pressing
it
with
theE
ring
@)
which
wi
II
be
attached
to
the
main needle bar@).
NOTE2:
When attaching
the
thread take-up lever(s) 0 and
the
thread take-up stopper
<9,
fix
them
so
there
is
a
0.5
mm
space
between
@)
and
tD
or@)
and
@.
NOTE3:
Make sure
that
the
thread take-up stopper
CD
does
not
contact
the
thread take-up lever 0 and
that
it
is
in
the
thread take-up support
@.
(Fig.A)
-42-
