Brother MFC-2712DN User Manual

3-7
Confidential

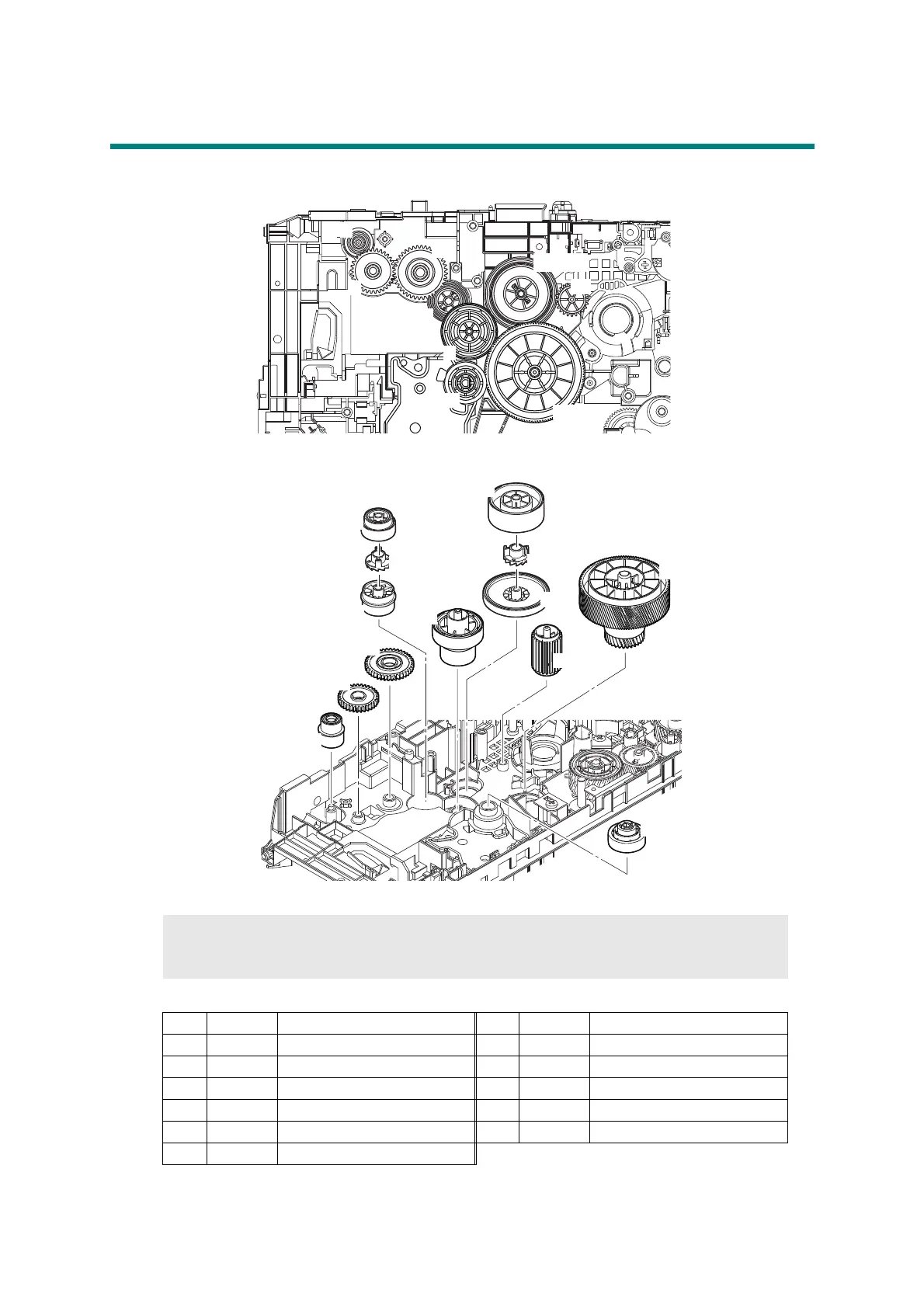

6. OVERVIEW OF GEARS
<Layout view>
Fig. 3-5
<Development view>
Fig. 3-6
<Name of gears>
* These parts are subject to change without notice.
Note:
• When handling gears, make sure that frame L faces up. Otherwise all gears come off.
1 D00AHW Ejector gear 16/15 8 D00HHK Gear 70R DEV
2 LY9006 Ejector gear 33 9 D00HHM Clutch DEV NON toner box
3 LY9005 Ejector gear 40 10 D00HHL Gear 55 DEV
4 D00ALK Gear oneway 35L/22 fuser 11 D00EFZ Gear DEV idle 24
5 D00ALM Clutch fuser 12 D00AKE Gear 115L 30L drum
6 D00ALL Gear oneway 20 fuser 13 D00AH4 Gear 47R DX
7 D00ALH Gear 64R/36R fuser
1
2
3
7
4,5,6
8,9,10
12
13
11
1
2
3
5
4
6
7
8
9
10
11
12
13
