3-57
Confidential
9.13.3 Touch panel ASSY
(1) Remove the four Taptite cup B M3x10 screws to remove the Panel key PCB presser from
the Panel unit.
(2) Disconnect the Touch panel flat cable from the Key PCB ASSY. Remove the Key PCB
ASSY from the Panel unit.
(3) Release each Lock to remove the Anti static plate from the Panel unit.
(4) Release the Touch panel plate from the Boss, and slide it in the direction of the arrow to
remove it from the Panel unit. Remove the LCD frame sheet from the Panel unit.
(5) Remove the Touch panel ASSY from the Panel unit.

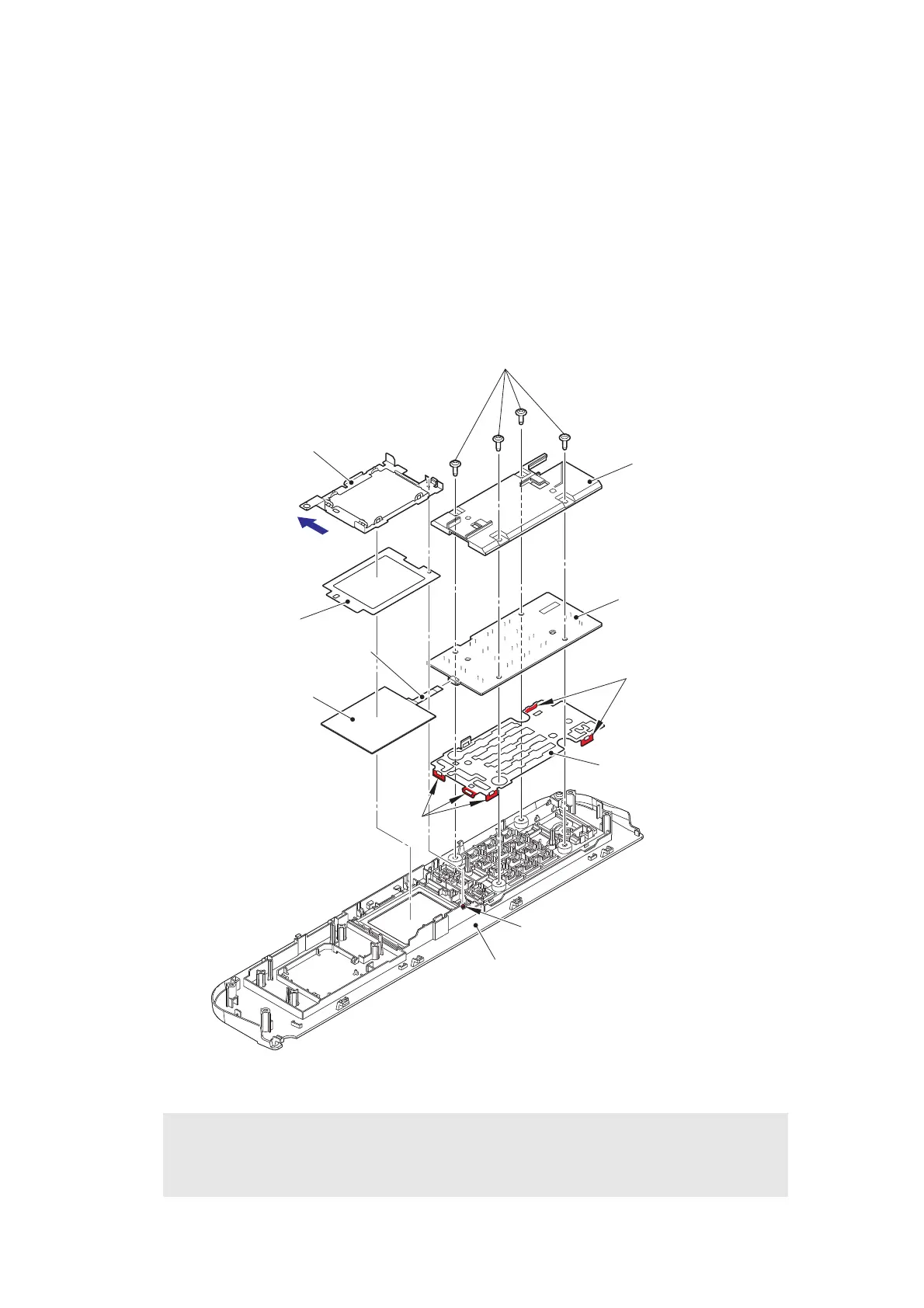

Fig. 3-49
Assembling Note:
• If you replaced the Touch panel ASSY, refer to “4. IF YOU REPLACE THE PANEL
UNIT OR PANEL CONTROL PCB” in Chapter 4 to configure settings.
Panel unit
Taptite cup B M3x10
Panel key PCB presser
Touch panel plate
Touch panel ASSY
Key PCB ASSY
Boss
Anti static plate
LCD frame sheet
Locks
Locks
Touch panel flat cable
