3-61
Confidential
9.15
Panel flat cable / First side CIS unit / First side CIS flat cable
(1) Remove the six Taptite bind B M4x12 screws to remove the Document scanner top cover
from the Document scanner bottom cover ASSY.
(2) Release the Panel flat cable from the securing fixtures, and remove it from the Document
scanner bottom cover ASSY.

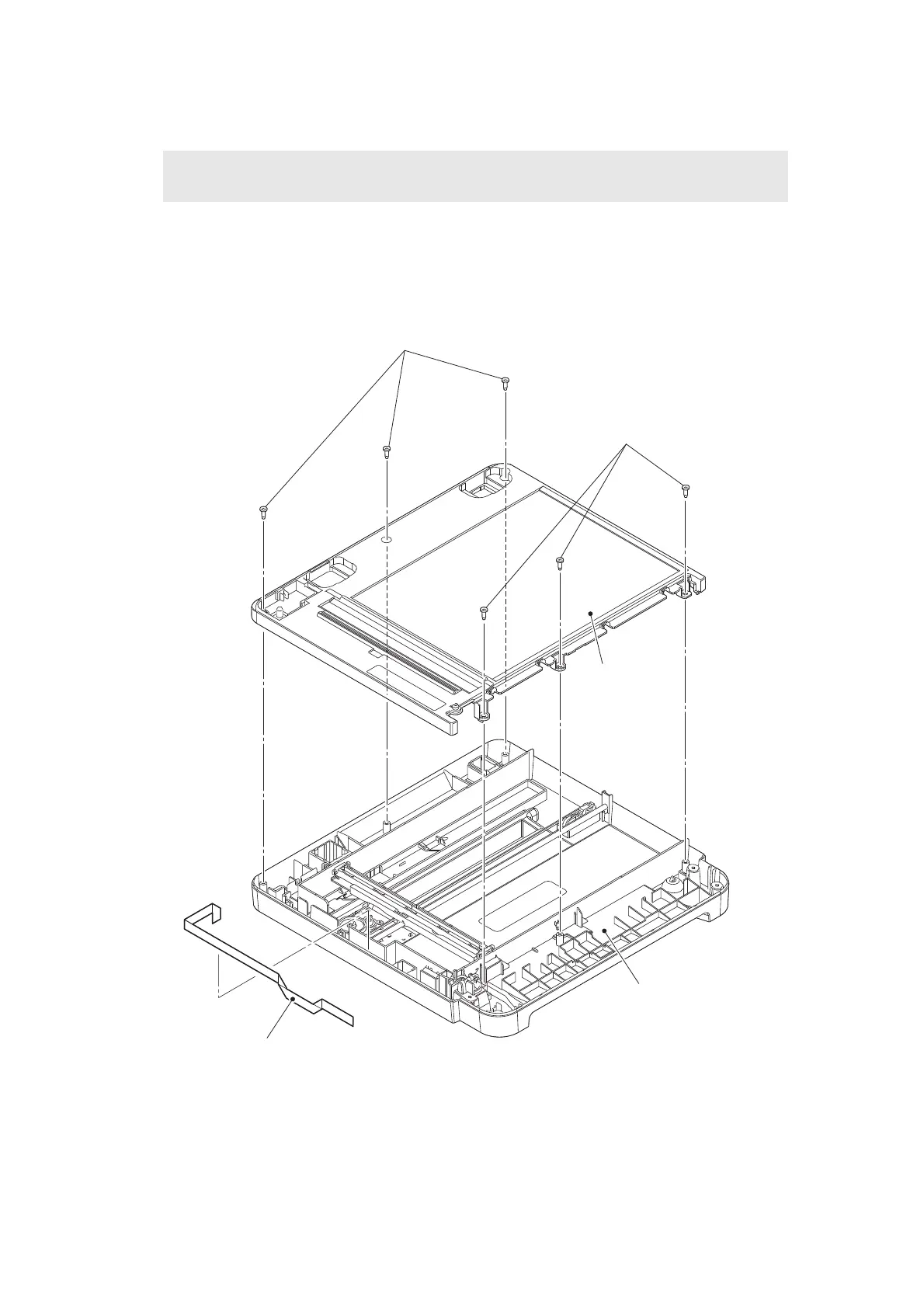

Fig. 3-53
Harness routing: Refer to “6. First side CIS unit, Panel”.
Note:
• Disassemble in a dust-free location.
Document
scanner top cover
Taptite bind B M4x12
Taptite bind B M4x12
Document scanner
bottom cover ASSY
Panel flat cable
To Next Page
