3-58

Confidential

9.14 Panel unit (For Non-touch panel models)

9.14.1 Panel unit

(1) Remove the four Taptite cup B M3x10 screws.

(2) Release each Hook to remove the Panel unit. Disconnect the Panel flat cable from the

Panel PCB ASSY.

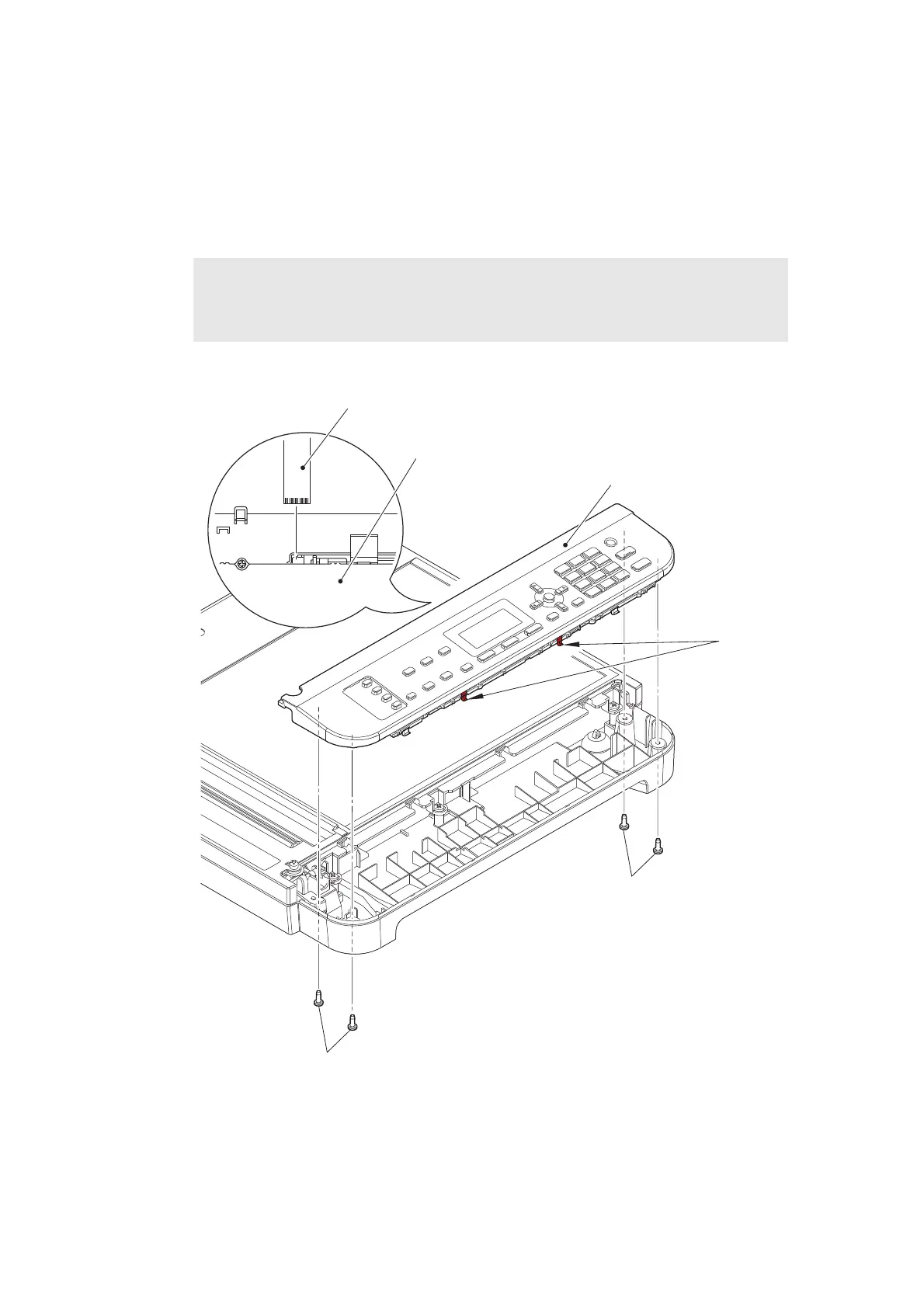

Fig. 3-50

Harness routing: Refer to “3. Document scanner unit”.

Note:

• When removing the Panel unit, DO NOT pull the Panel unit strongly because it is

connected to the Panel flat cable.

Taptite cup B M3x10

Hooks

Panel unit

Panel PCB ASSY

Panel flat cable
