3-70

Confidential

9.17 Joint cover ASSY

(1) Remove the four Taptite bind B M4x12 screws.

(2) Release the Hooks in order of the Hook A to D, and remove the Joint cover ASSY in the

direction of the arrow.

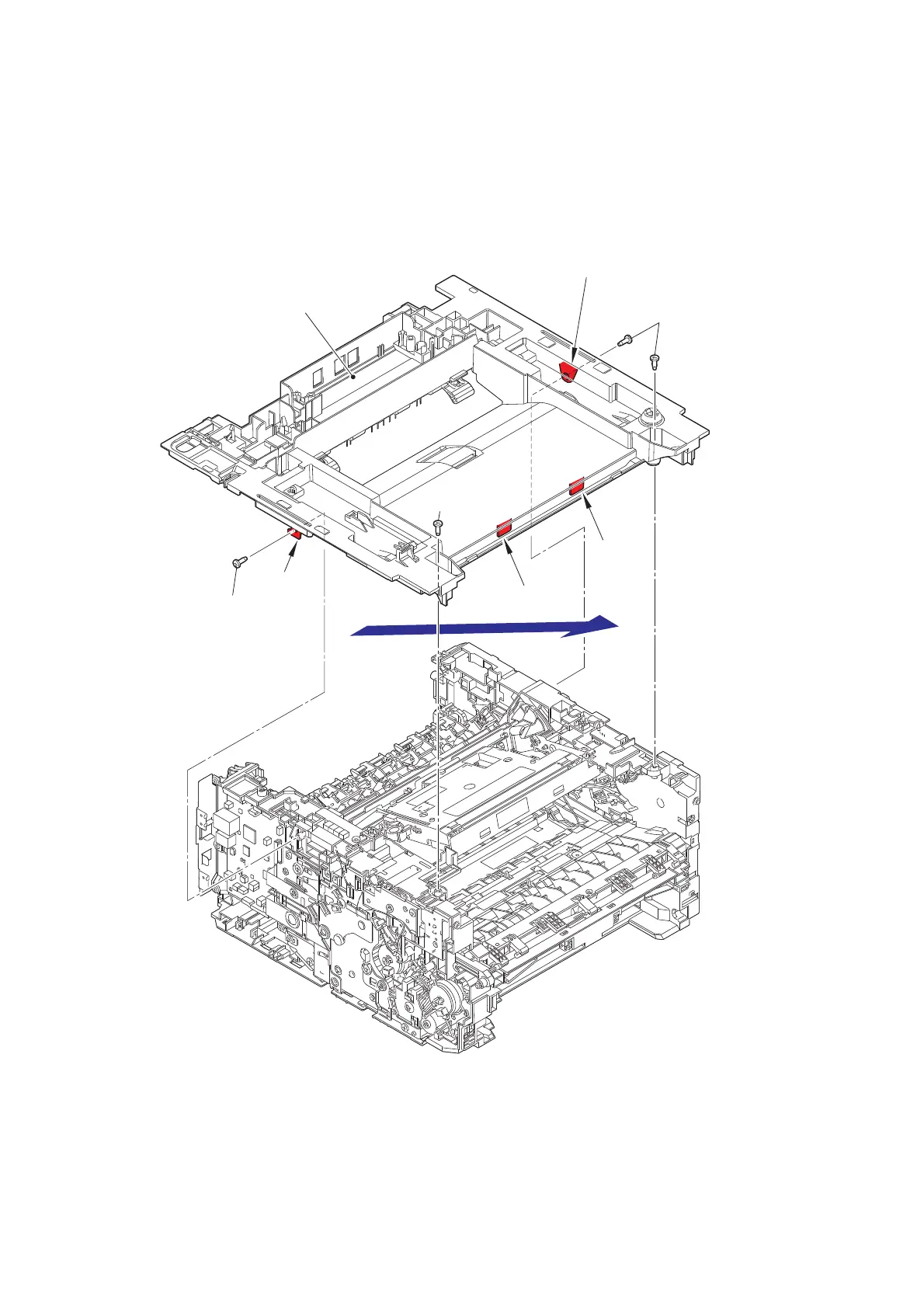

Fig. 3-63

Joint cover ASSY

Hook D

Hook C

Taptite bind B M4x12

Hook A

Hook B

Taptite bind

B M4x12
