2. OVERVIEW

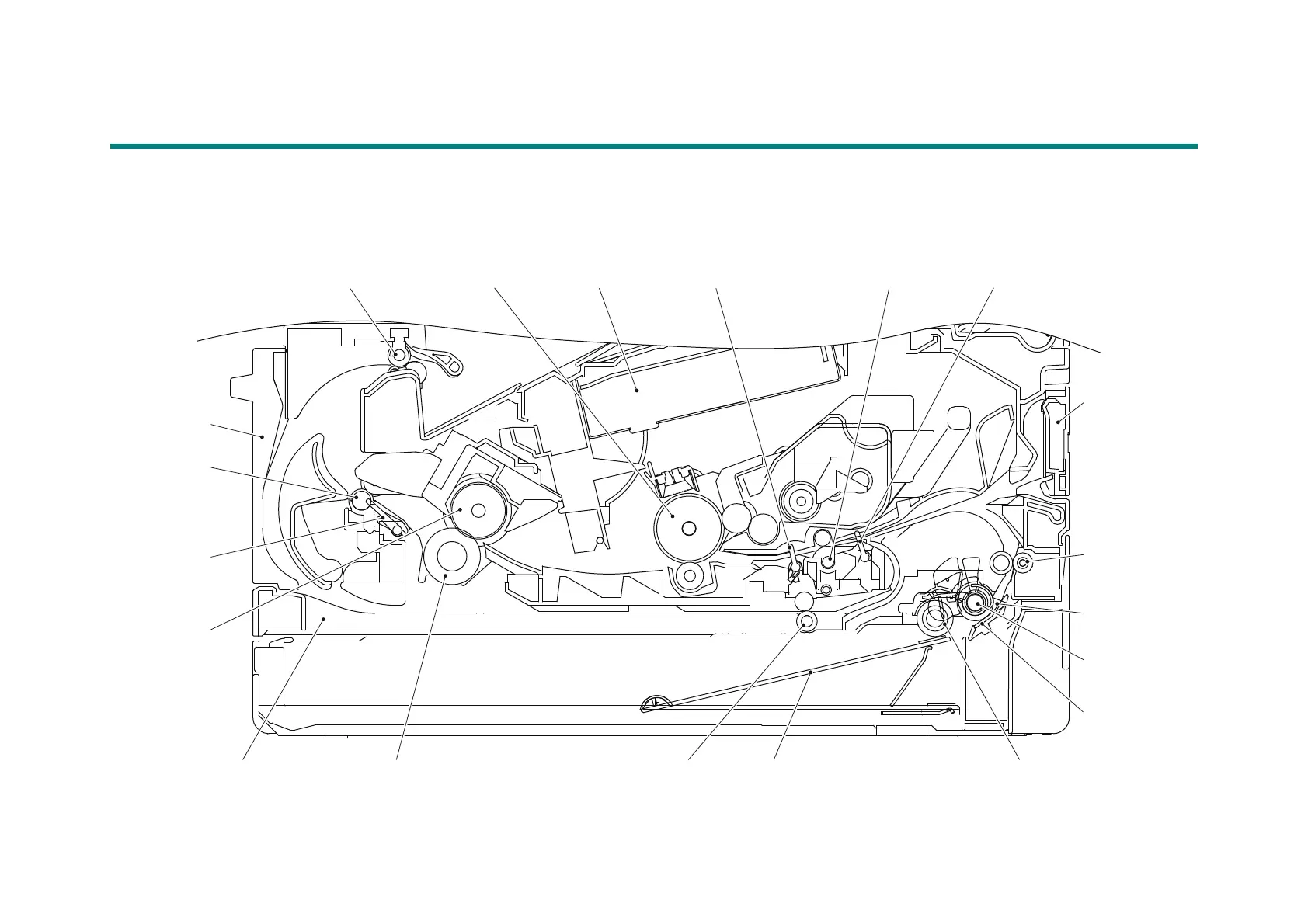

2.1 Cross-section Drawing

2.1.1 Printer part

 Manual feed slot models

Fig. 2-1

Eject roller 2 Exposure drum Laser unit Registration rear actuator

Registration front actuator

Manual feed

slot

Paper dust

cleaning roller

Paper feed

actuator

Paper pick up rollerPlateDuplex paper feed rollerPressure rollerDuplex tray

Heat roller

Back cover

Registration roller

Separation

roller

Separation

pad

Eject actuator

Eject roller 1
