3-27
Confidential
9.4 Outer chute ASSY

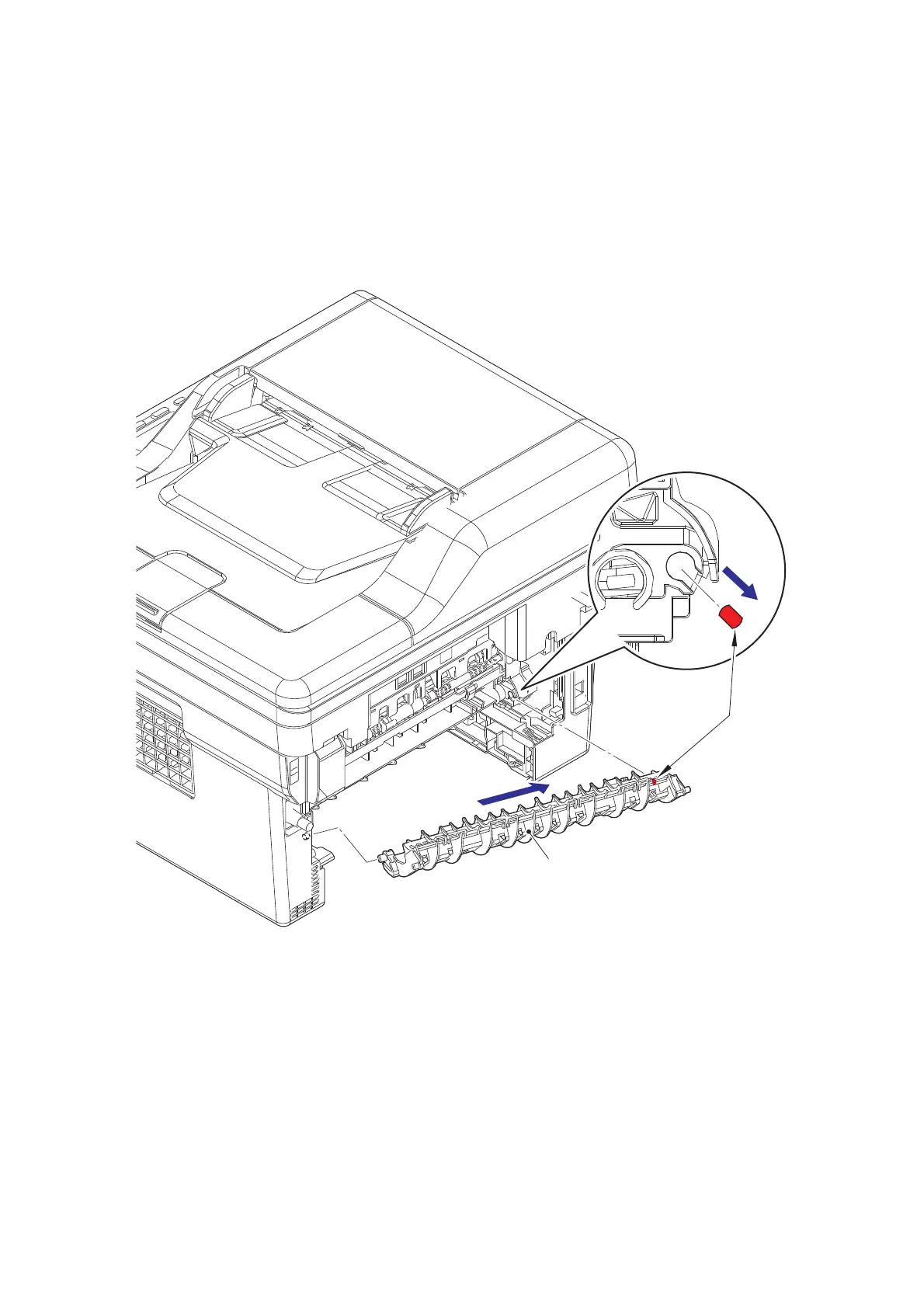

(1) Pull out the right side of the Outer chute ASSY in the direction of the arrow A to remove the
Boss of the Outer chute ASSY, and remove the Outer chute ASSY in the direction of the
arrow B.
Fig. 3-12
Boss
Outer chute ASSY
A
B
