3-34
Confidential
9.9 Side cover L / Speaker harness ASSY /
Handset holder ASSY
(For models with Handset)
(1) Remove the Taptite bind B M4x12 screw.
(2) Release the Hooks A, B, and the Hook C on the Side cover L in order of the arrow A to C,
and remove the Side cover L.
(3) Disconnect the Speaker harness ASSY from the Main PCB ASSY.
(4) Disconnect the Hook harness from the Main PCB ASSY. (For models with Handset)

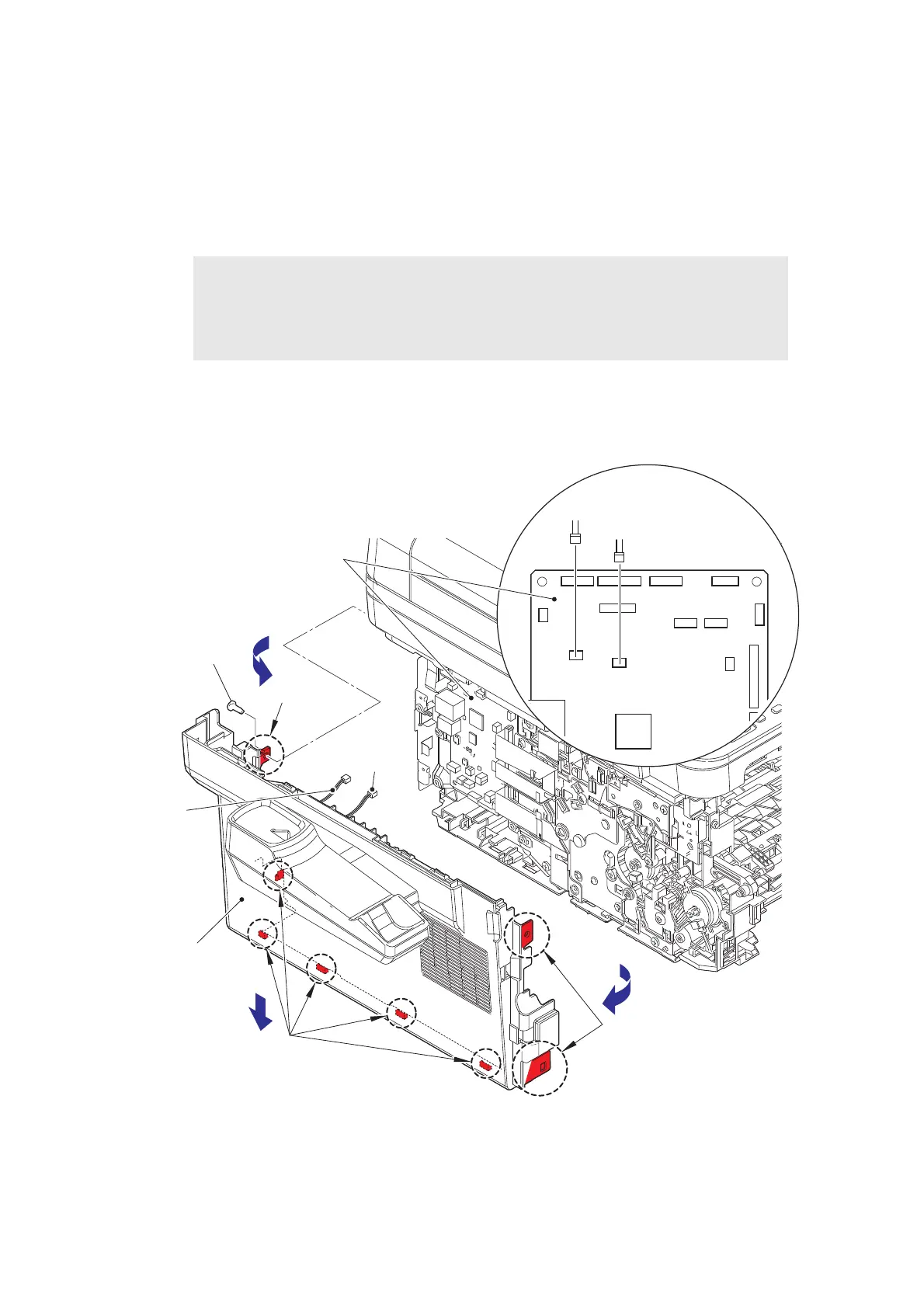

Fig. 3-21
Harness routing: Refer to “1. Handset holder ASSY, Speaker harness ASSY”.
Note:
• When removing the Side cover L, DO NOT pull the Side cover L strongly because
it is connected to the Speaker harness ASSY and the Hook harness (for models
with Handset).
Hooks A
Hooks B
Side cover L
Hook C
C
B
A
Taptite bind B
M4x12
Hook harness
Main PCB ASSY
Hook
harness
Speaker harness ASSY
Speaker
harness
ASSY
To Next Page
