5-104
Confidential
9.8.47
Motor Frame ASSY

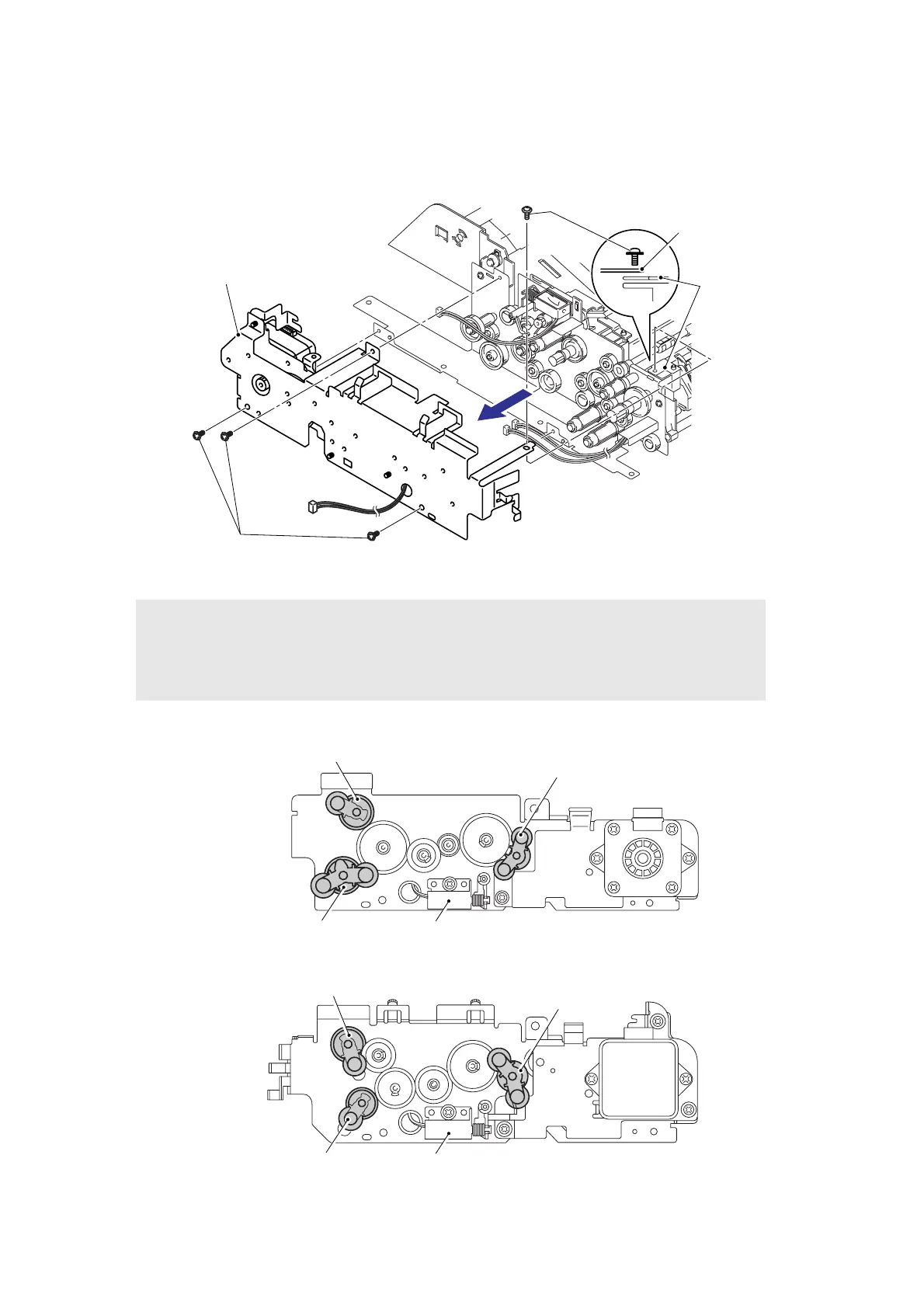

(1) Remove the three cup S M3x6SR Taptite screws and one cup S M3x10 Taptite screw,
and remove the Motor frame ASSY.
Fig. 5-110
Fig. 5-111
Assembling Note:
When assembling the Motor frame ASSY, ensure that the gears (indicated with gray)
are placed in the positions as shown in the figure below.
Check that the “A” part is the upper side of the Exit chute.
Taptite cup S M3x6SR
Motor frame ASSY
"A" part of the
Motor frame ASSY
Taptite cup S M3x10
Exit chute
Switch back flap planetary gear
Paper feed planetary gear
Pick up planetary gear
Pick up solenoide ASSY
Switch back flap planetary gear
<ADF unit gear layout drawing of the old type>
<ADF unit gear layout drawing of the new type>
Paper feed planetary gear
Pick up planetary gear
Pick up solenoide ASSY
