Brother MFC-8370DN Service Manual

5-106
Confidential
9.8.50 Exit Solenoid ASSY
(1) Release the Hook, and remove the Pick up planetary gear from the Shaft of the D frame
calking ASSY.
(2) Remove the cup S M3x6SR Taptite screw, and remove the Exit solenoid ASSY from the
D frame calking ASSY.
(3) Remove the Solenoid release spring from the Exit solenoid ASSY.
(4) Release the Hook, and remove the Exit solenoid lever from the Shaft of the D frame
calking ASSY.

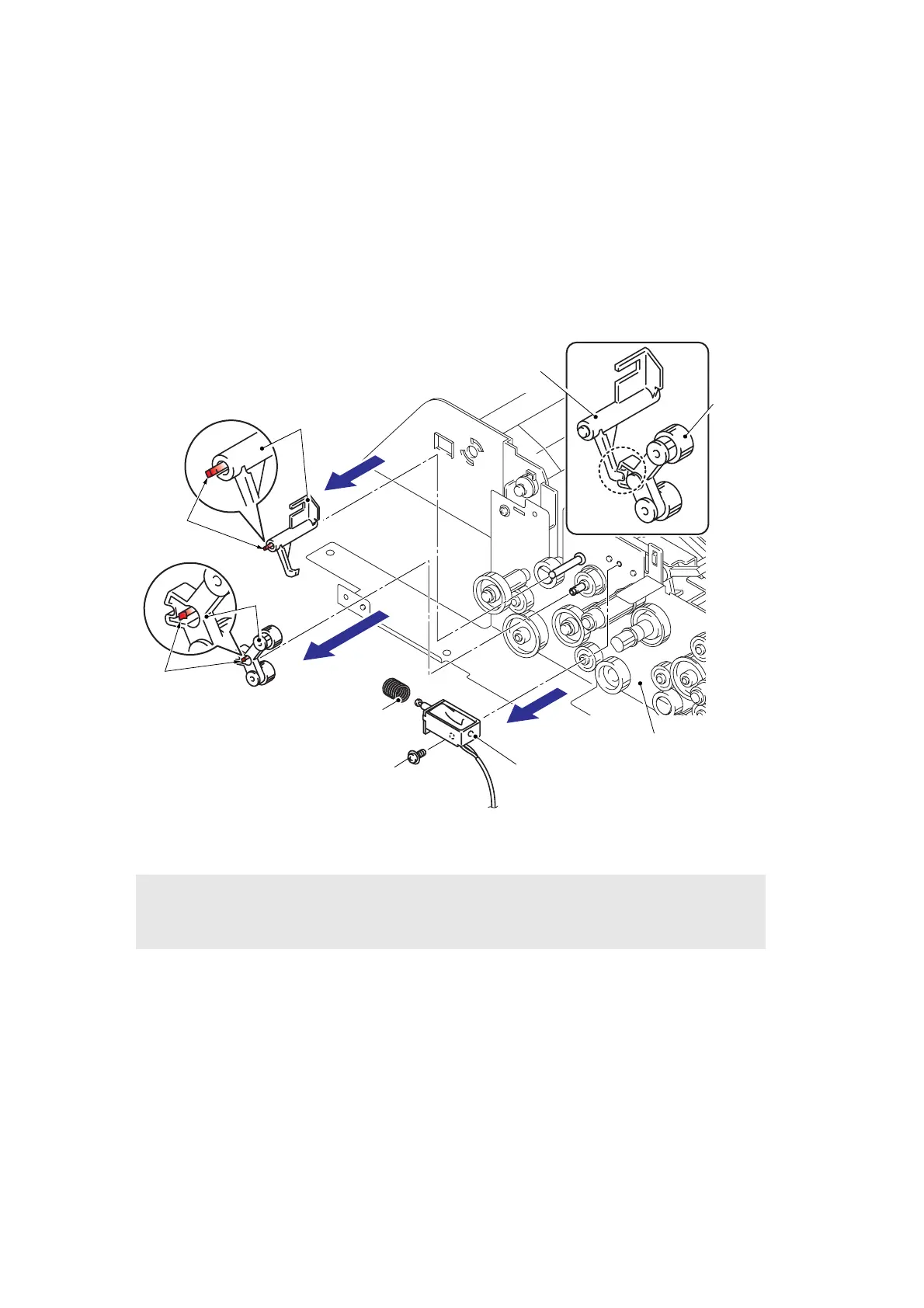

Fig. 5-114
Assembling Note:
• When assembling the Pick up planetary gear, and align the end of the Exit solenoid
lever with the notch on the Pick up planetary gear.
11
22
33
Solenoid release spring
Pick up
planetary gear
Pick up
planetary gear
Hook
Hook
Exit solenoid ASSY
Exit solenoid lever
Exit solenoid lever
D frame calking ASSY
Taptite cup S M3x6SR
