Brother MFC-8370DN Service Manual

5-221
Confidential
9.44 Regist Actuator Rear / Regist Actuator Spring
(1) Turn the Paper feed frame upside down.
(2) Release the Hook A of the Actuator cover to pull up the Actuator cover to remove.

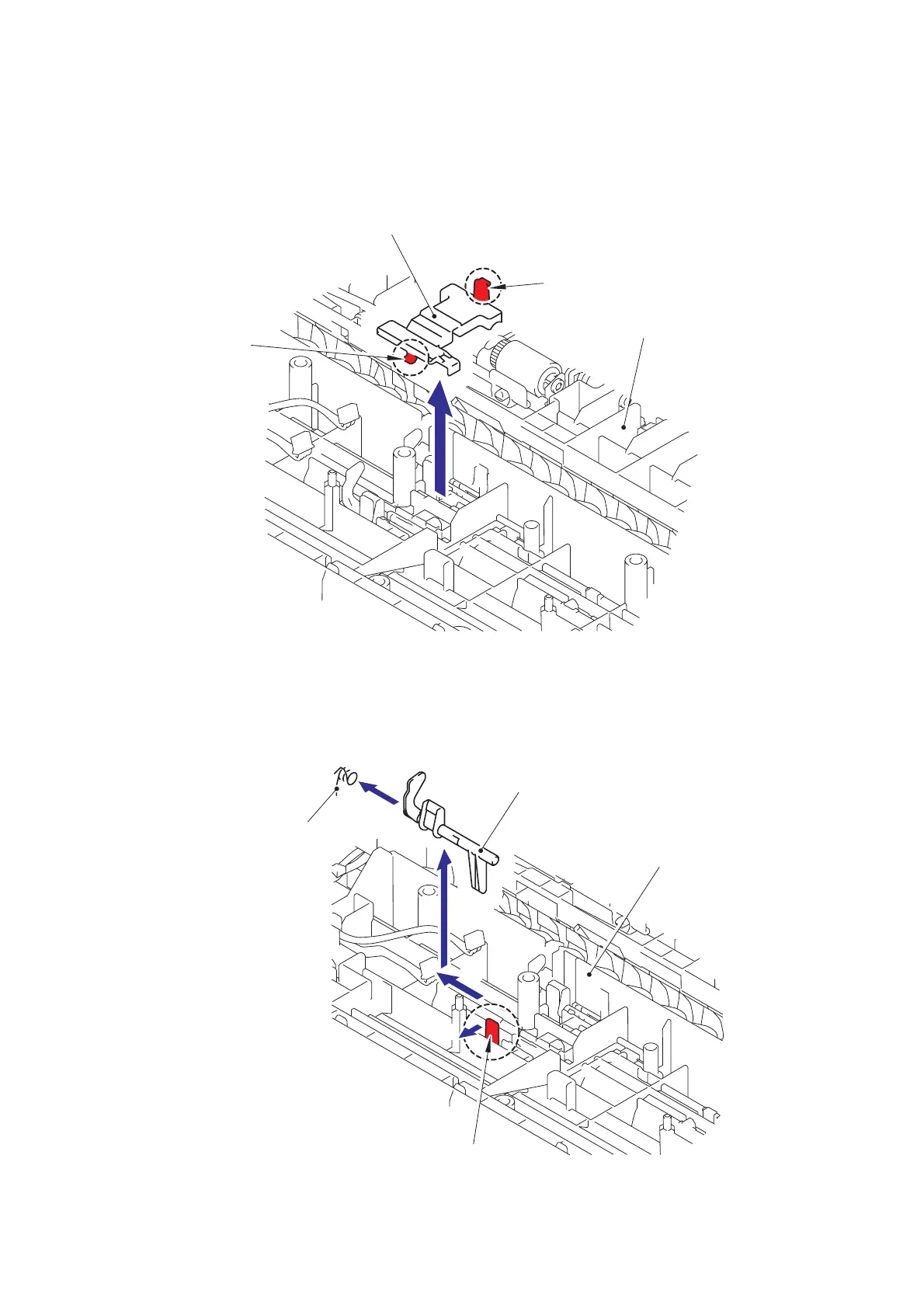

Fig. 5-278
(3) Slide the Regist actuator rear to the direction of 3b while pressing the Hook to the
direction of 3a and pull up the Regist actuator rear to remove. Then, remove the Regist
actuator spring from the Regist actuator rear.
Fig. 5-279
Hook A
Paper feed frame
Actuator cover
Hook B
Hook
Regist actuator rear
Paper feed frame
3b
3a
3c
3d
Regist actuator spring
