APPENDIX —————————————————————————————————————————————————————————
176
■ For the standard type

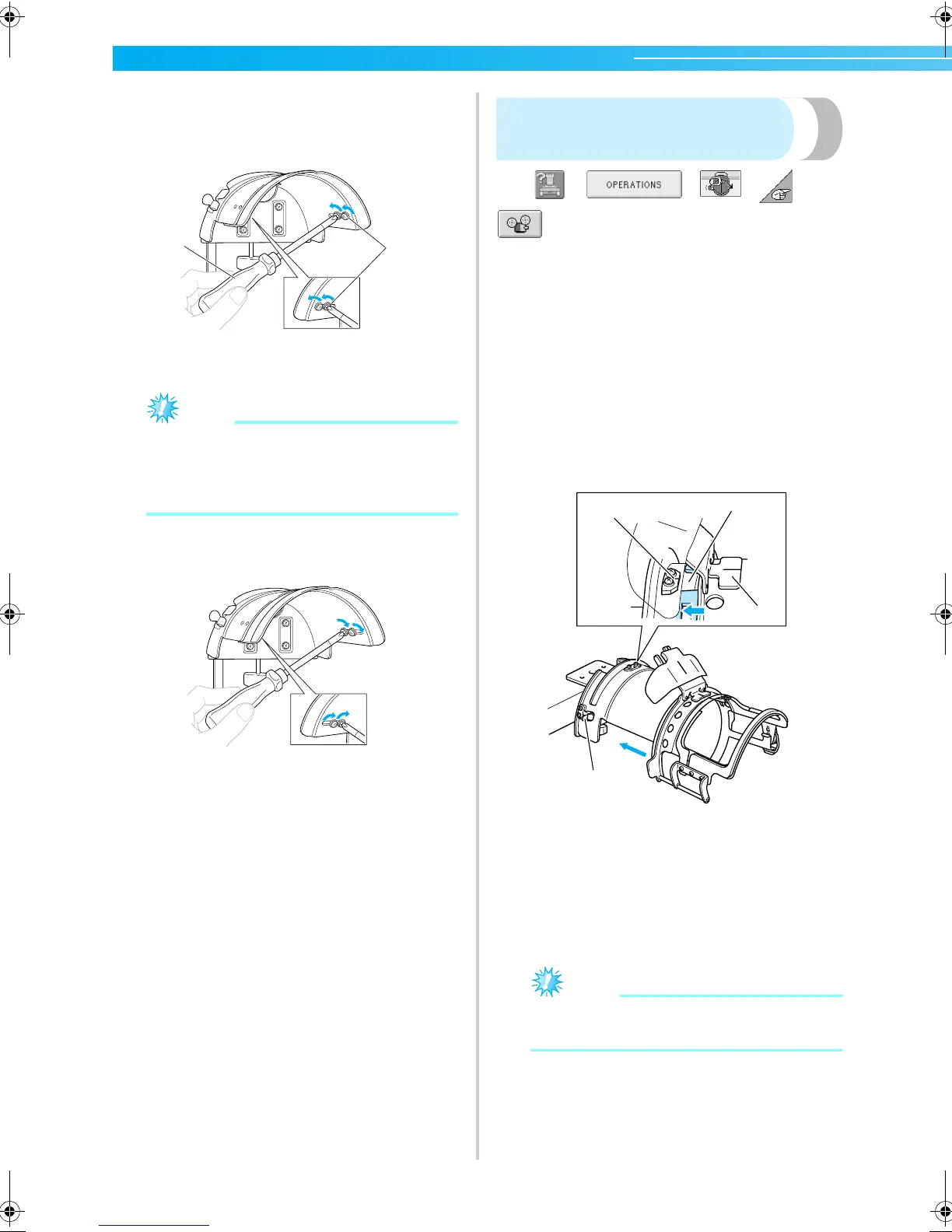

Using a Phillips screwdriver, turn the four screws
(two on the left and two on the right) at the inside
of the mounting jig one turn to loosen them.
1 Screws
2 Phillips screwdriver
Note
● Do not remove any of the four screws (two
on the left and two on the right); otherwise,
they may be lost. Only turn the screws to
slightly loosen them.
Pull the mounting jig toward you, and then use
the Phillips screwdriver to tighten the four screws
(two on the left and two on the right).
X This completes the preparation of the
mounting jig.
Attaching the standard cap frame to the
mounting jig and putting a cap into the frame
Press → →→→
in order to view a video of the operation on
the LCD (see page 151).
Put the cap into the standard cap frame attached to
the mounting jig, and then remove the standard cap
frame from the mounting jig with the cap clamped.
Next, attach the standard cap frame to the cap frame
driver on the machine.
1
Attach the standard cap frame to the
mounting jig.
Align the notch in the standard cap frame with
the guiding plate on the mounting jig, and then
snap the frame into place.
1 Guiding Plate on mounting jig
2 Notch on standard cap frame
3 Sweat guard holder
4 Holder
X The standard cap frame is secured with the
two holders (clips) one on right side and
one on left side.
Note
● Make sure that the mounting jig is set to the
standard position.
1
2
4
3
2
1
